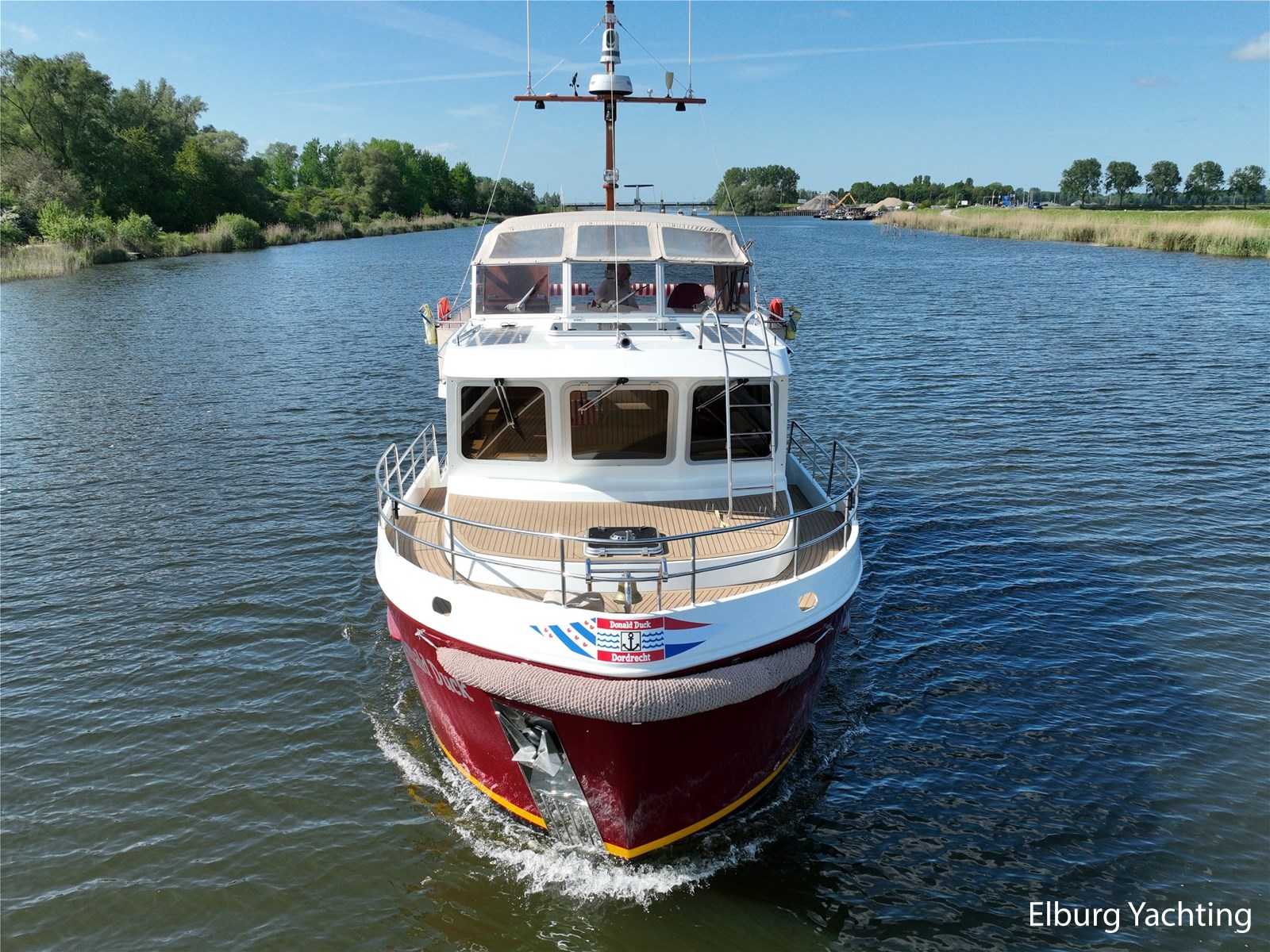

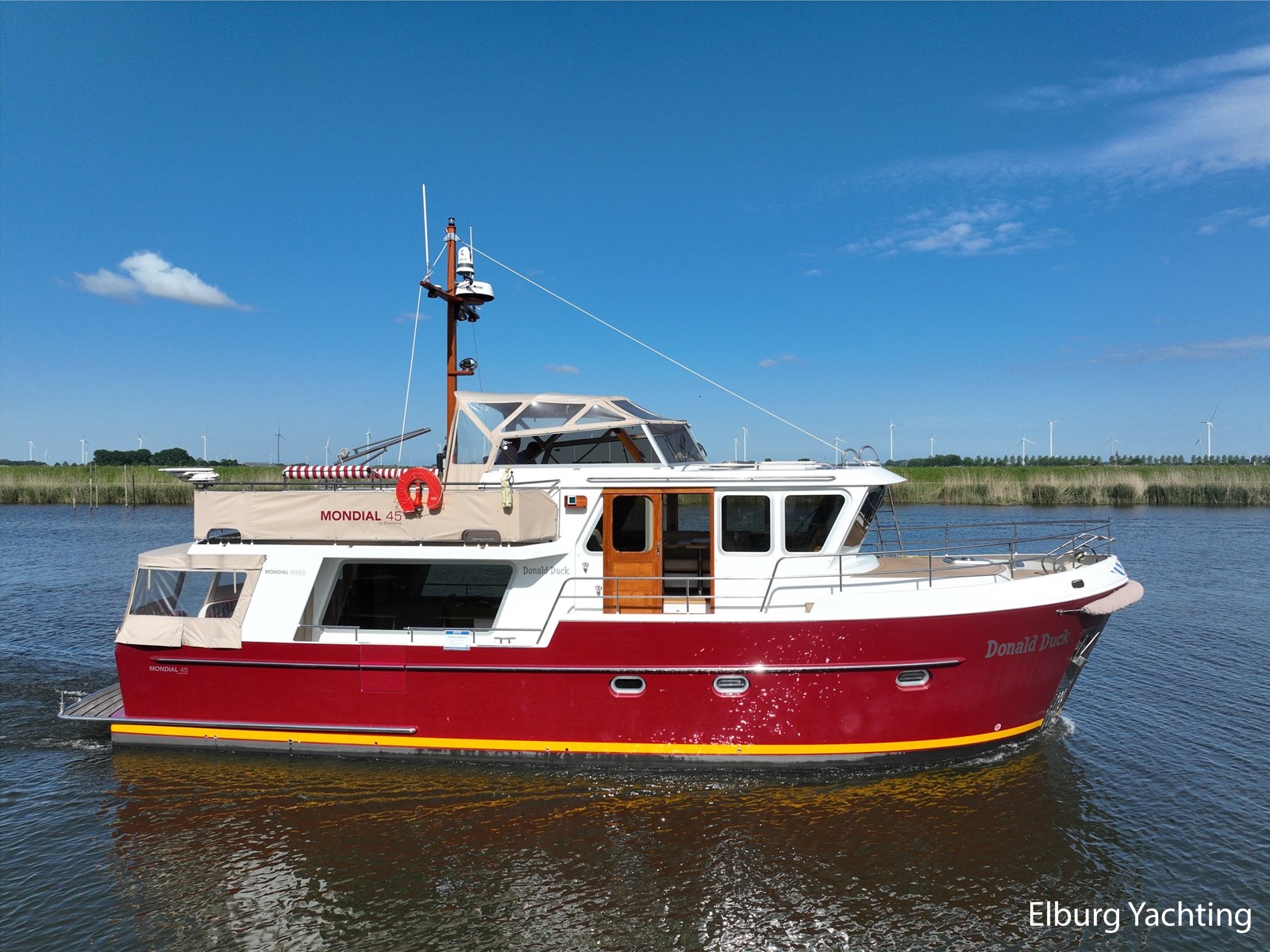

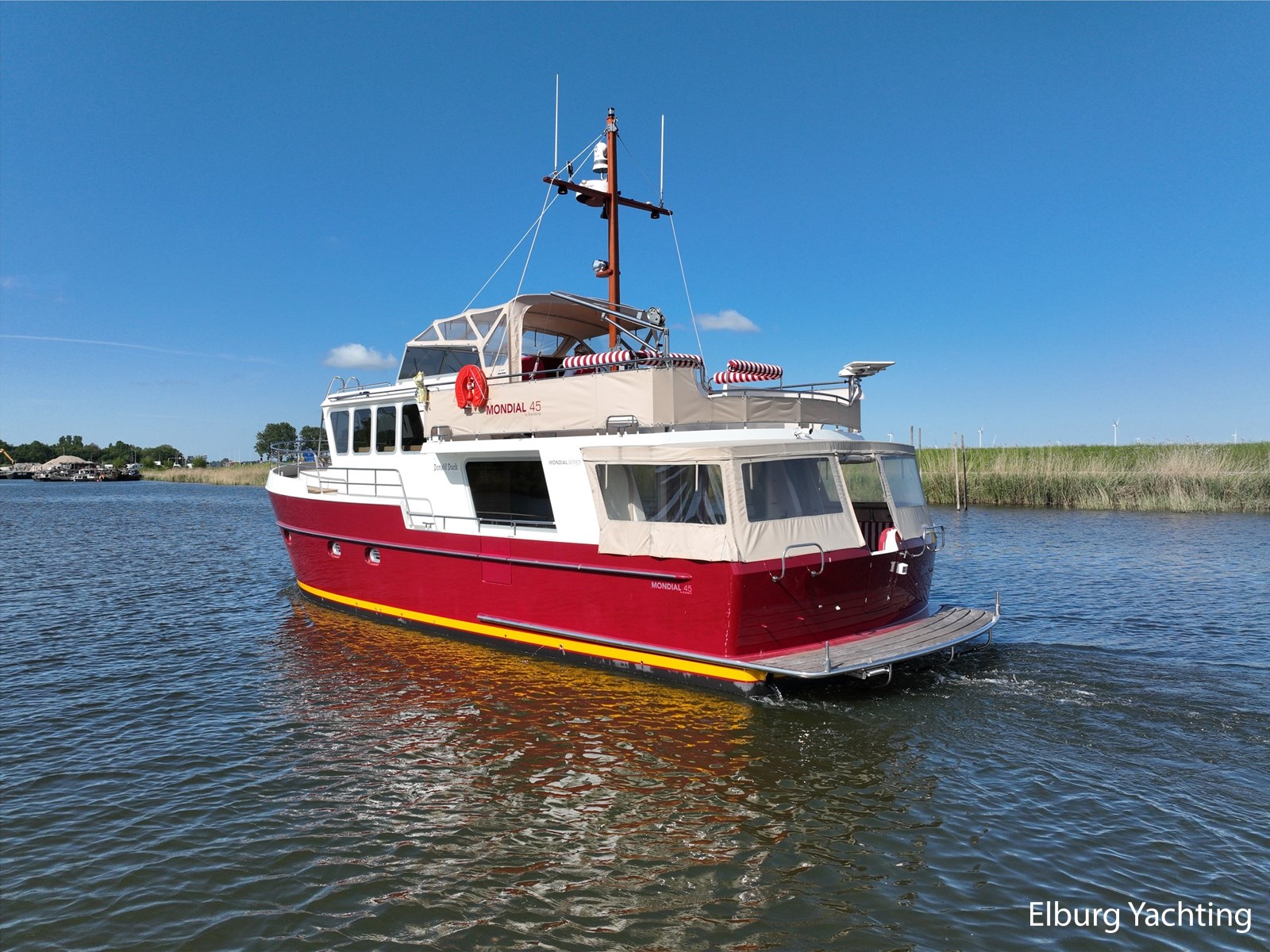

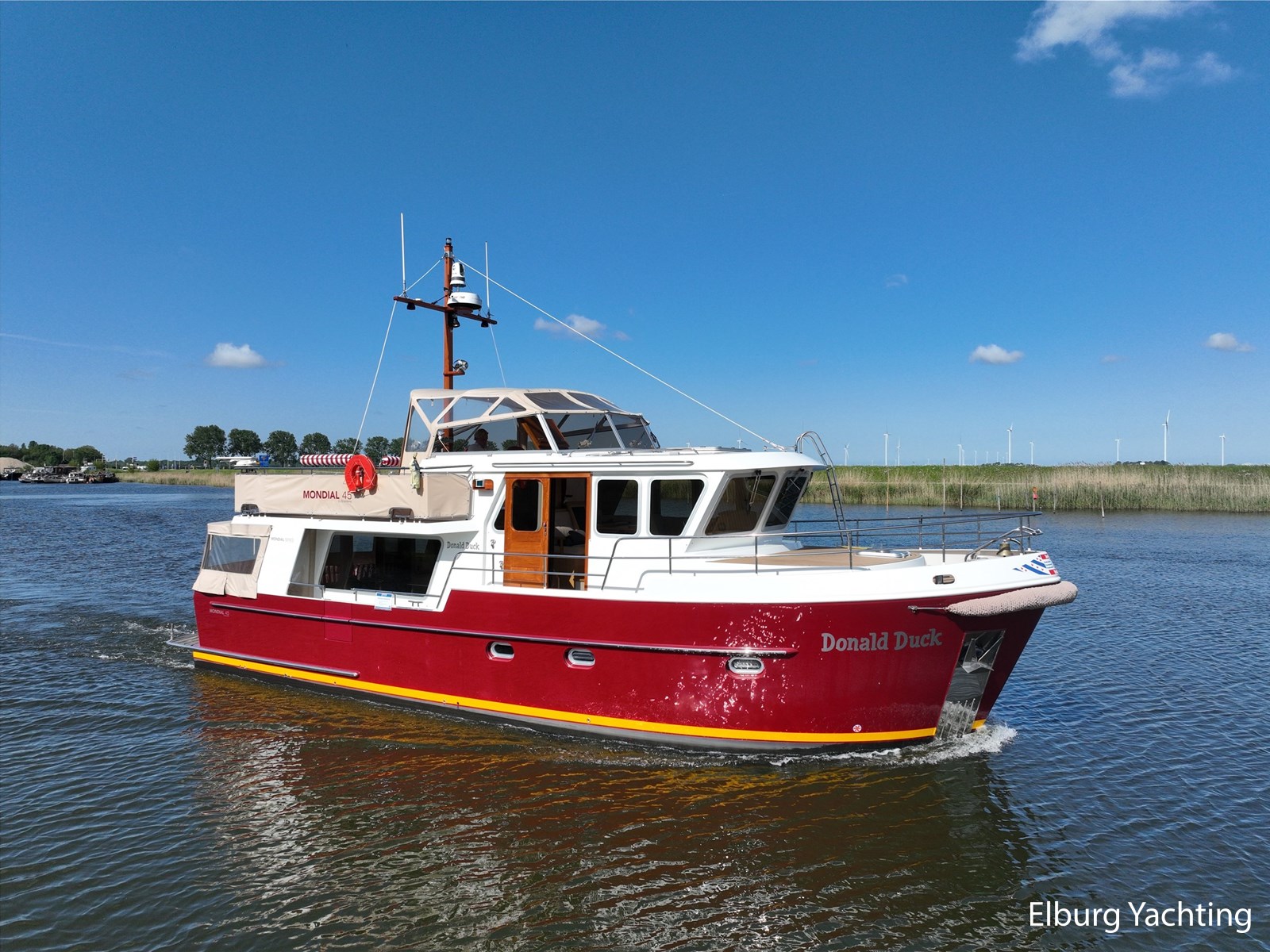

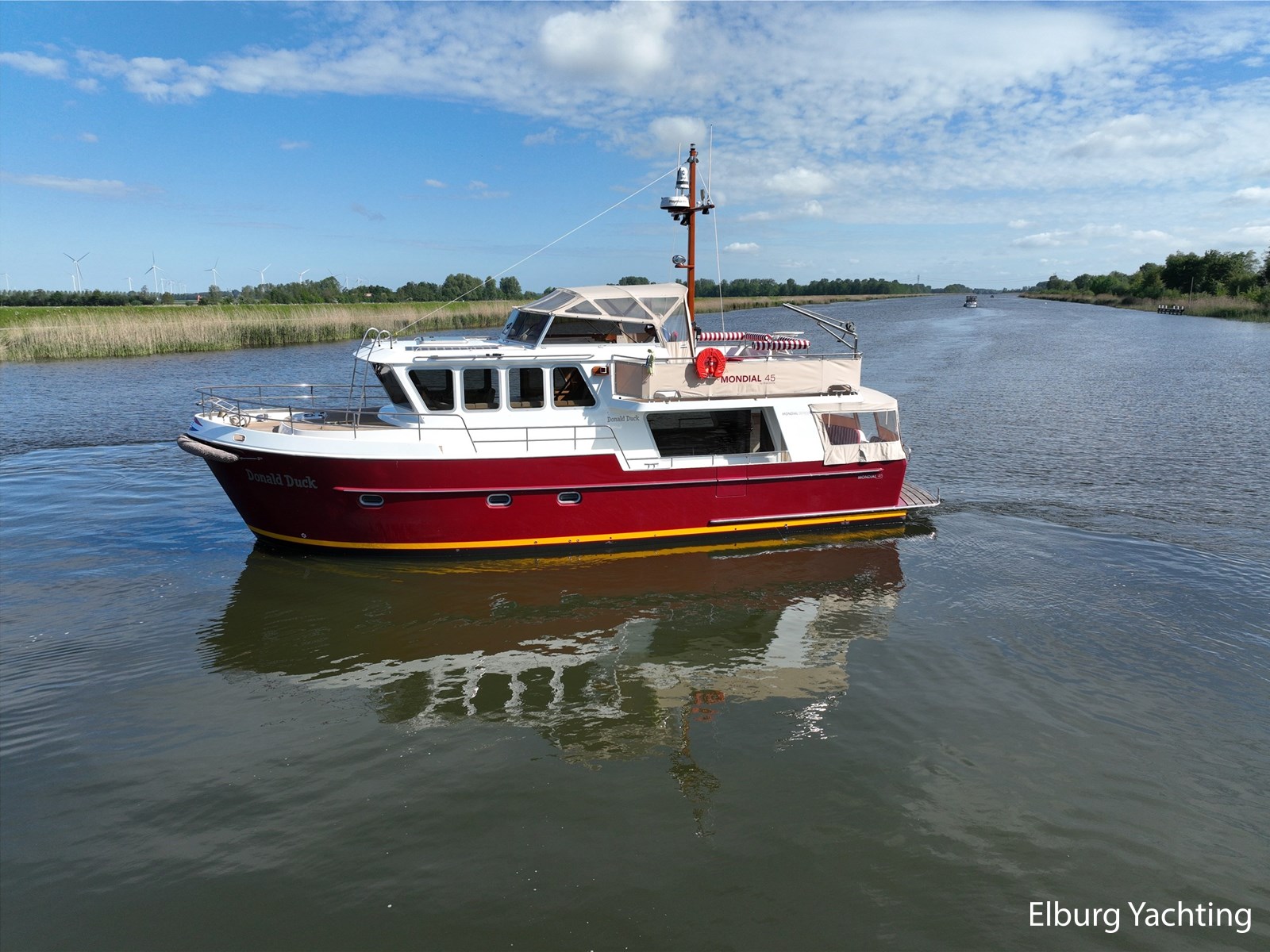

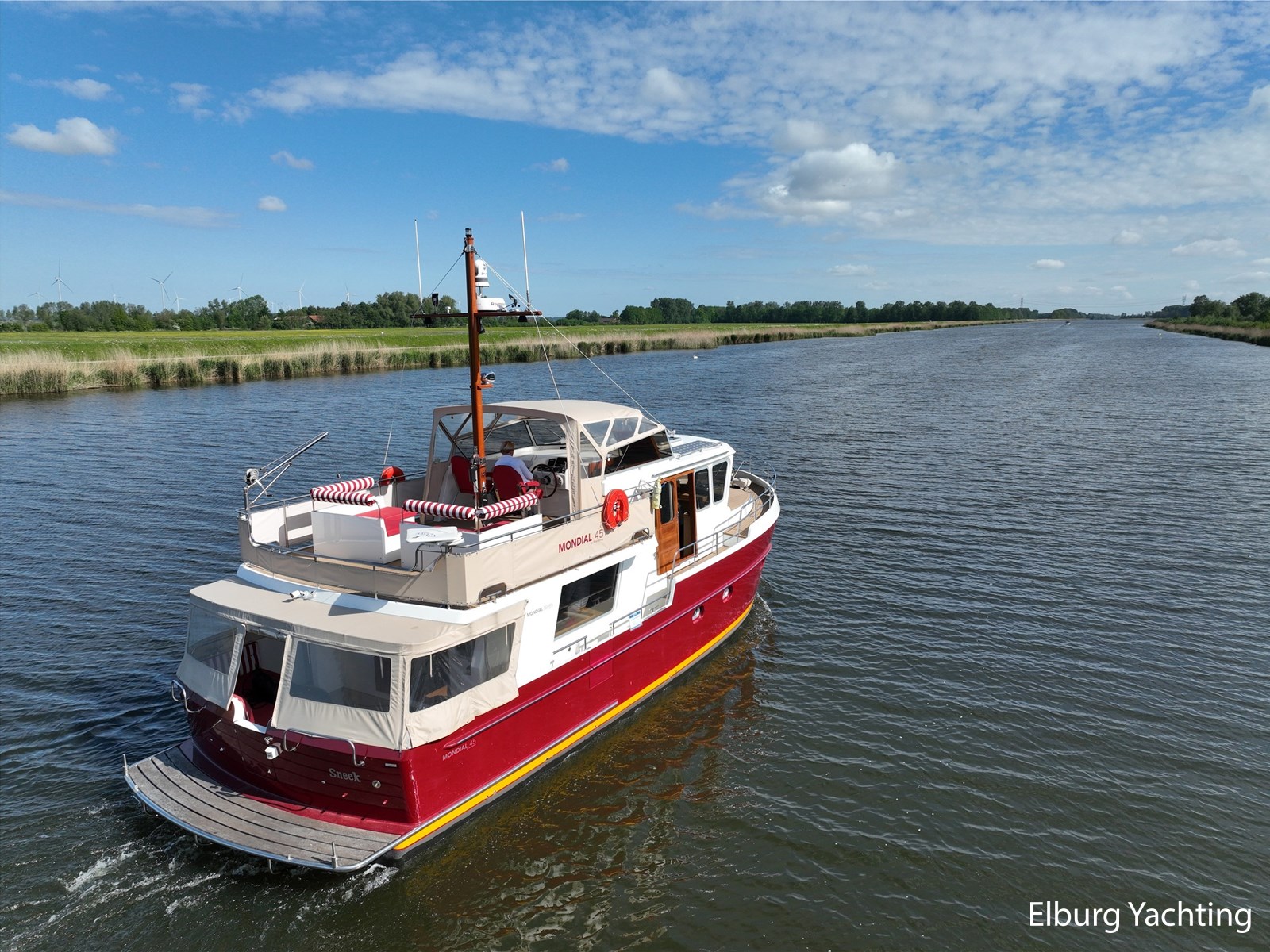

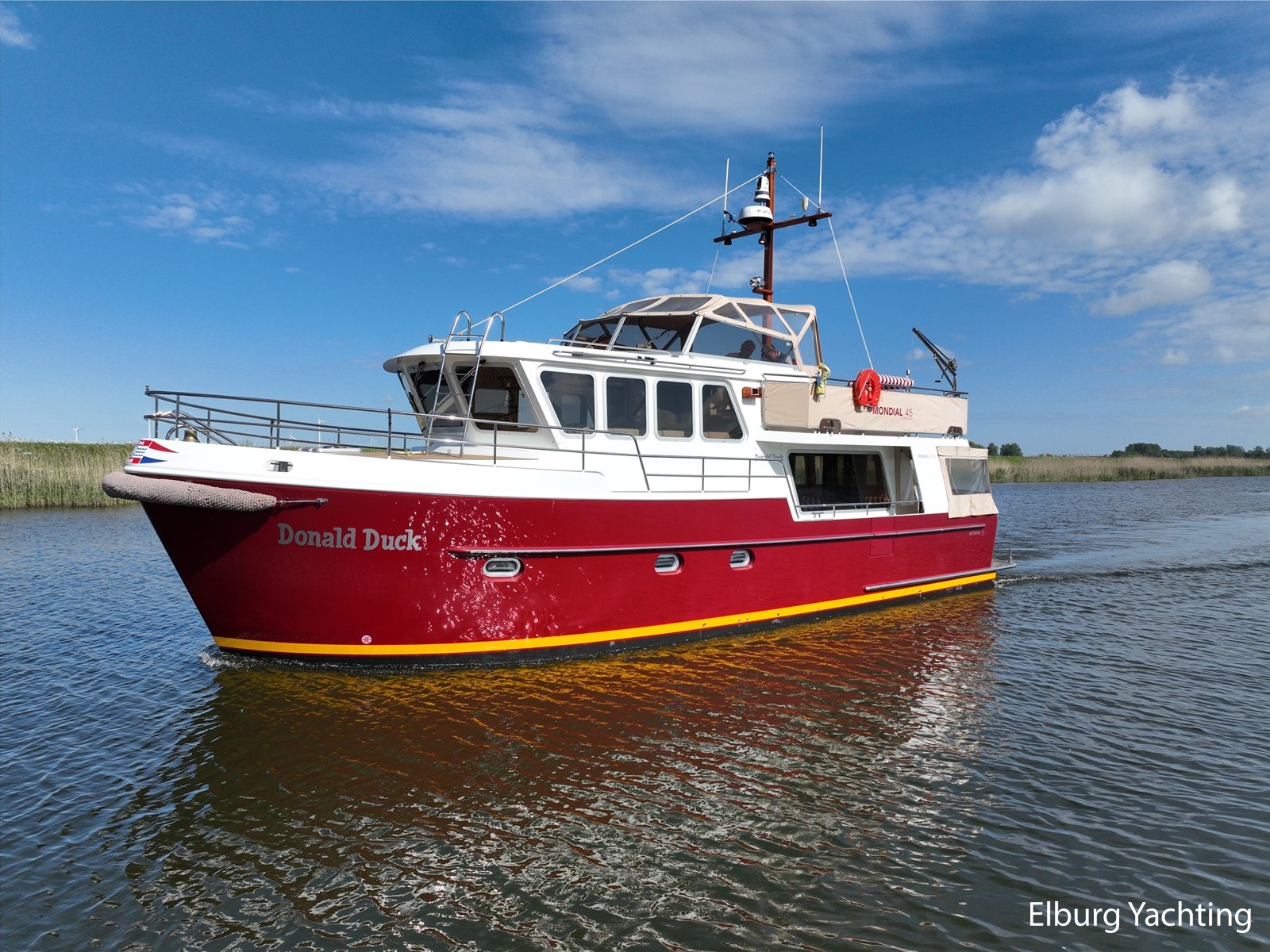

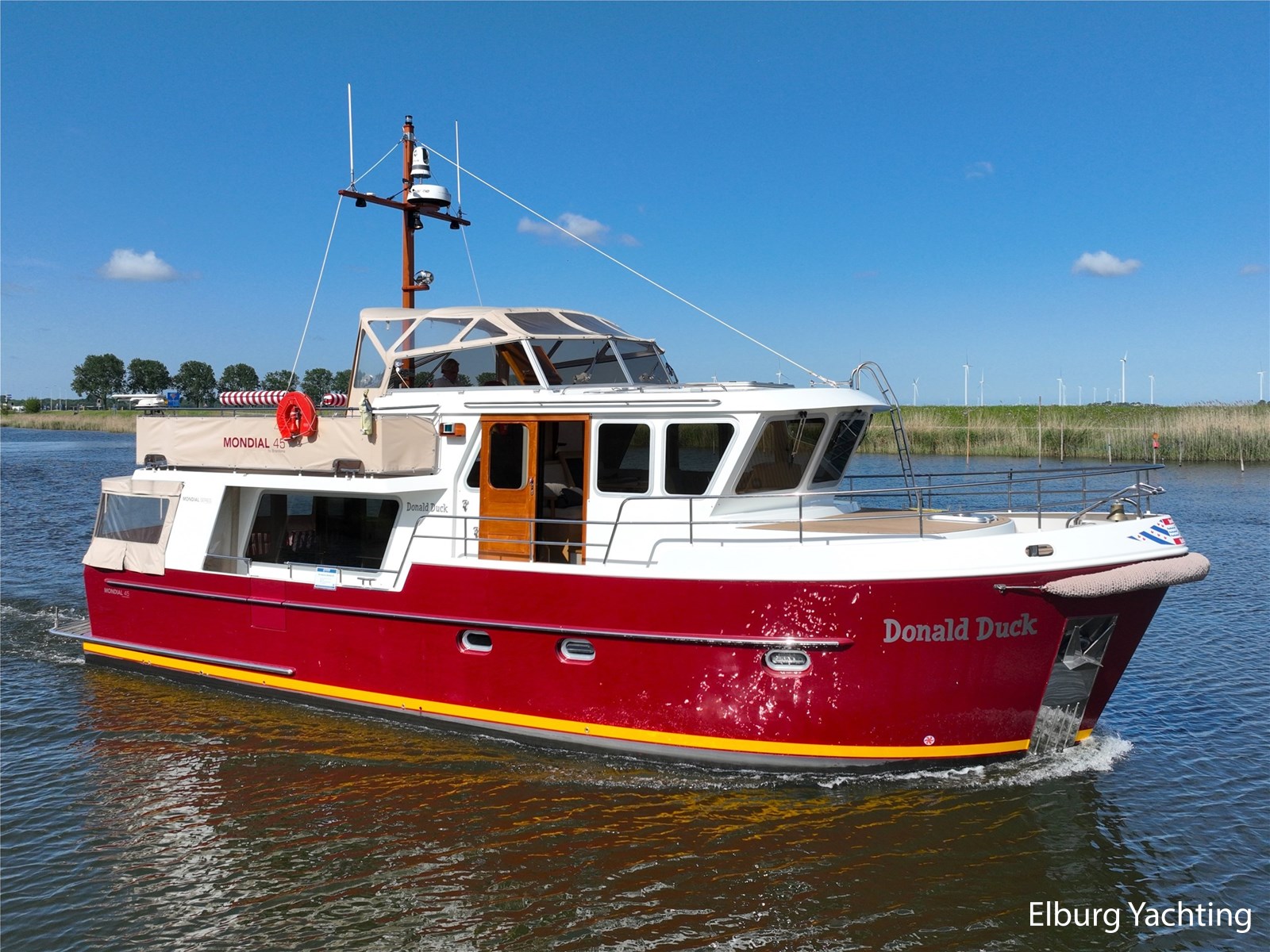

Brandsma Mondial 45
- Appr. 13.65 x 4.40 x 1.30 meter
- Brandsma Jachten - Sneek
- Vripack Design
- 2018
- B
- 1 x 170 pk Vetus Deutz
- 2 x
- Elburg Yachting
- € 425.000
- Just Listed

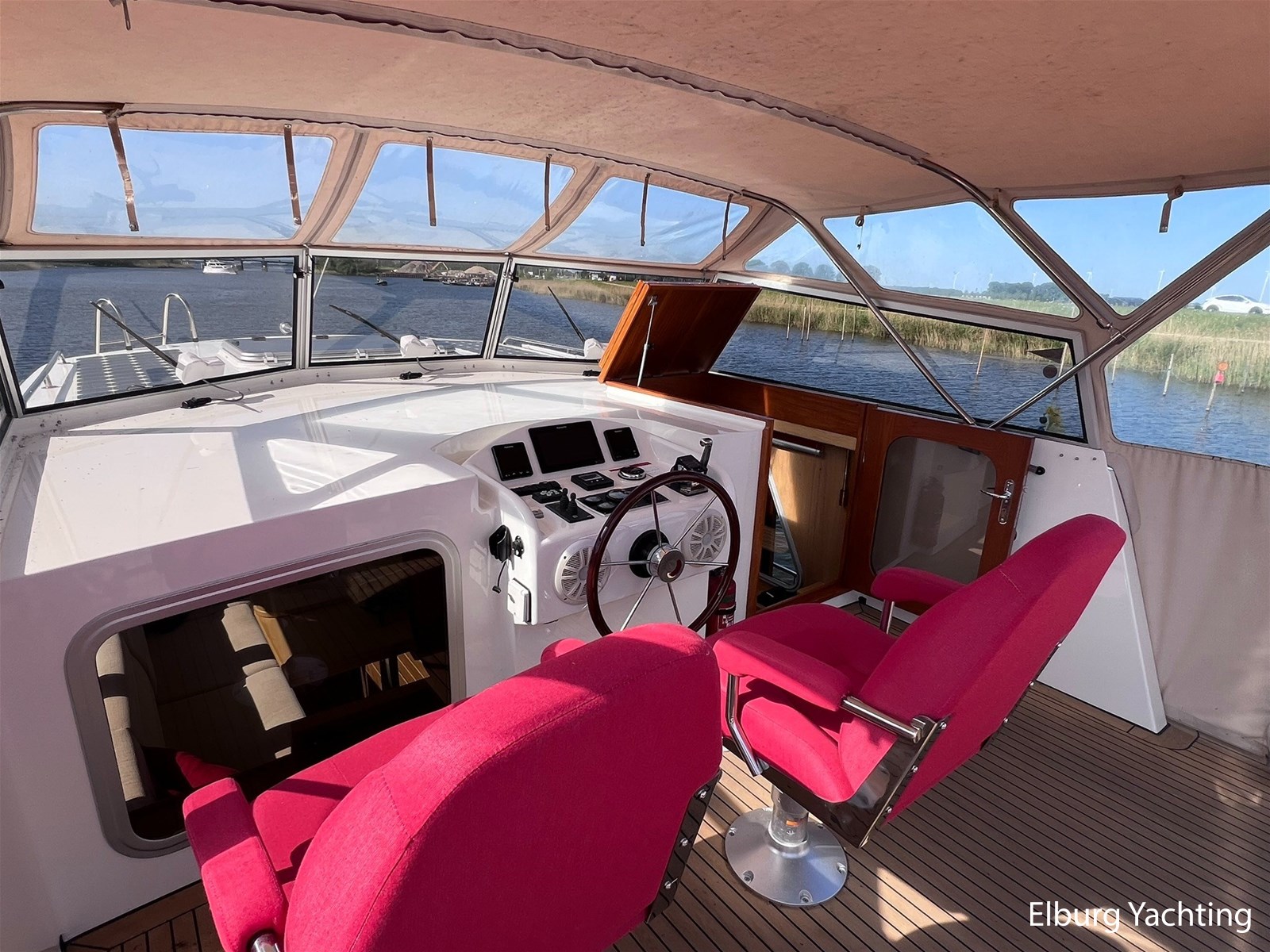

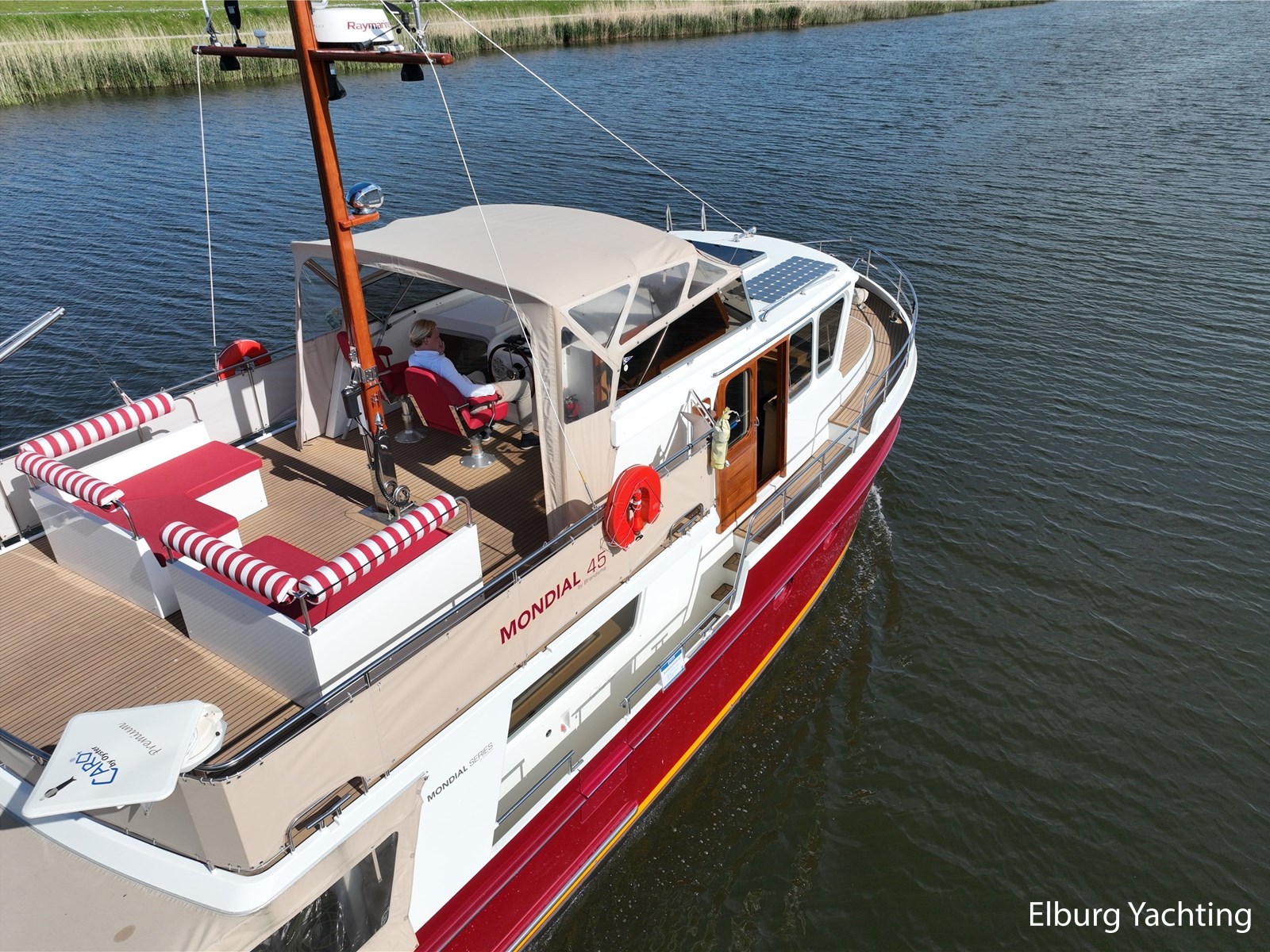

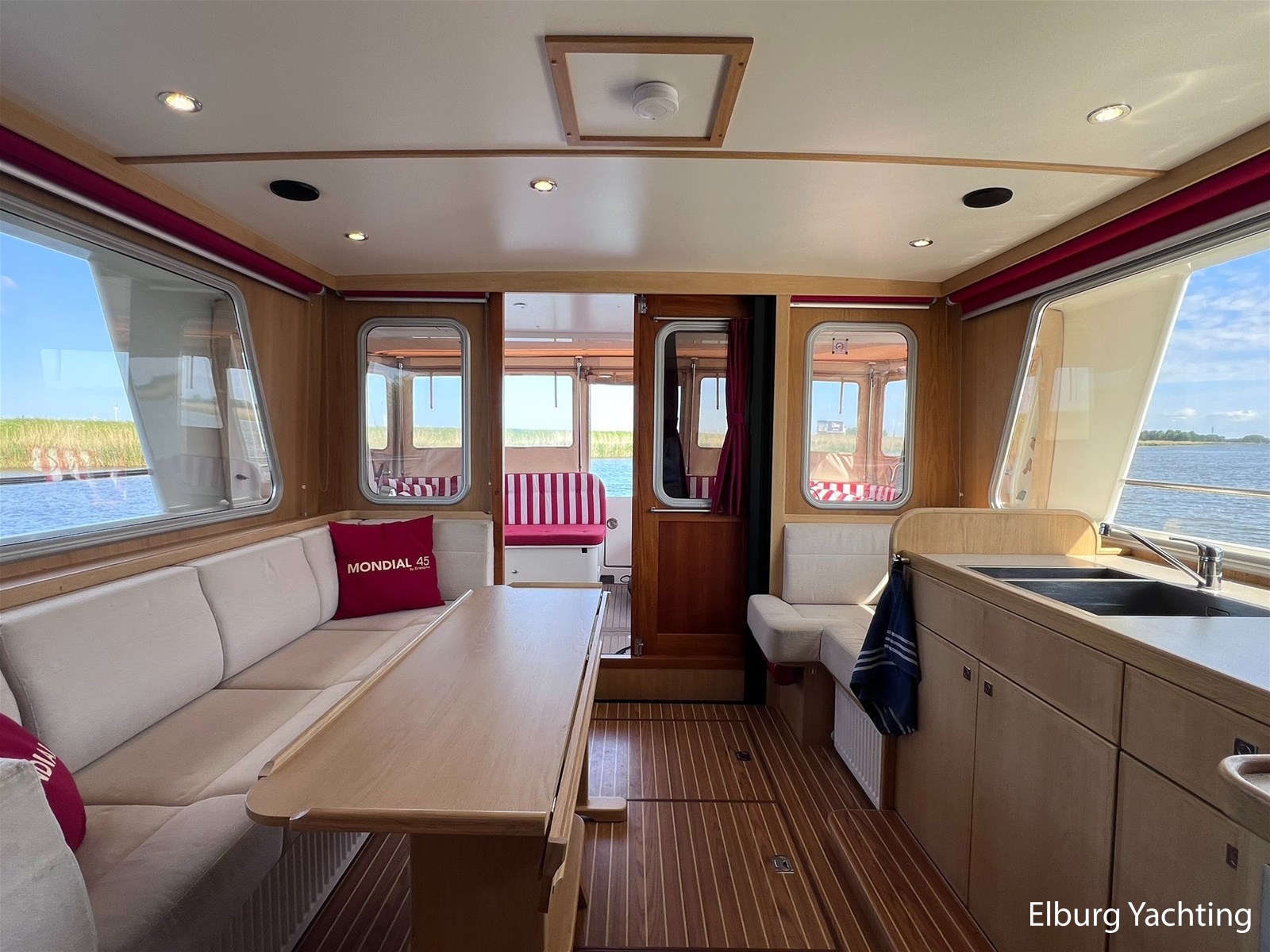

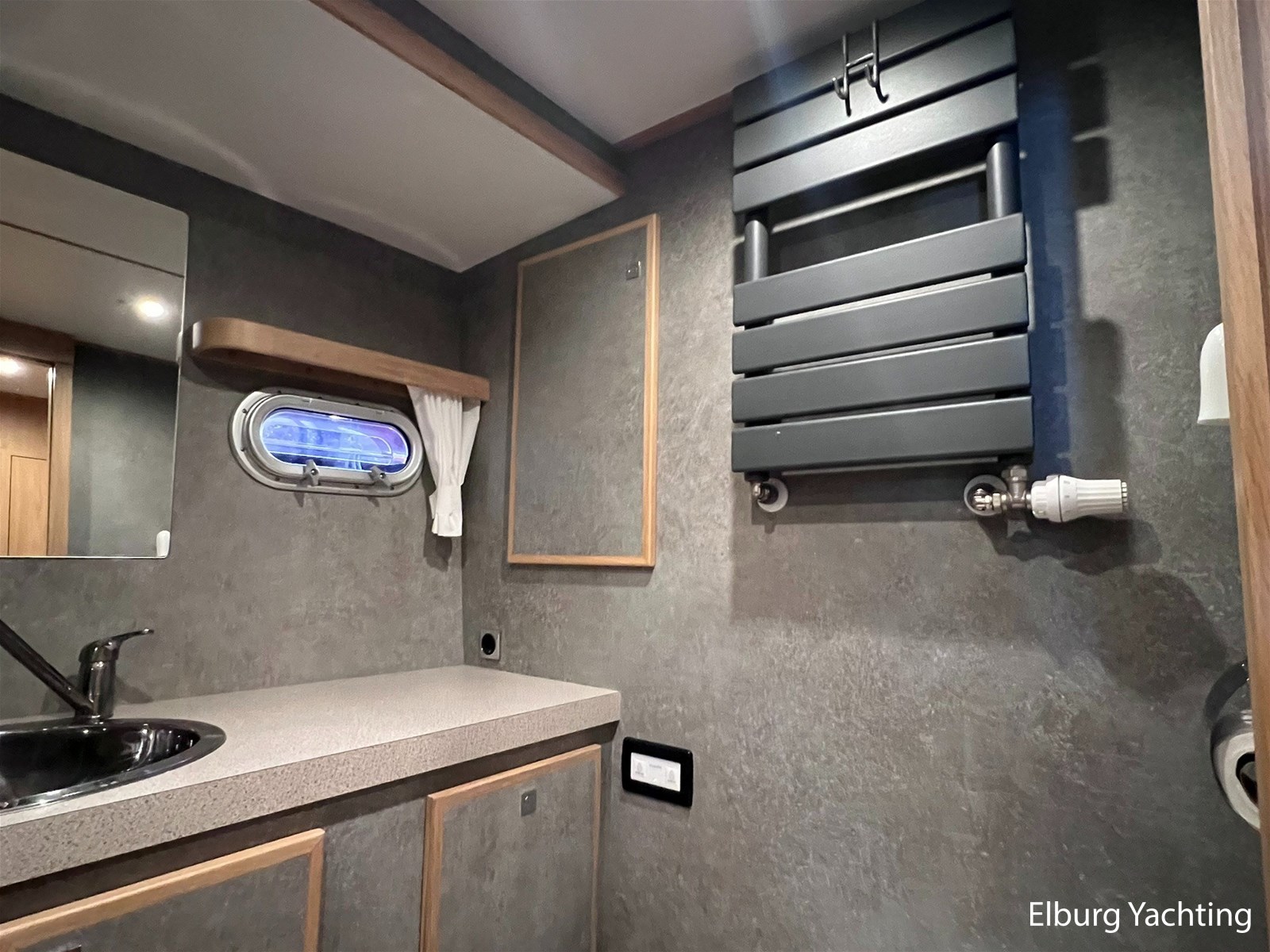

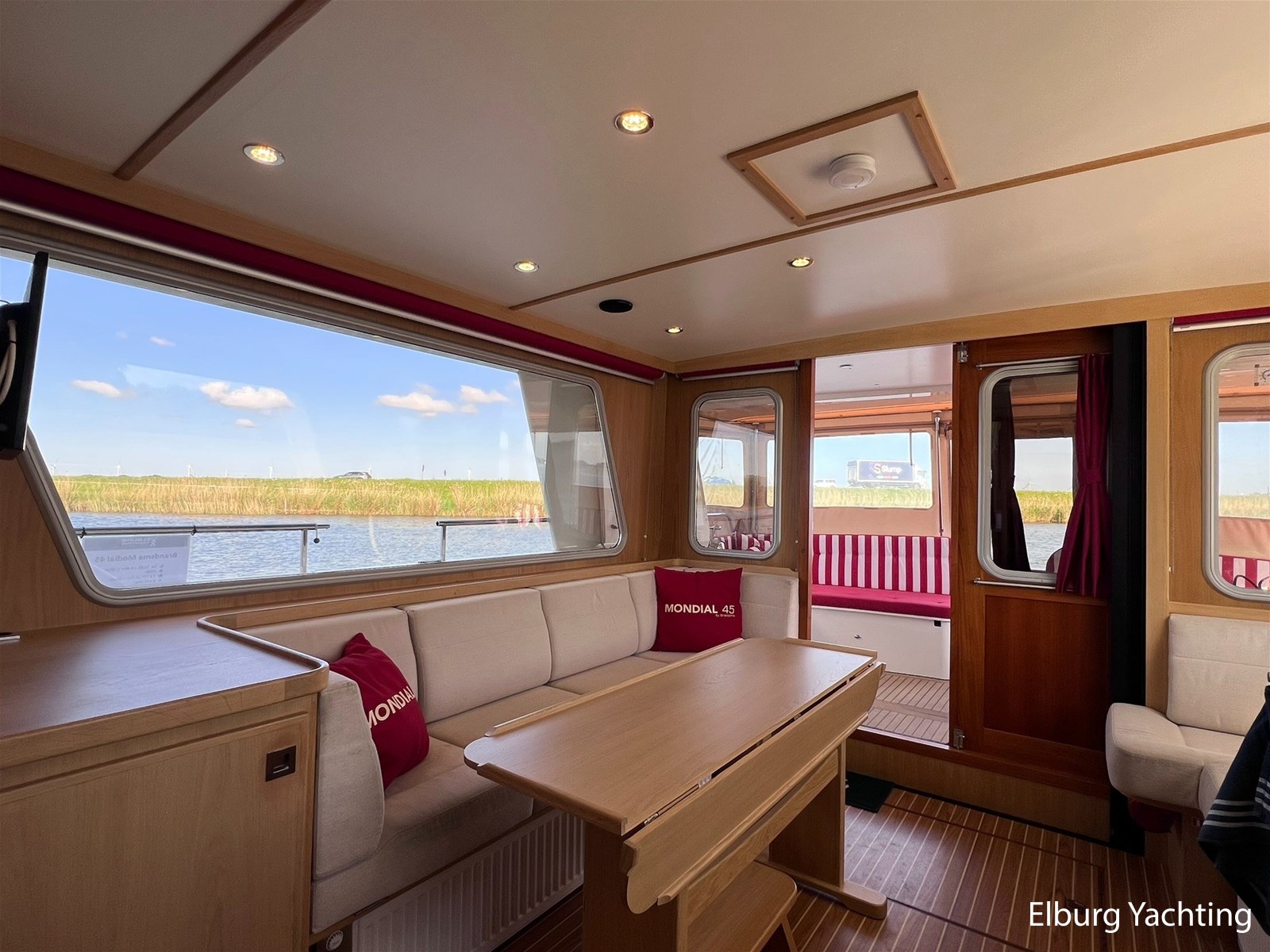

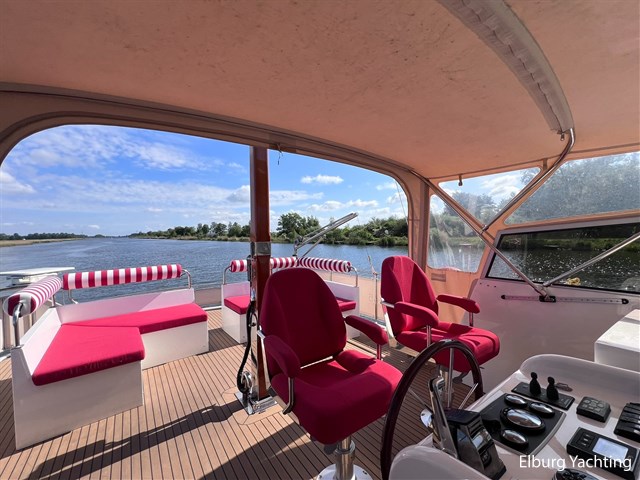

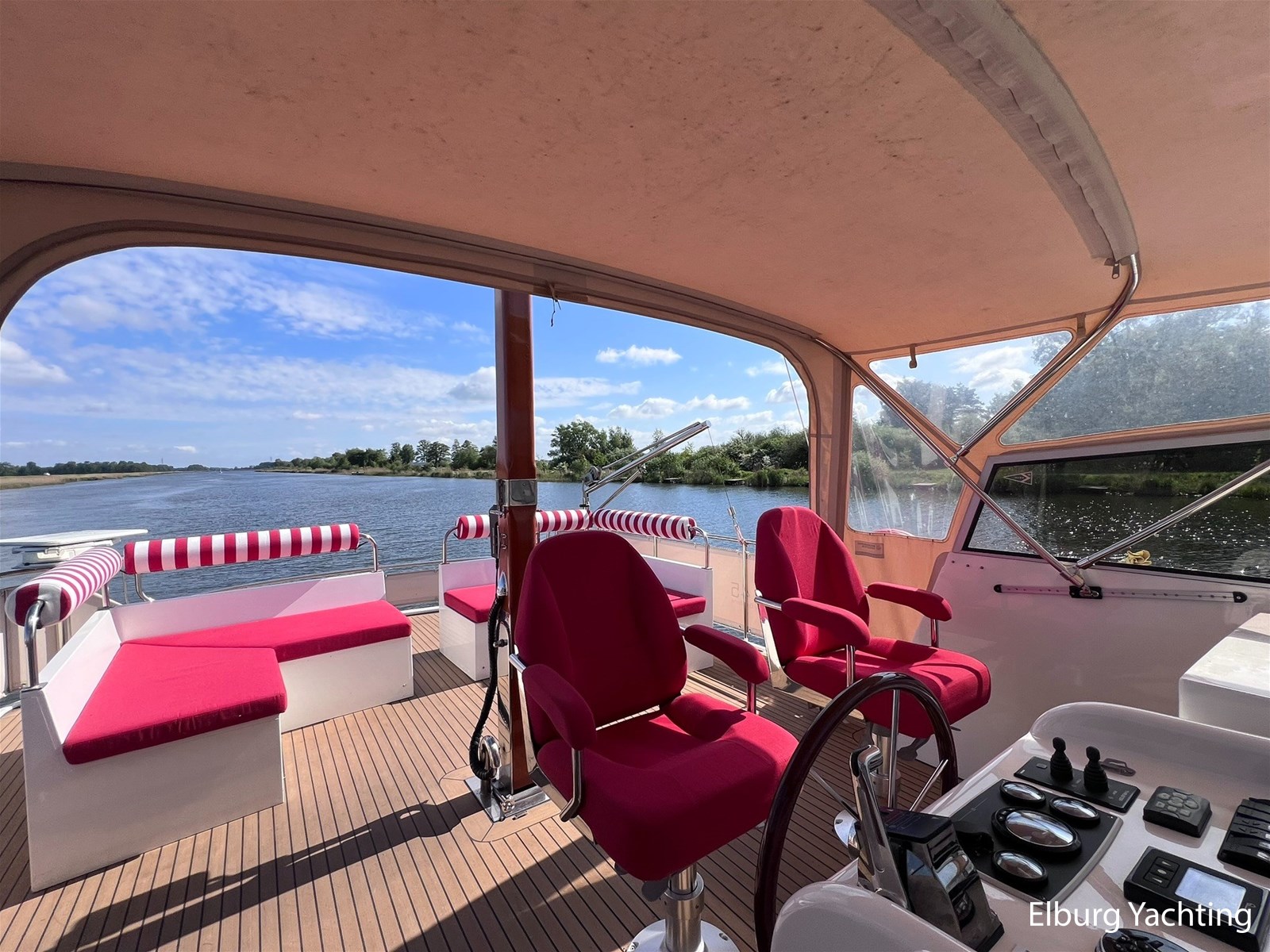

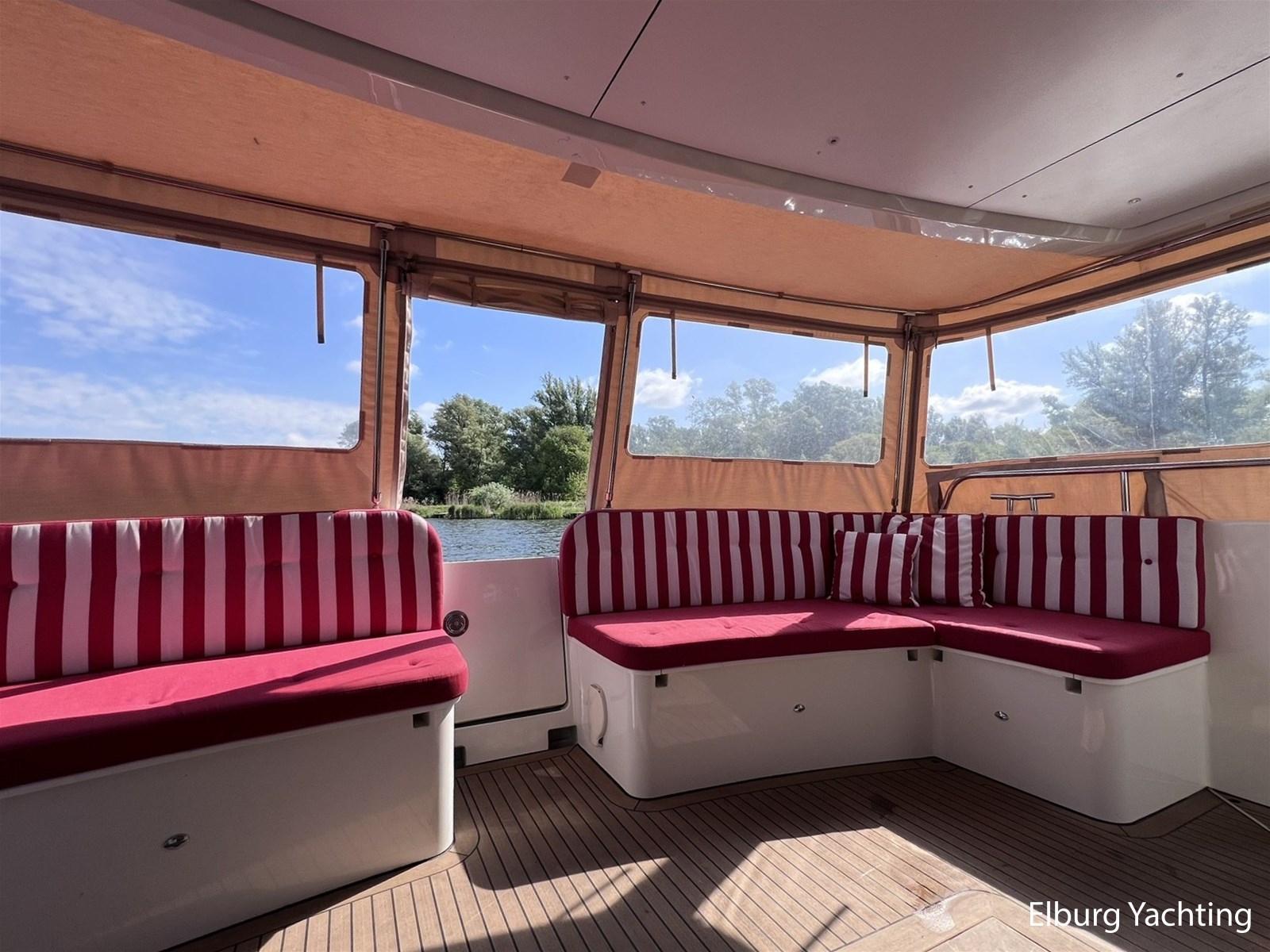

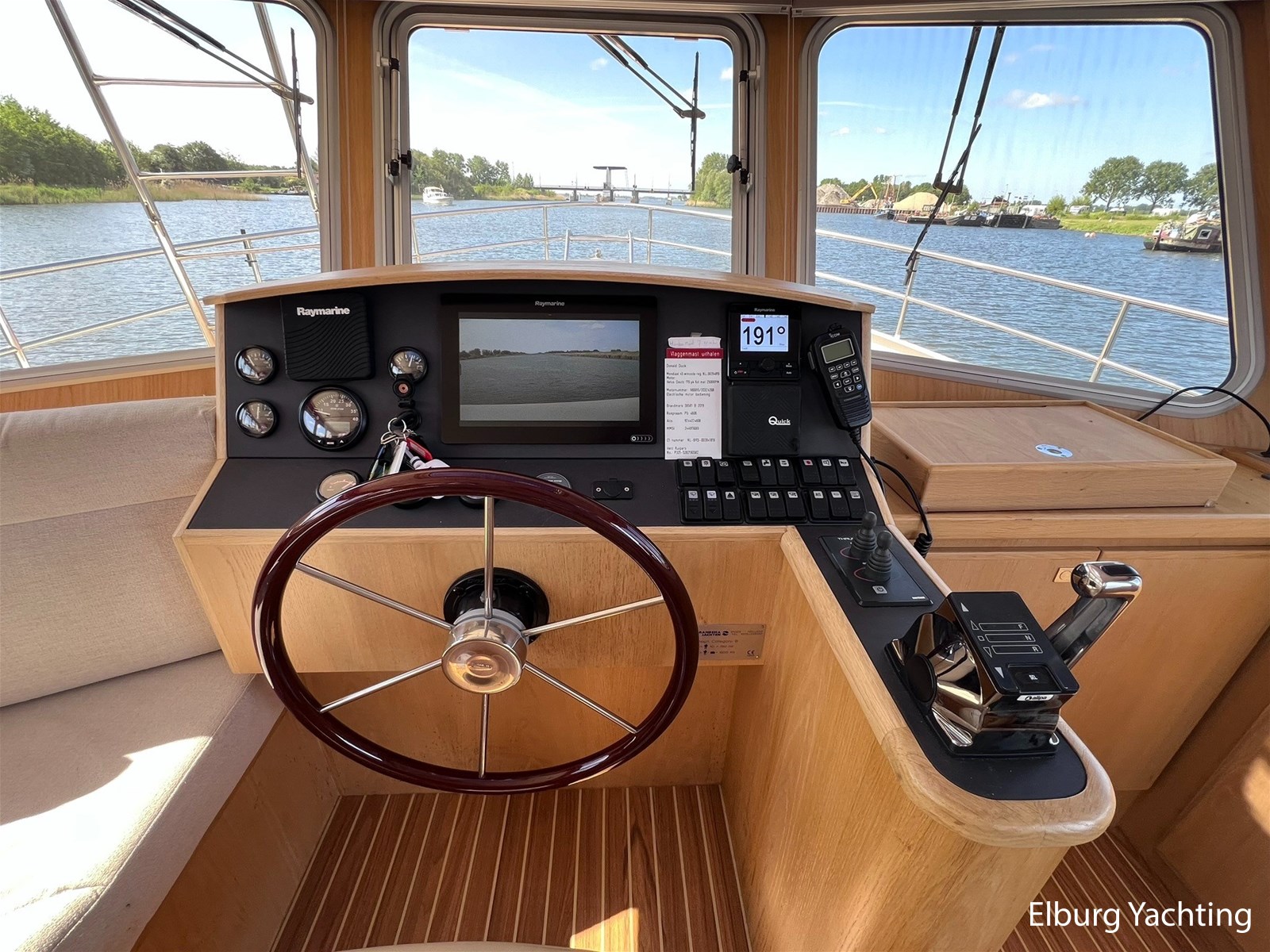

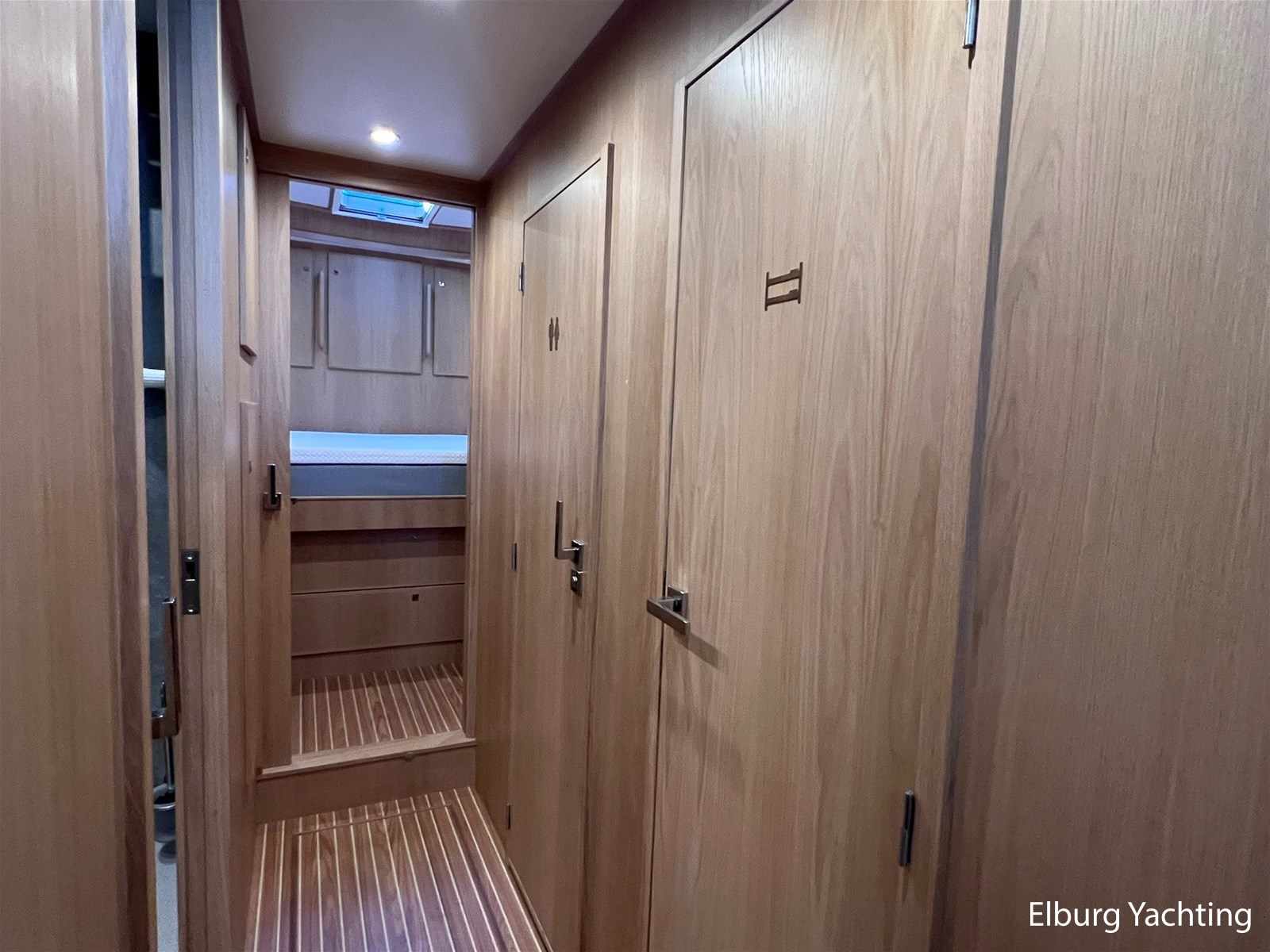

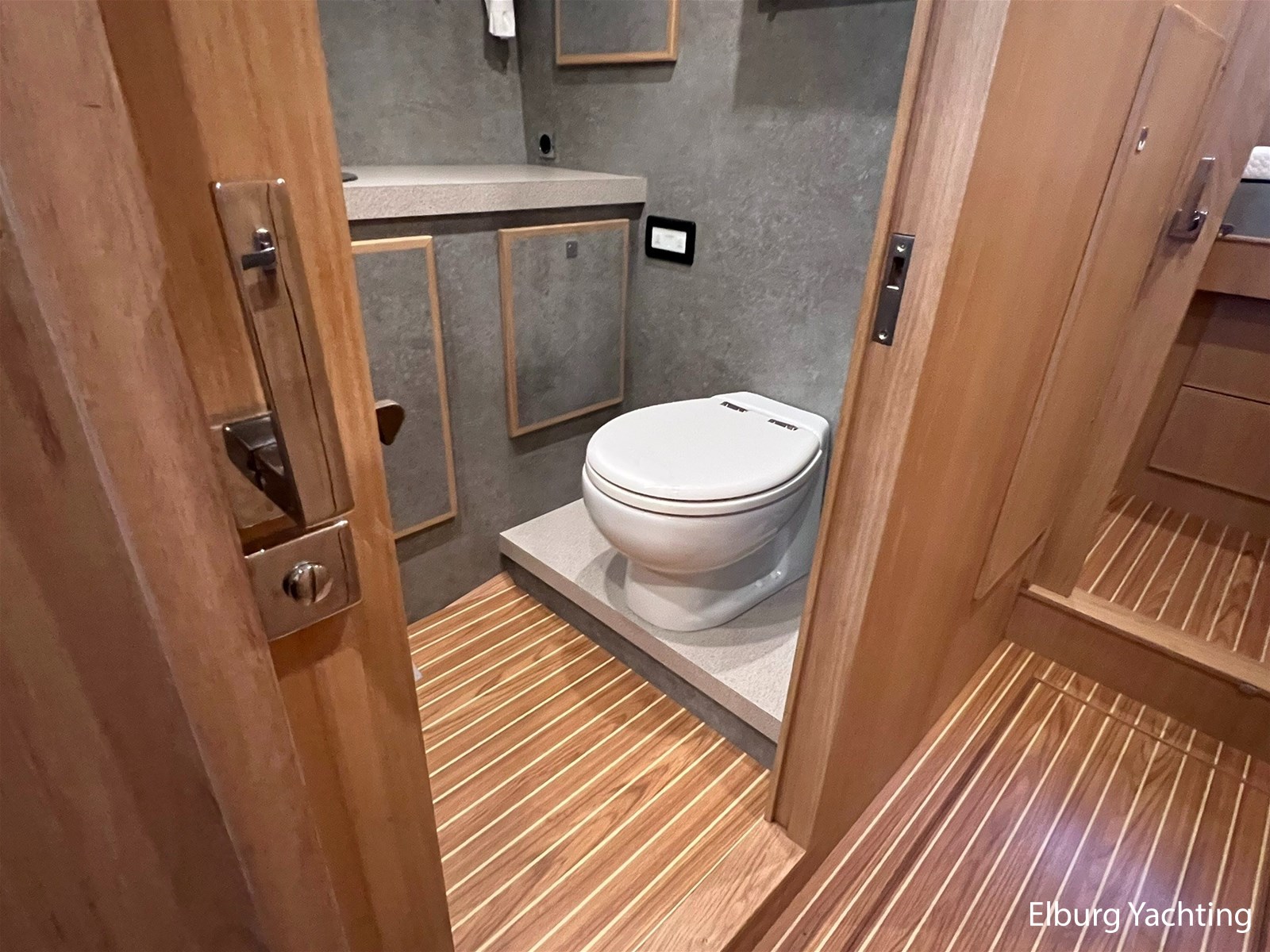

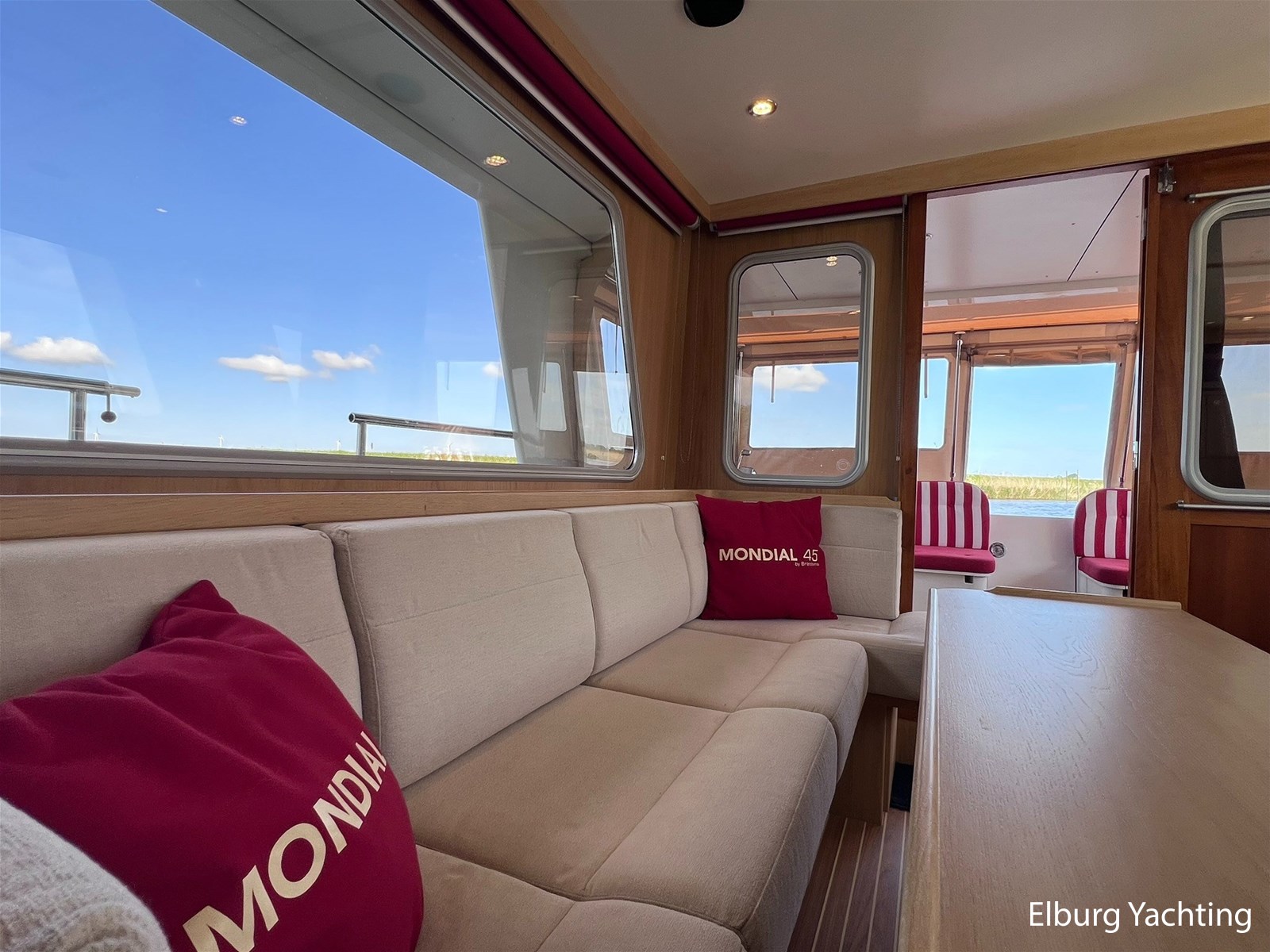

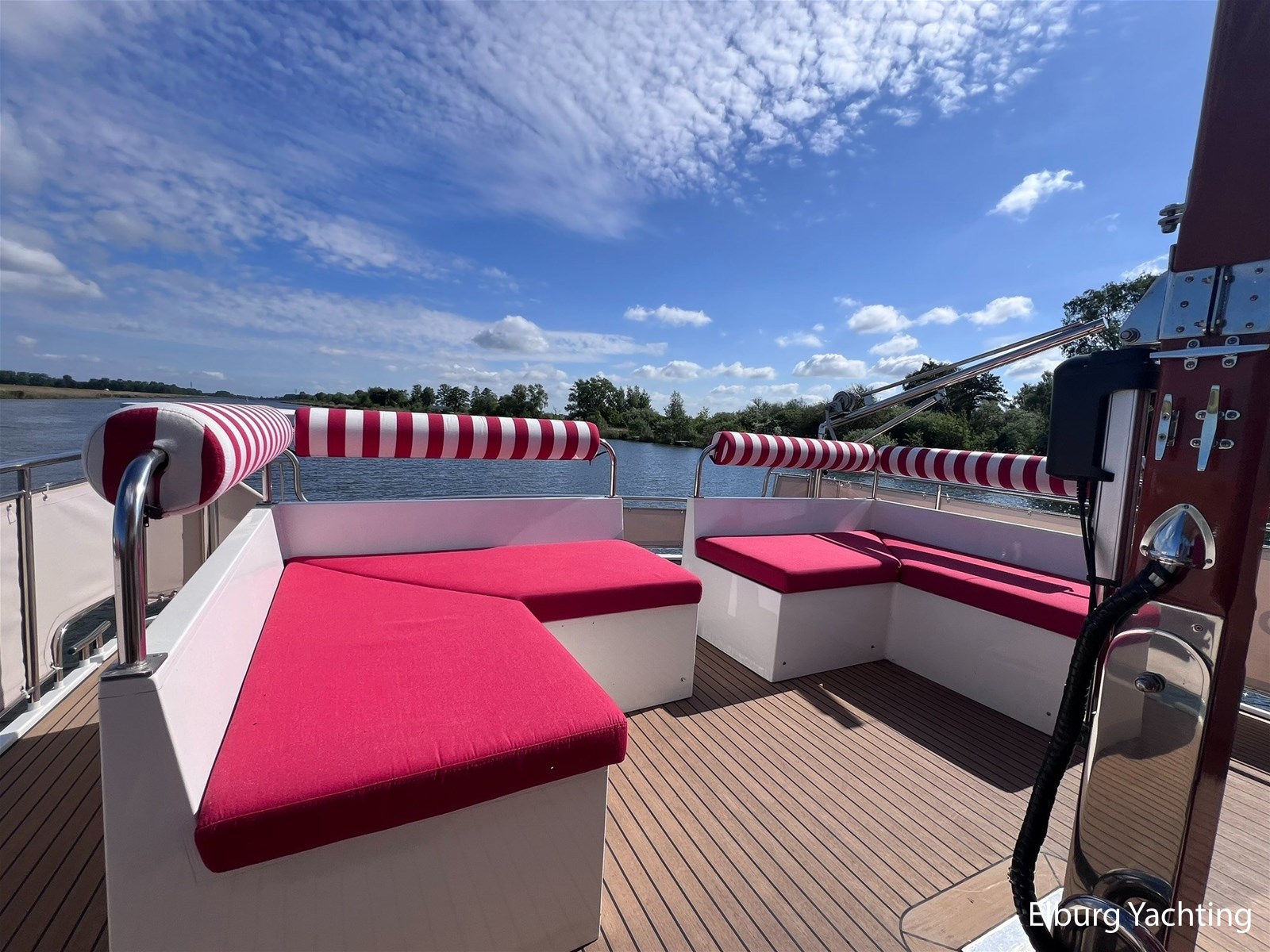

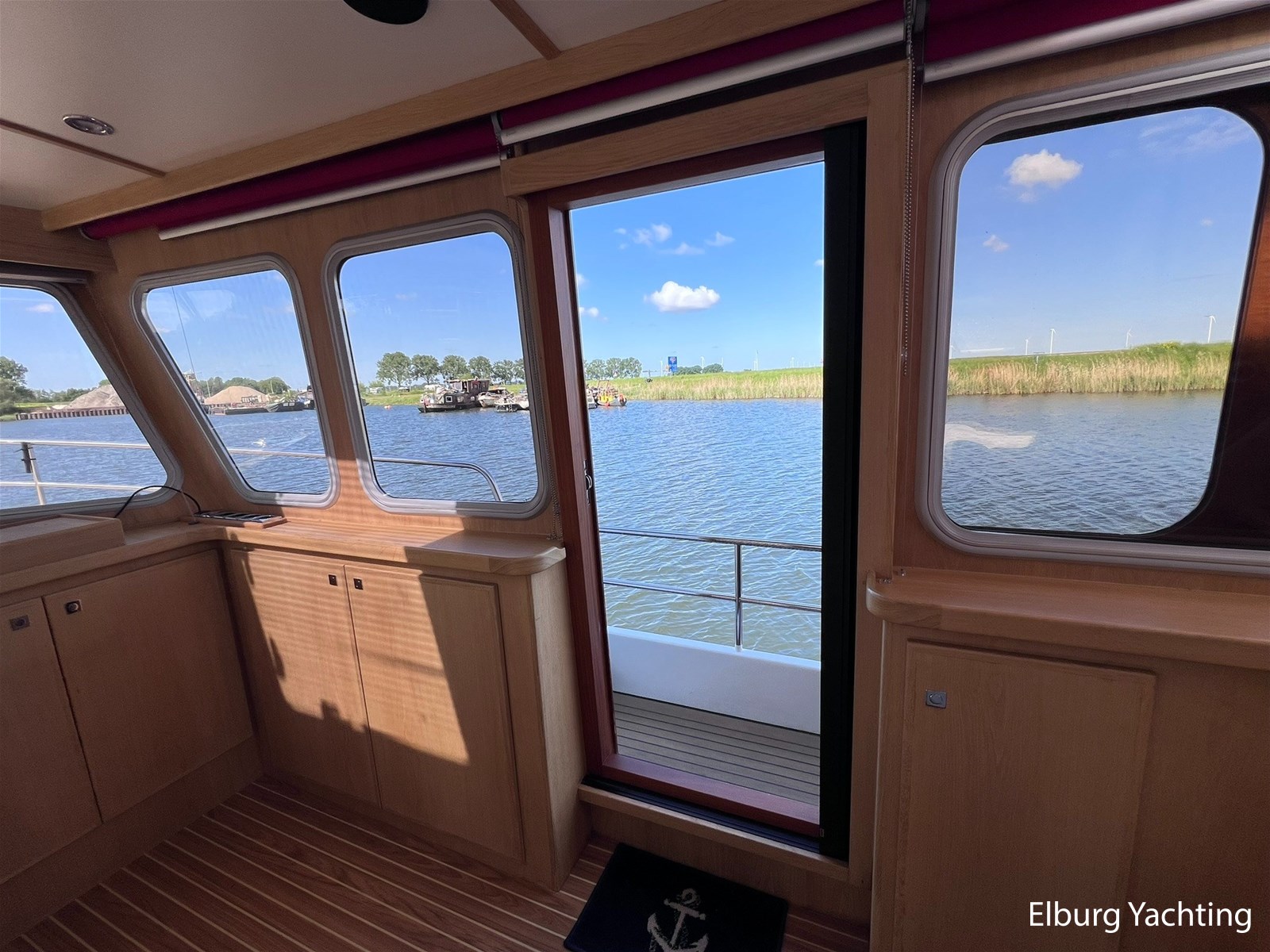

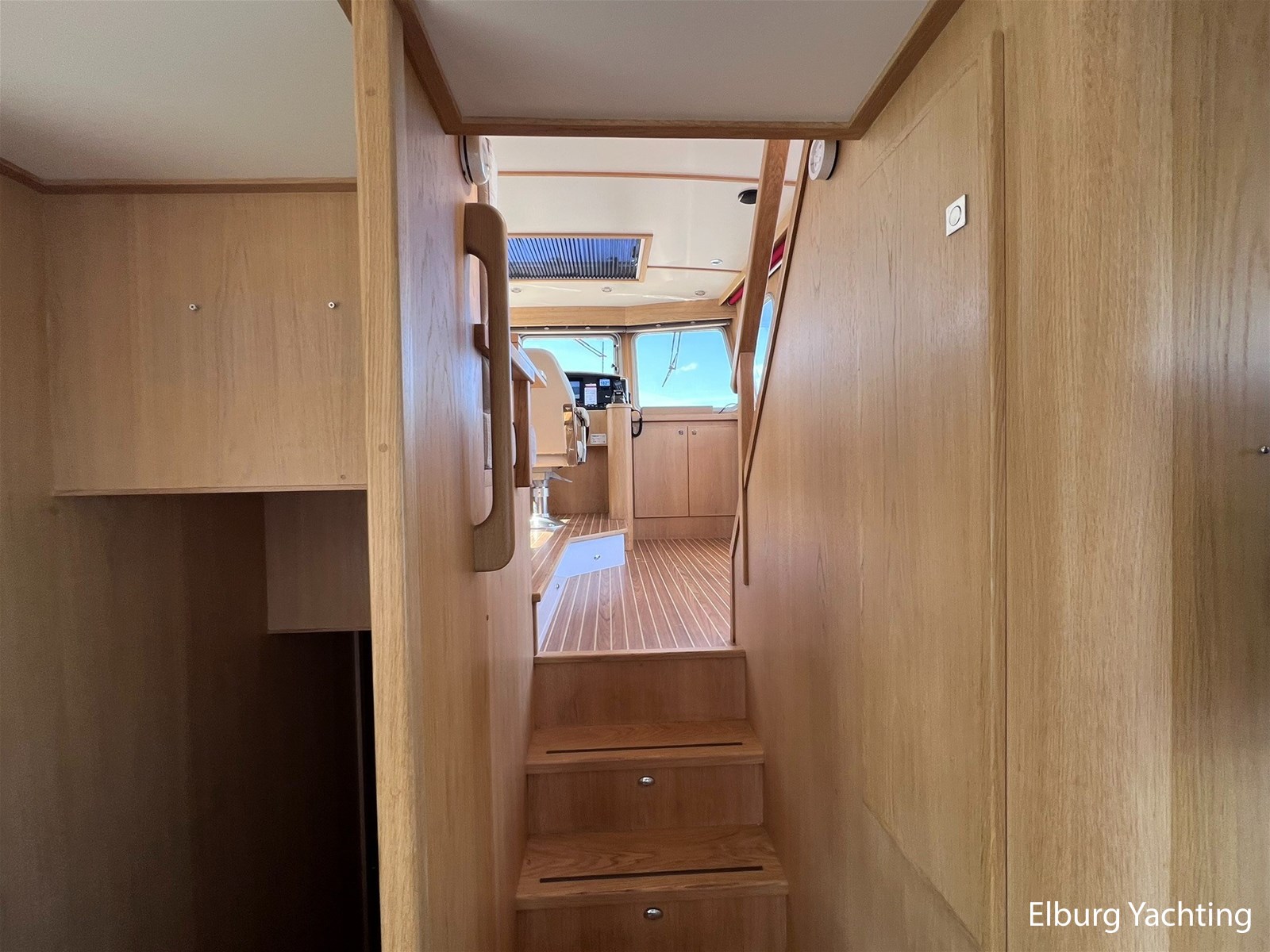

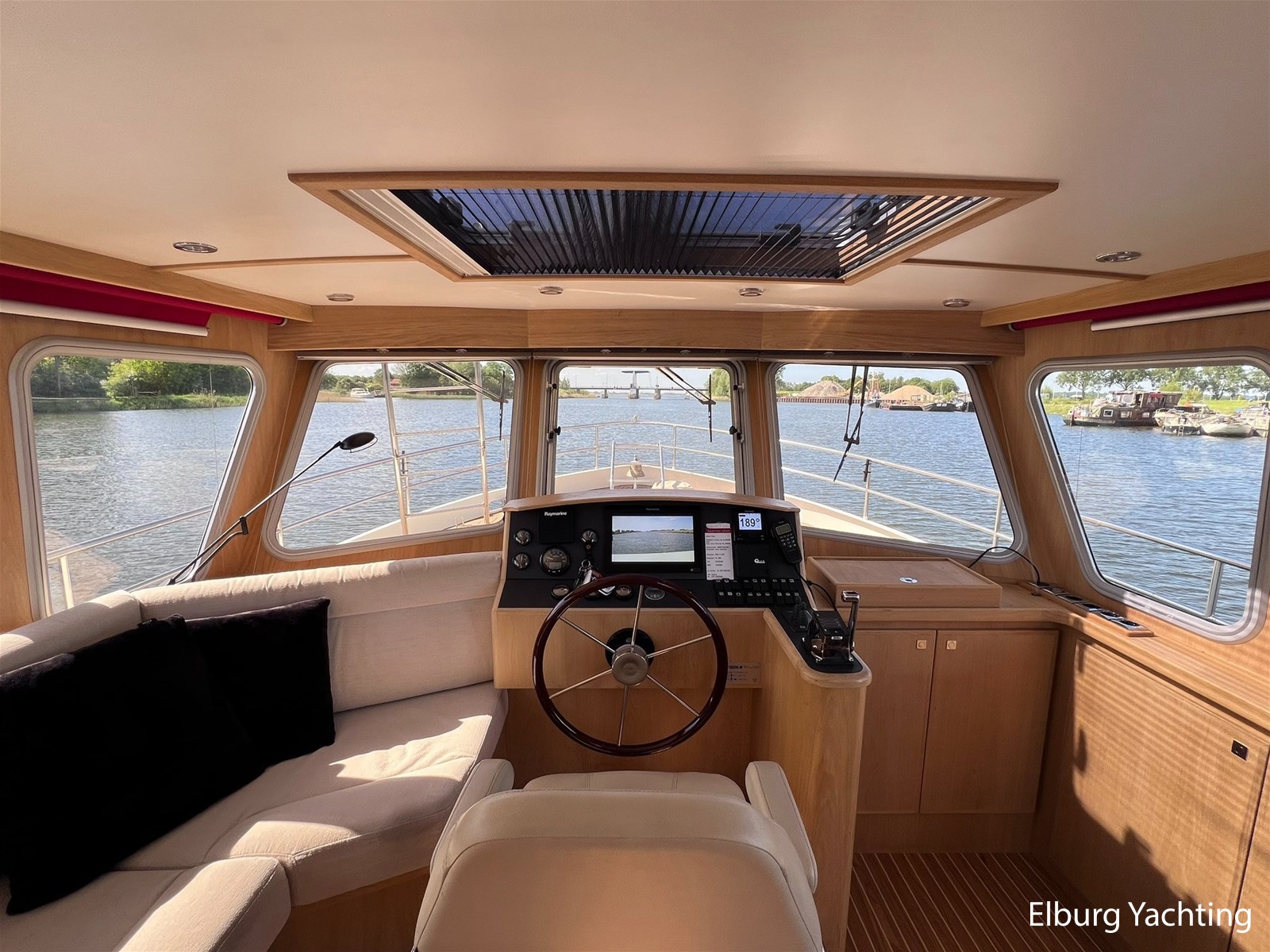

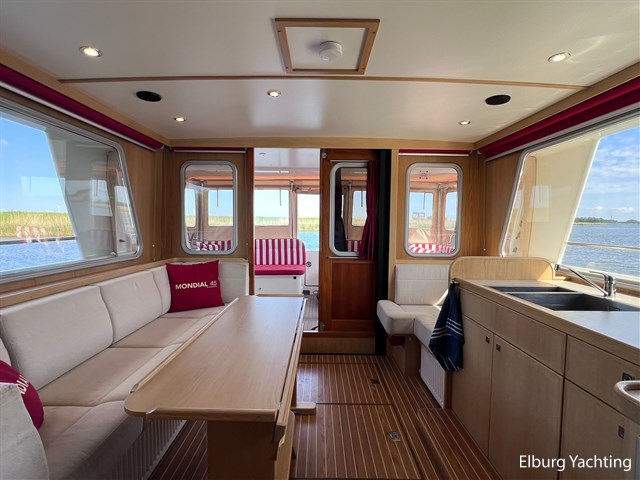

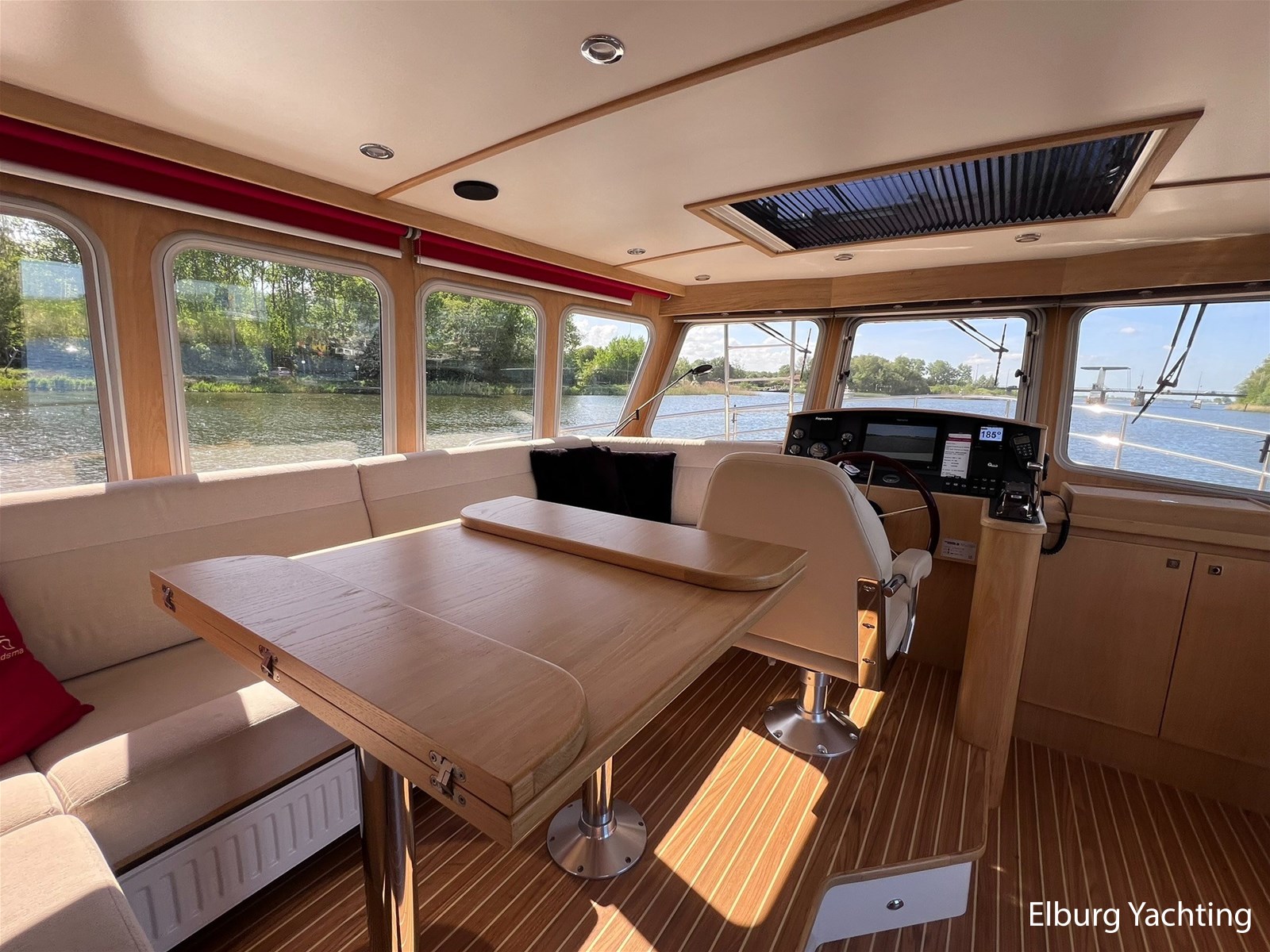

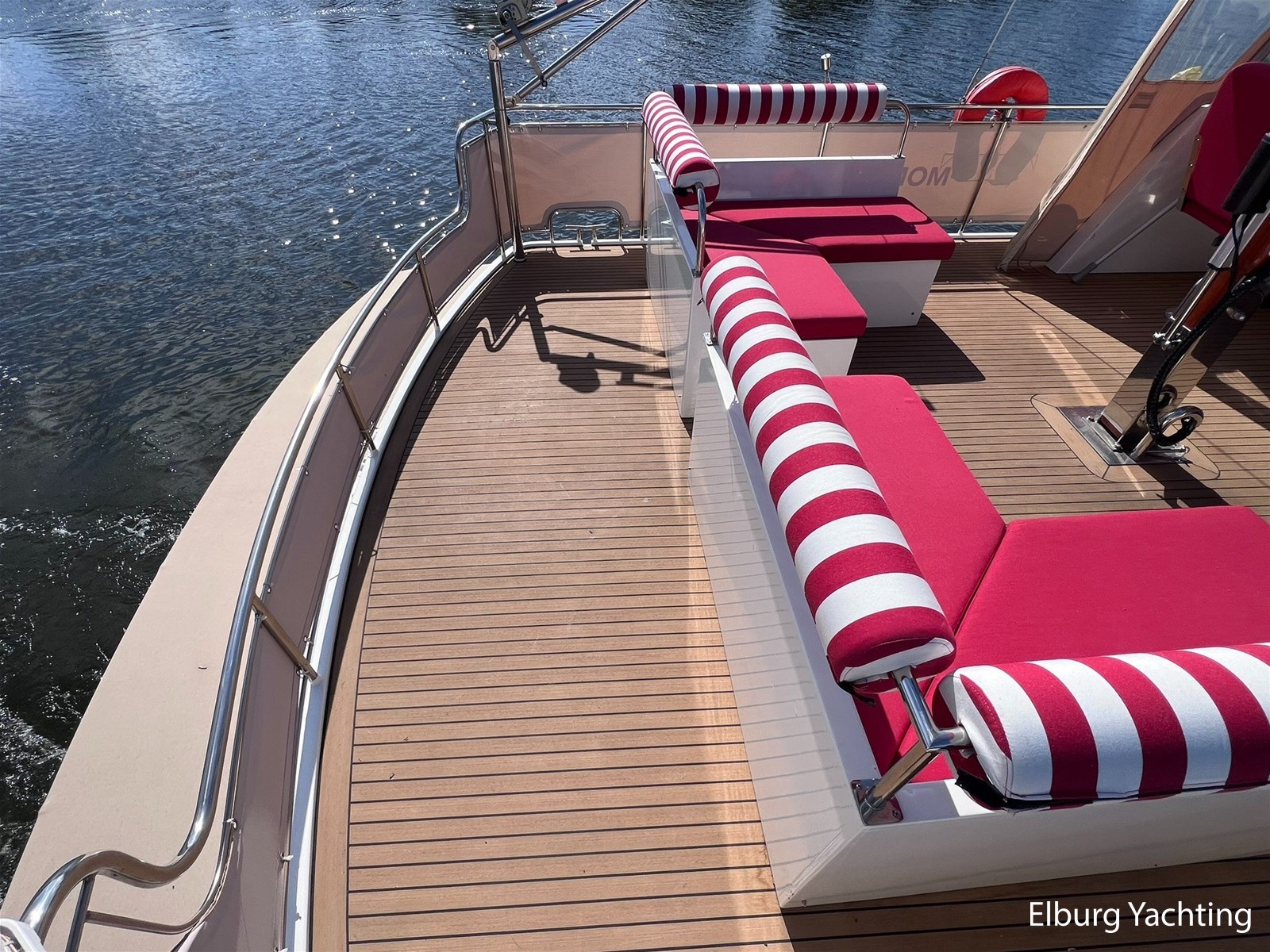

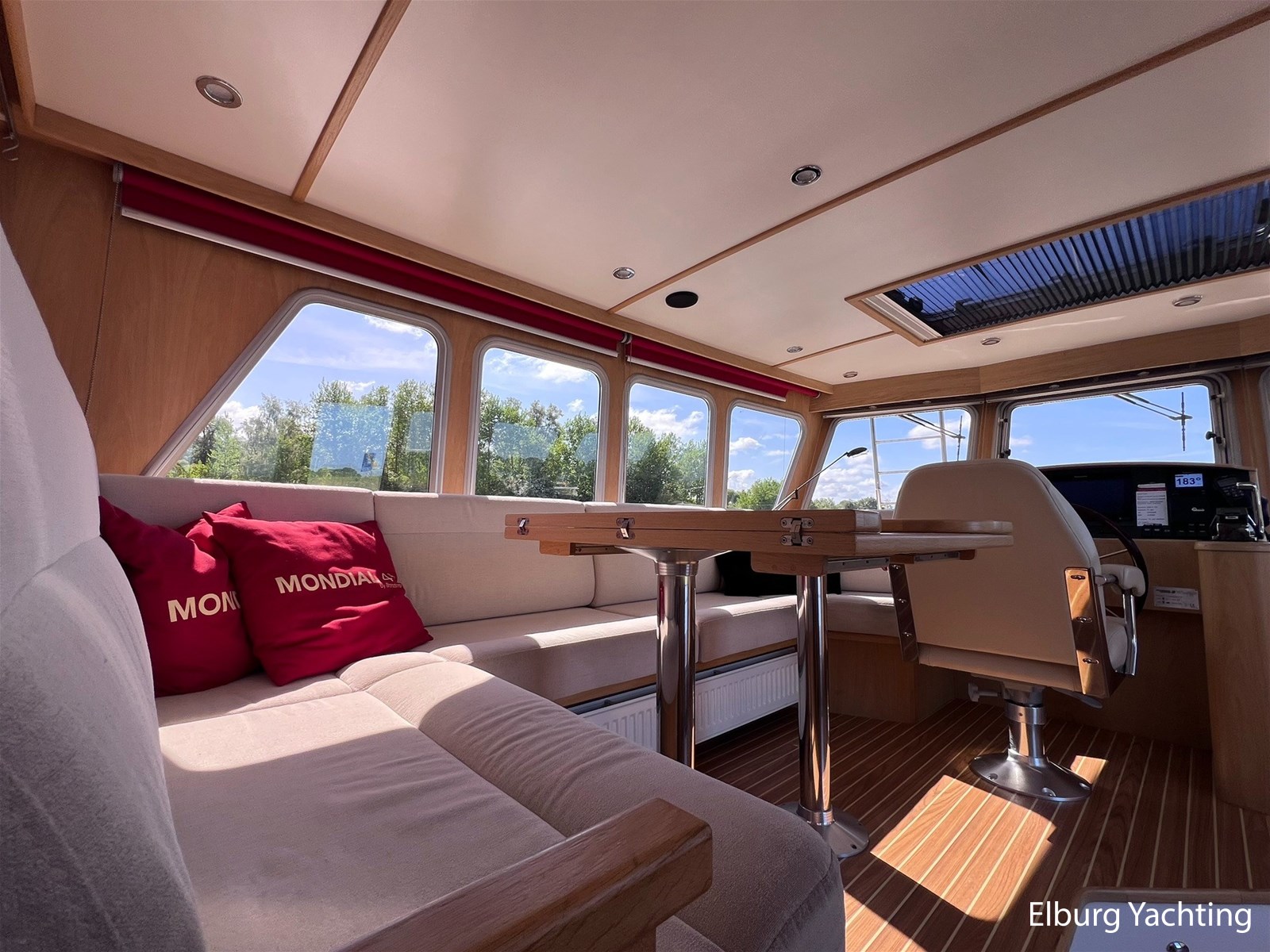

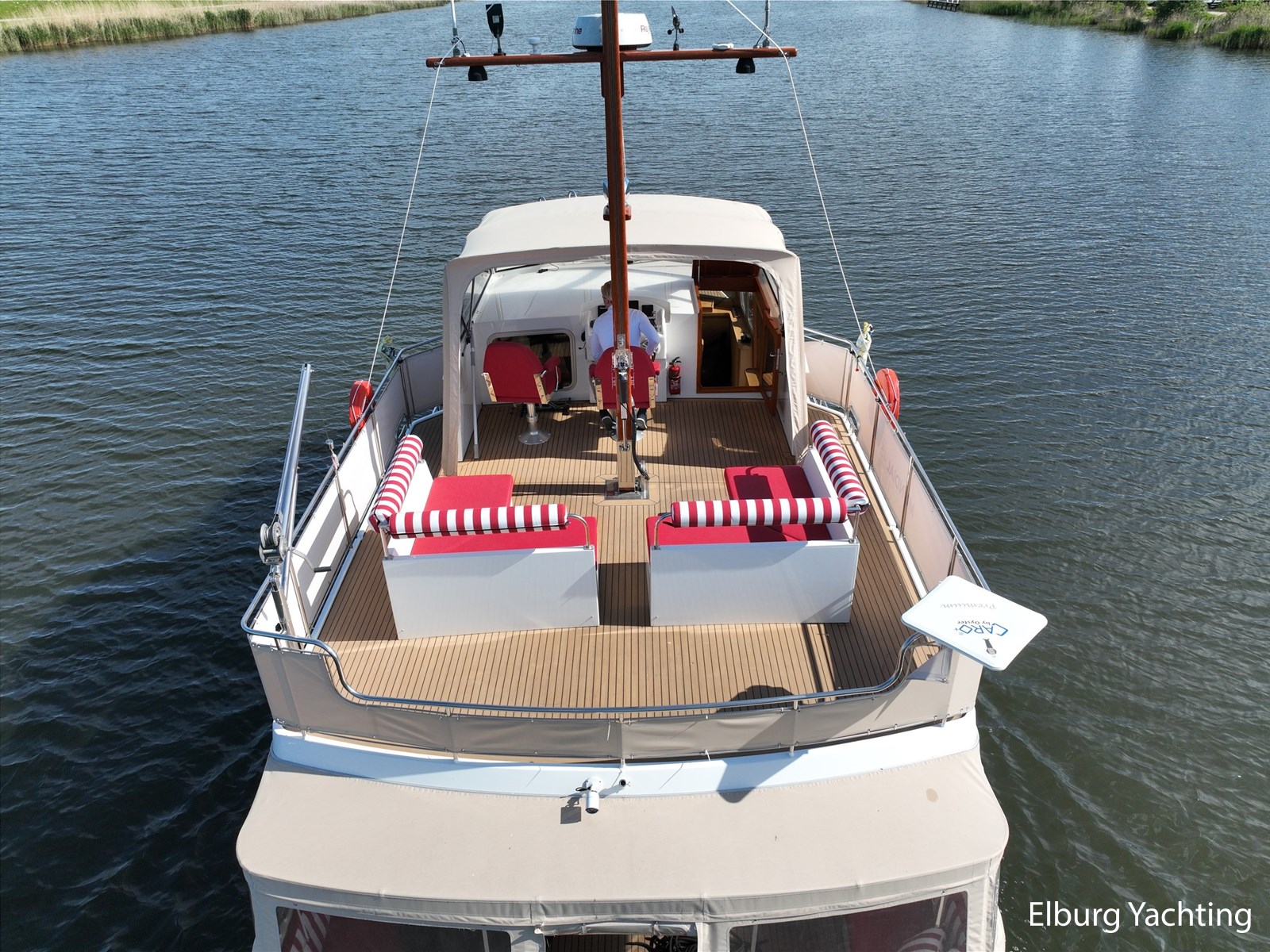

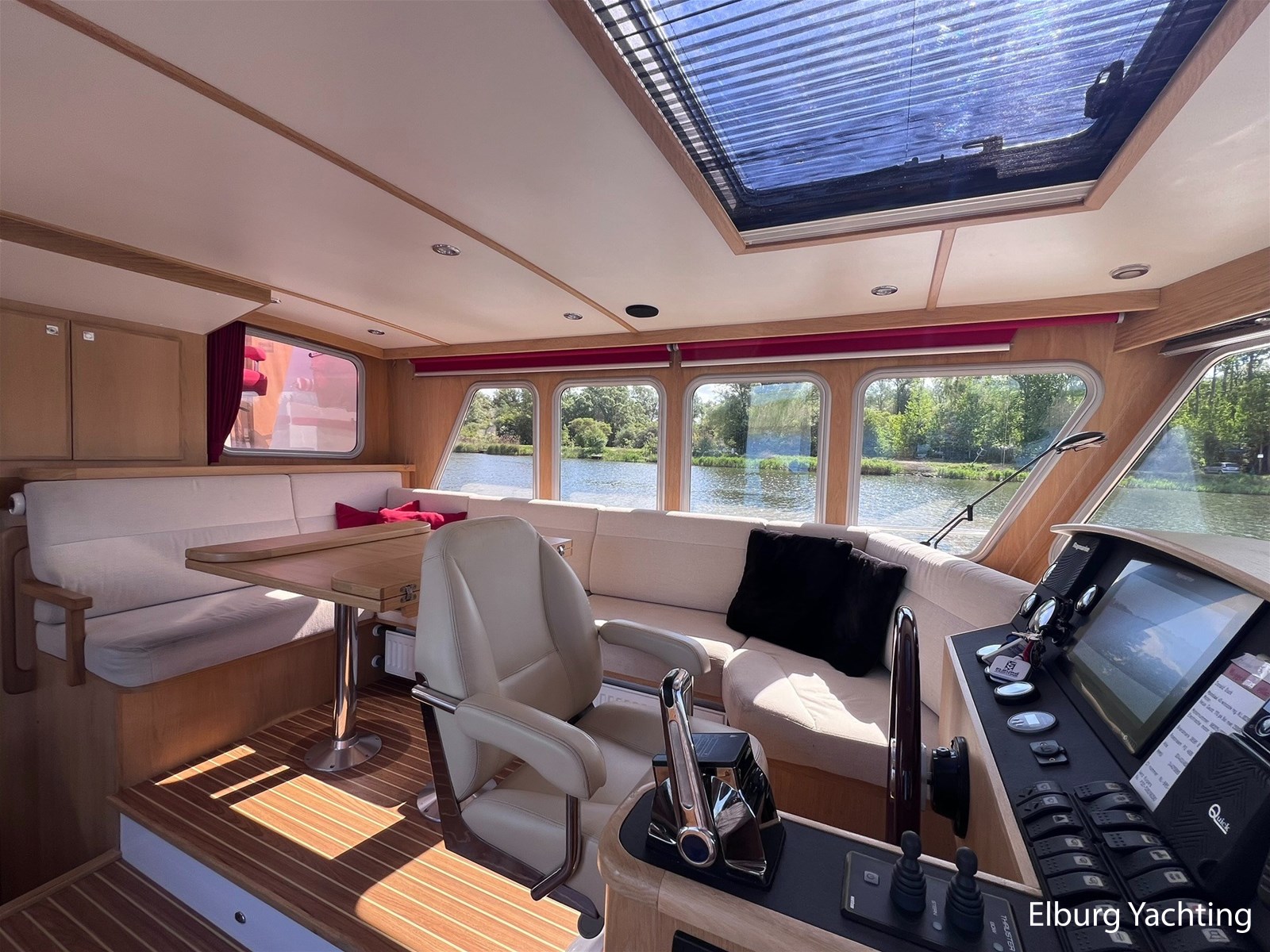

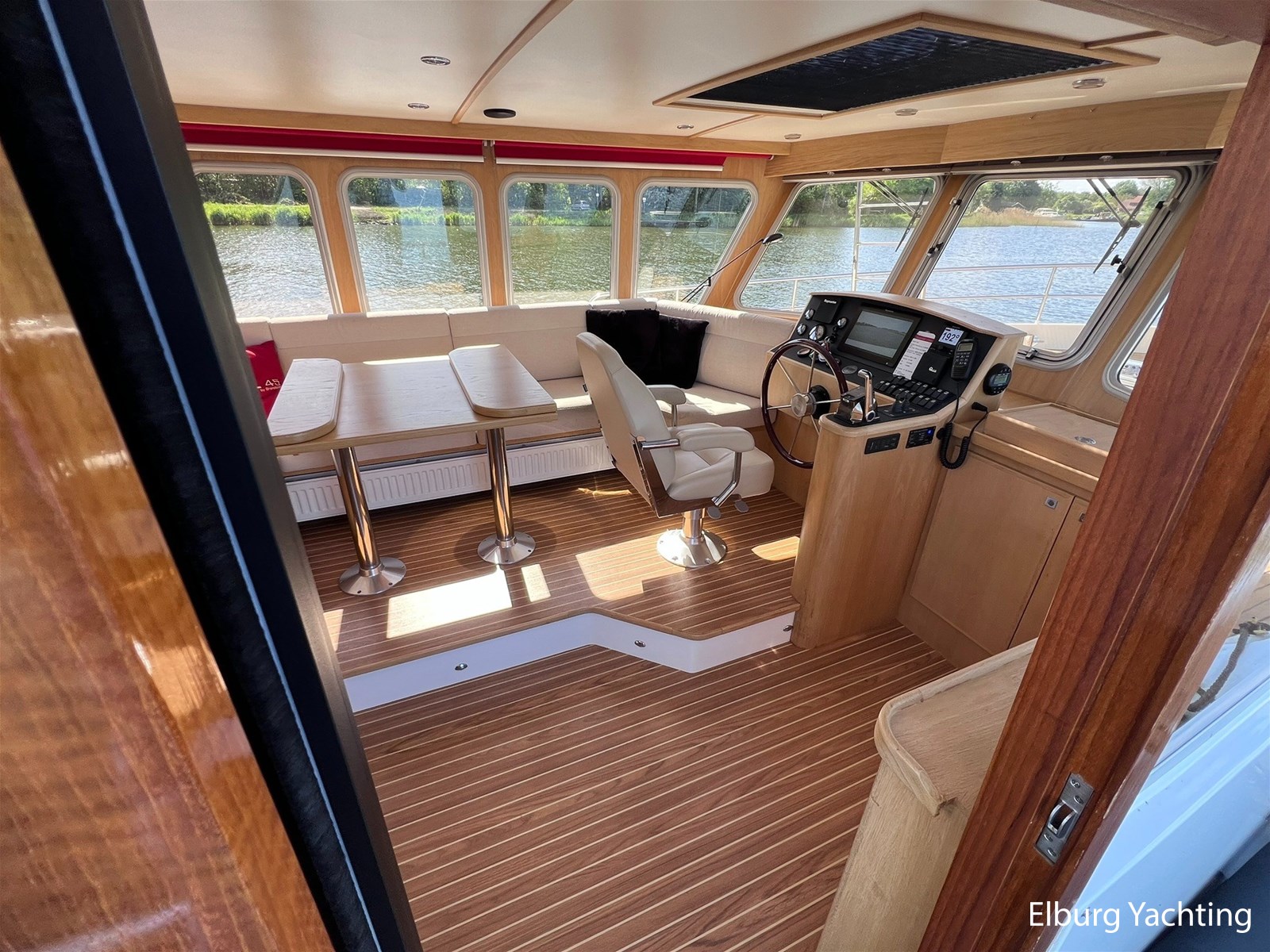

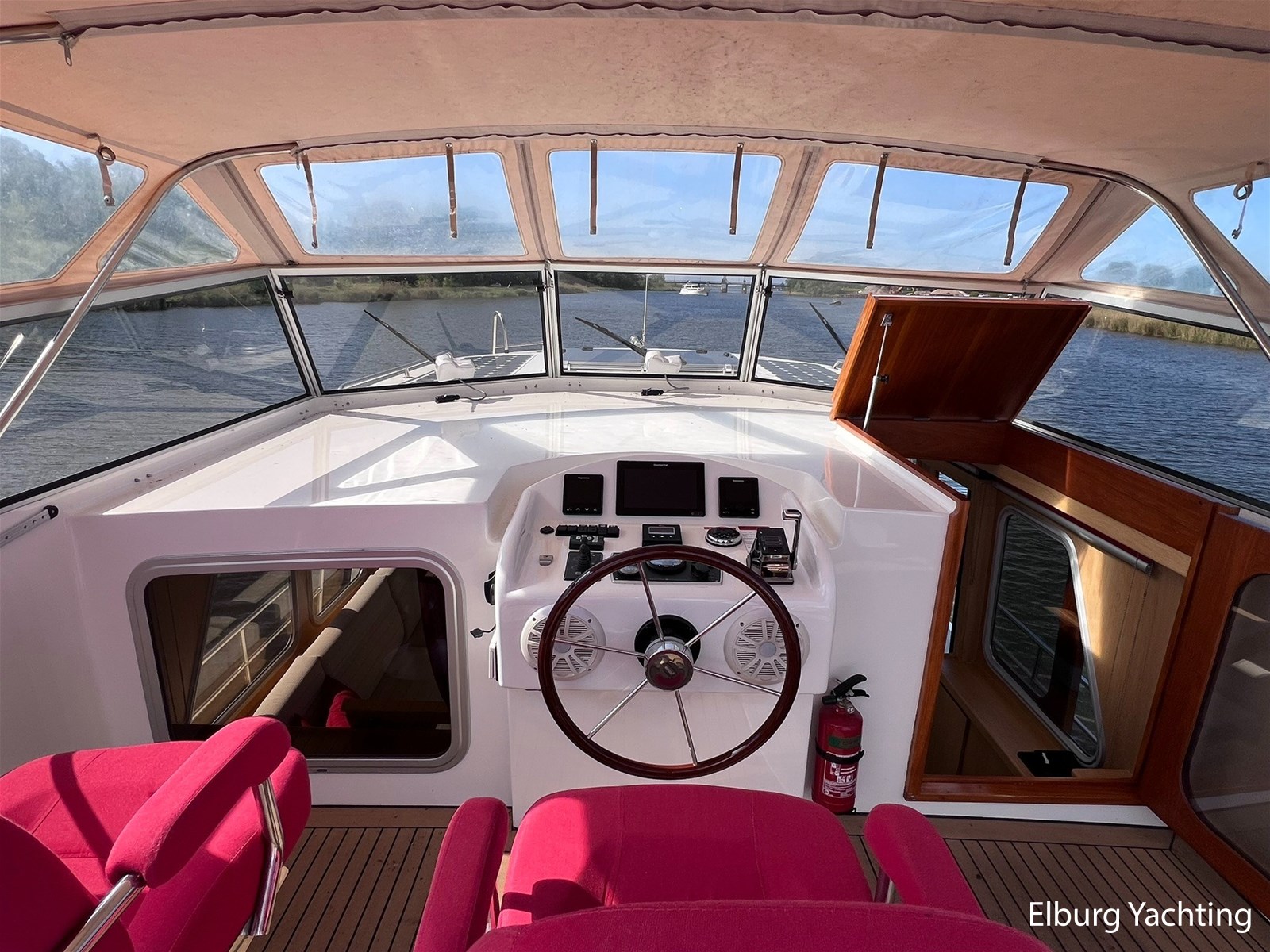

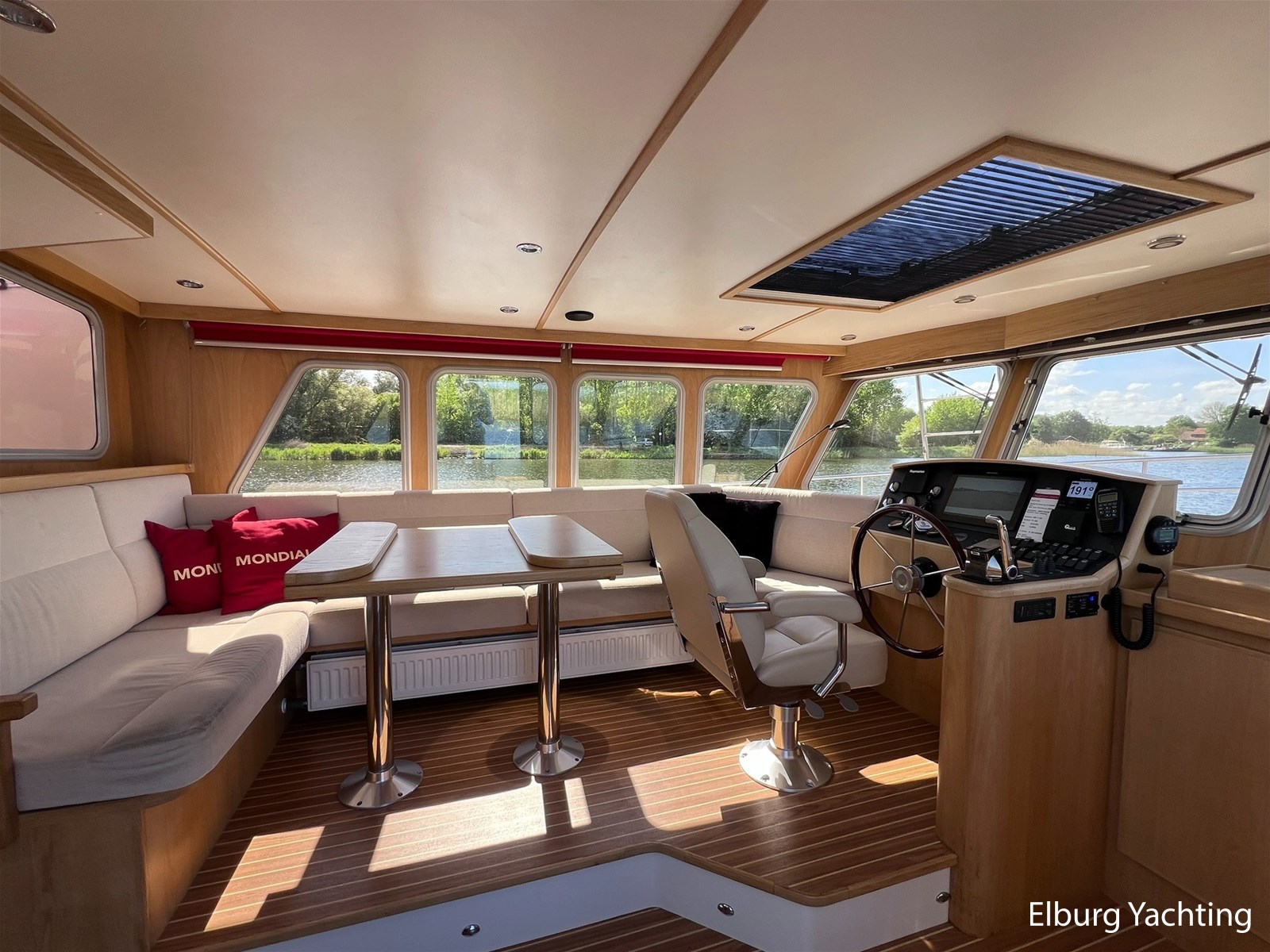

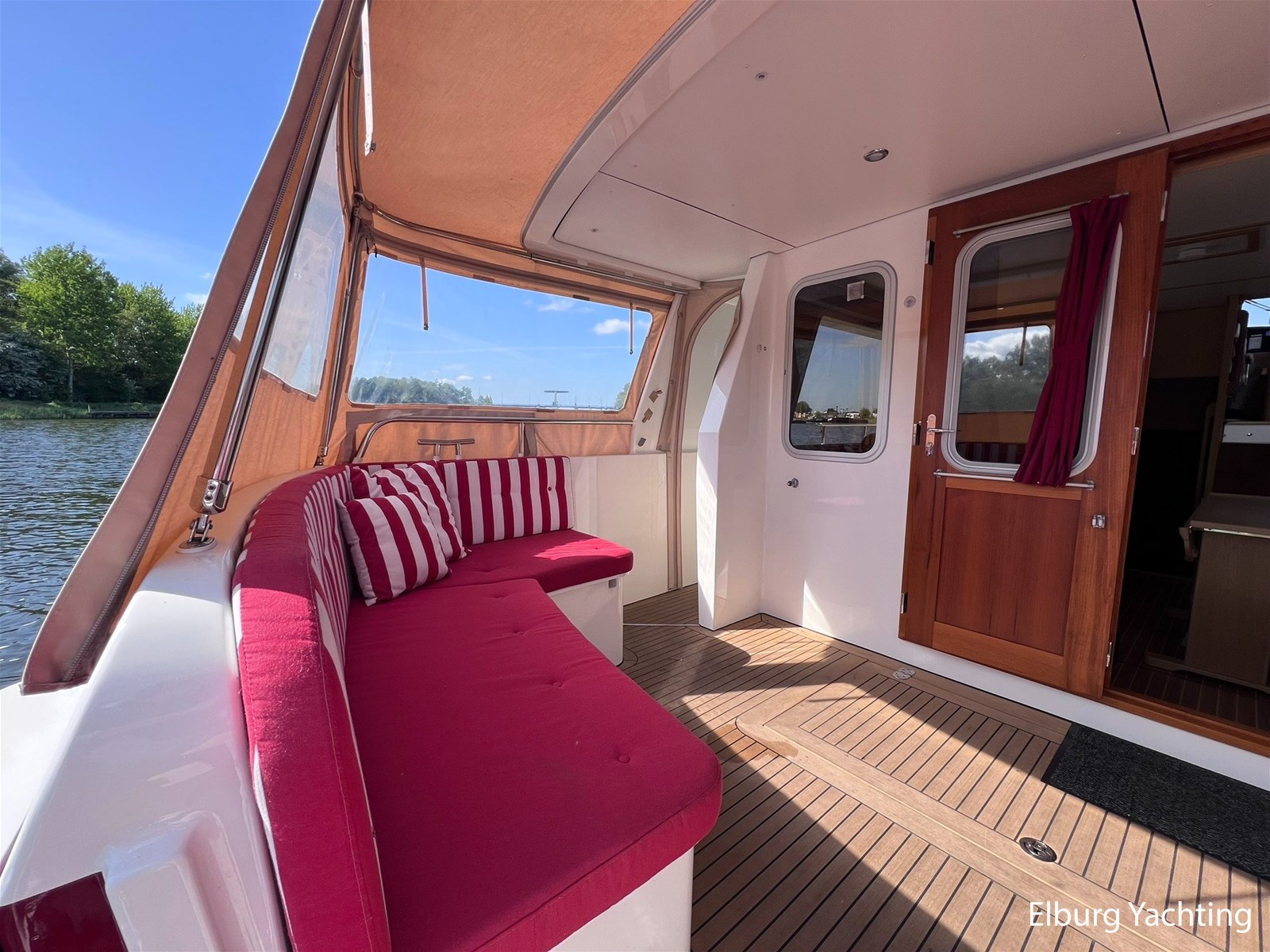

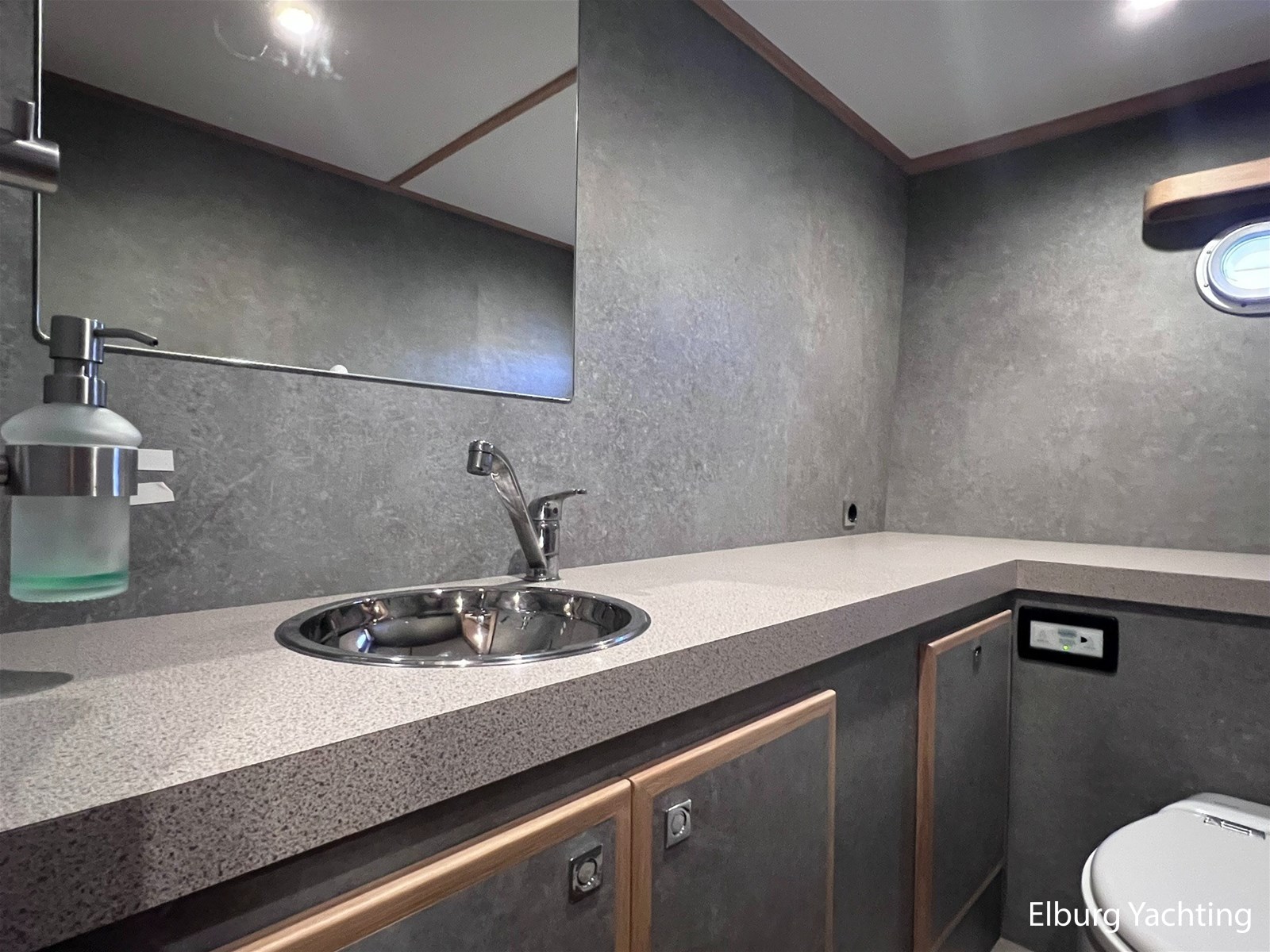

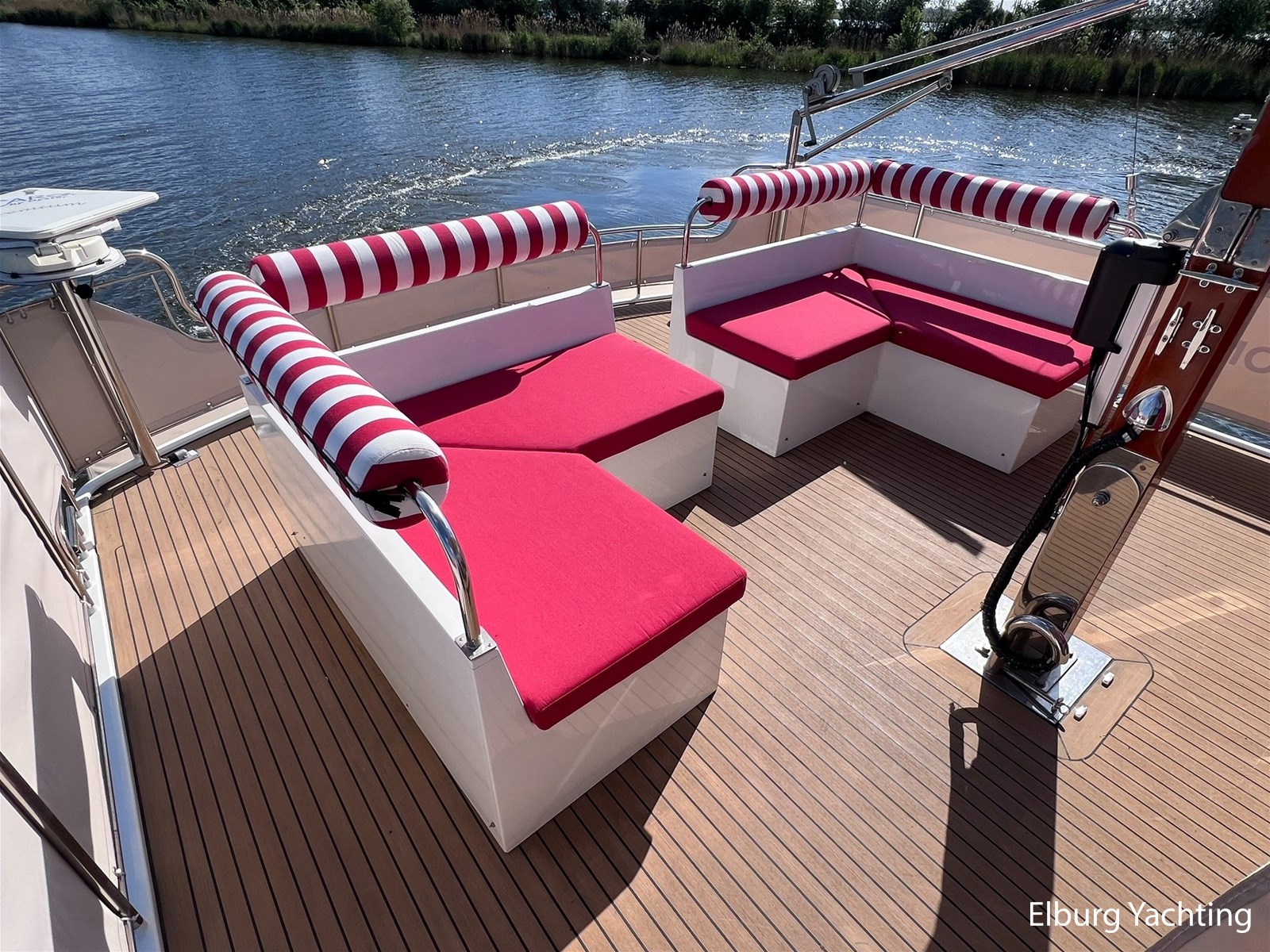

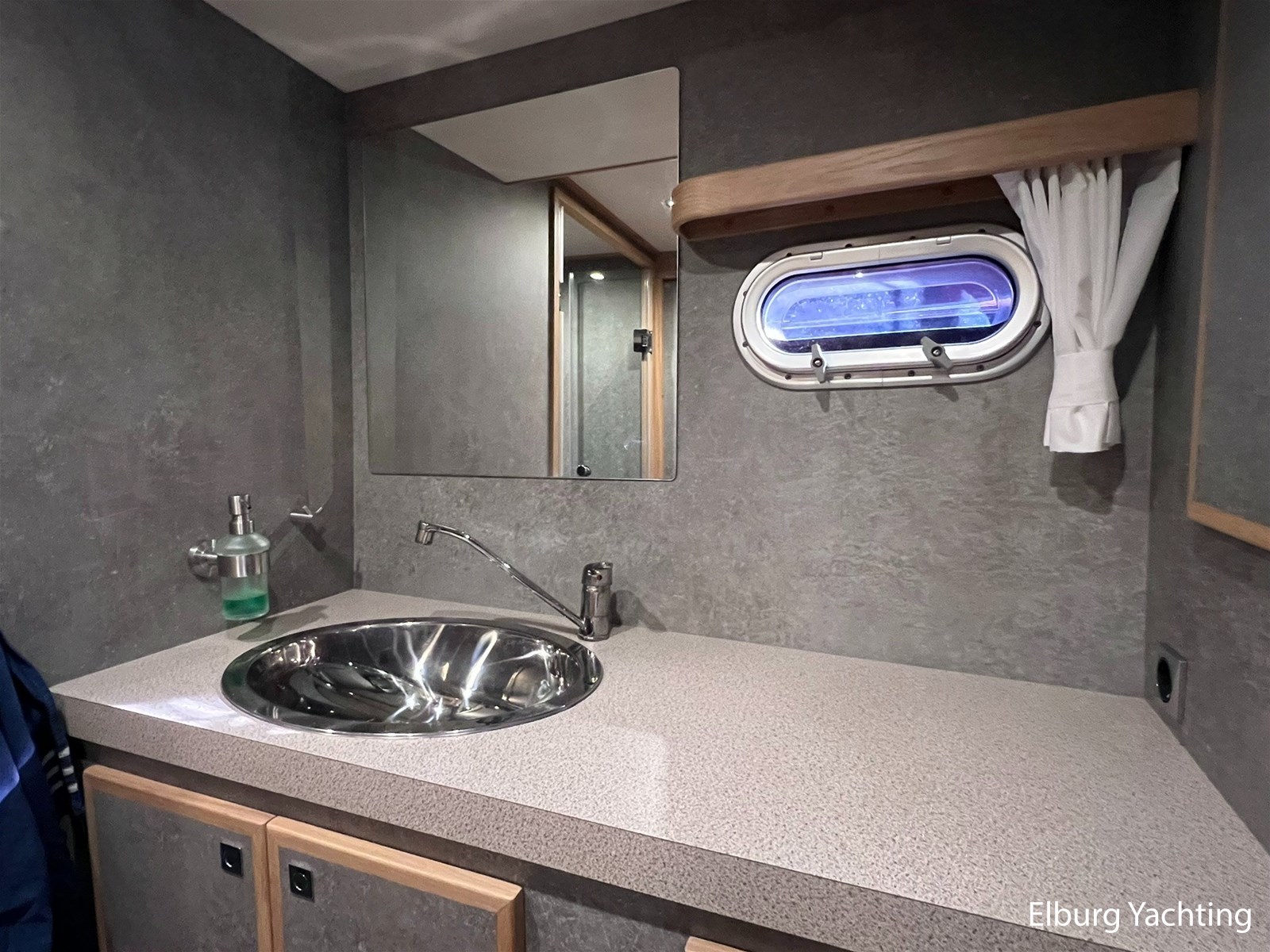

This Brandsma Mondial 45 is truly space wonder for its length. By utilizing multiple connected deck levels, a large living area has been created. The aft deck and the saloon are connected at the same level and separated by two folding, lacquered wood saloon doors. A few steps down are the two cabins, a bathroom with shower/toilet, and a separate toilet. In the wheelhouse, a large U-shaped settee is situated next to the helm station. On the starboard side, there is a side door for quick access to the side deck. The top deck can be accessed from the inside. The outdoor helm station is fully equipped with a Raymarine plotter/autopilot and depth sounder. Two comfortable helm chairs are fixed on the deck. At the rear of the upper deck, there is a large outdoor seating area with removable cushions and matching covers. The transmission is quiet and is very low in vibrations. A remote control is included, making mooring child's play, with direct control for the bow/stern thrusters and the main engine for forward and reverse.

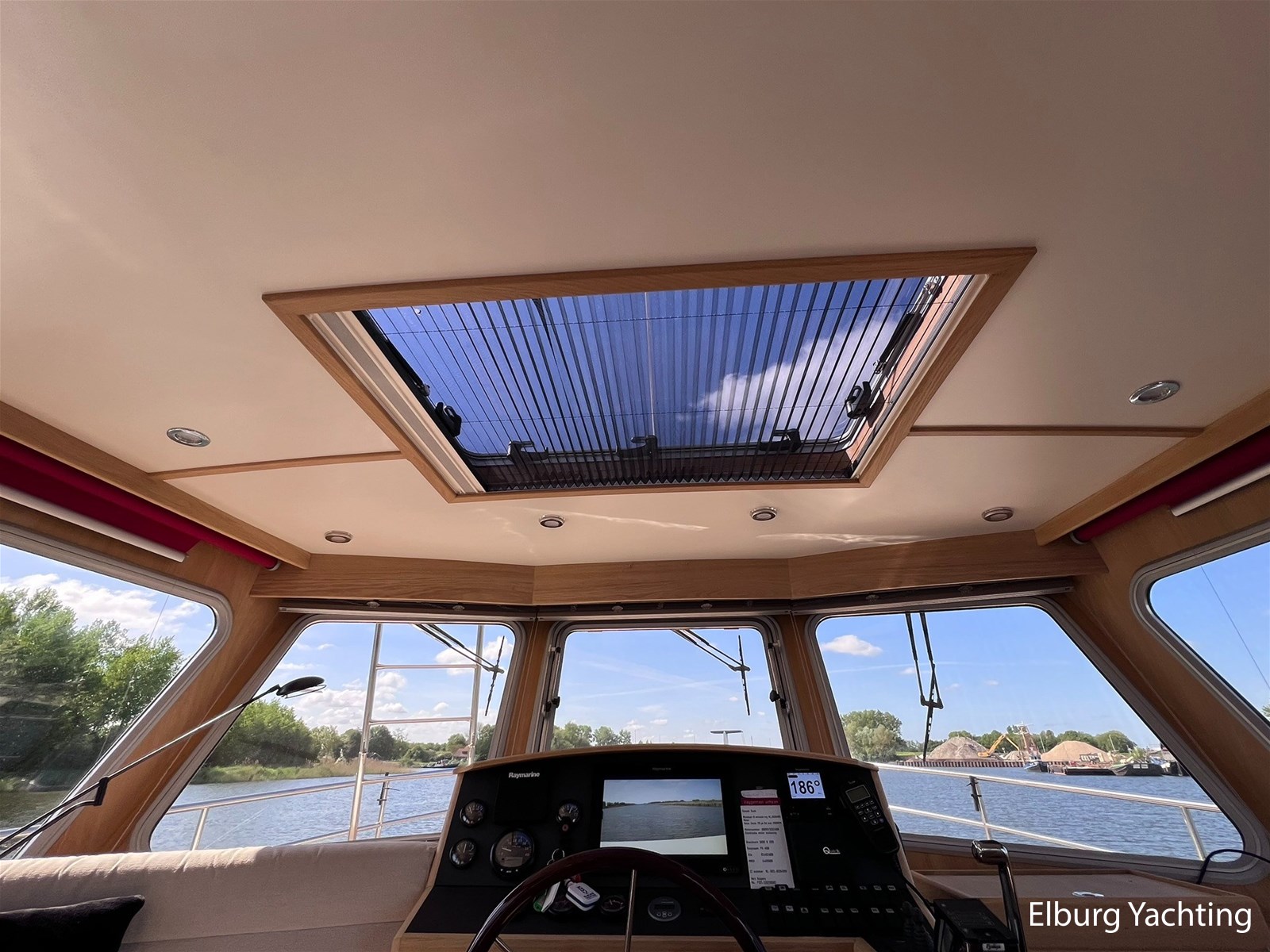

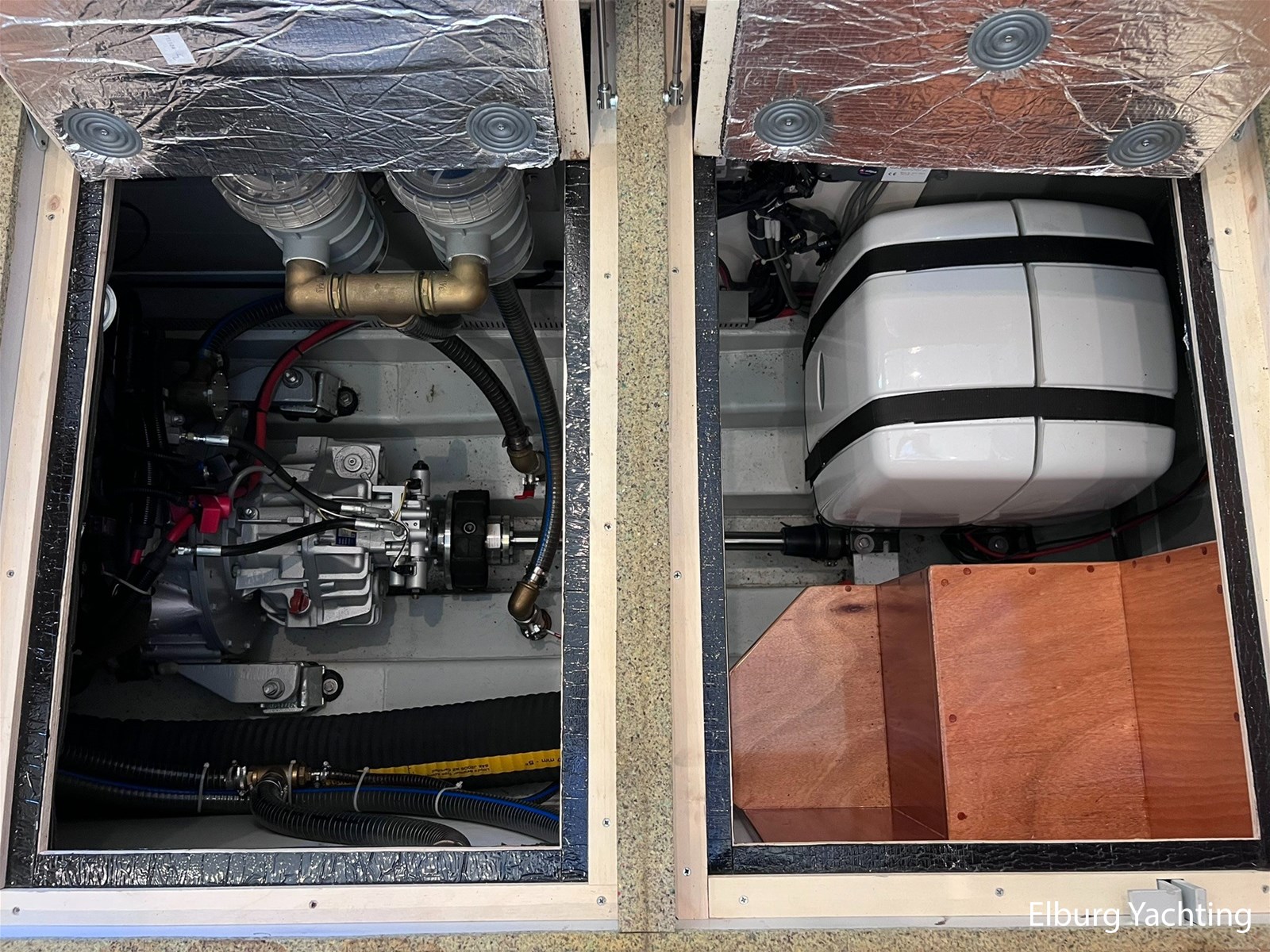

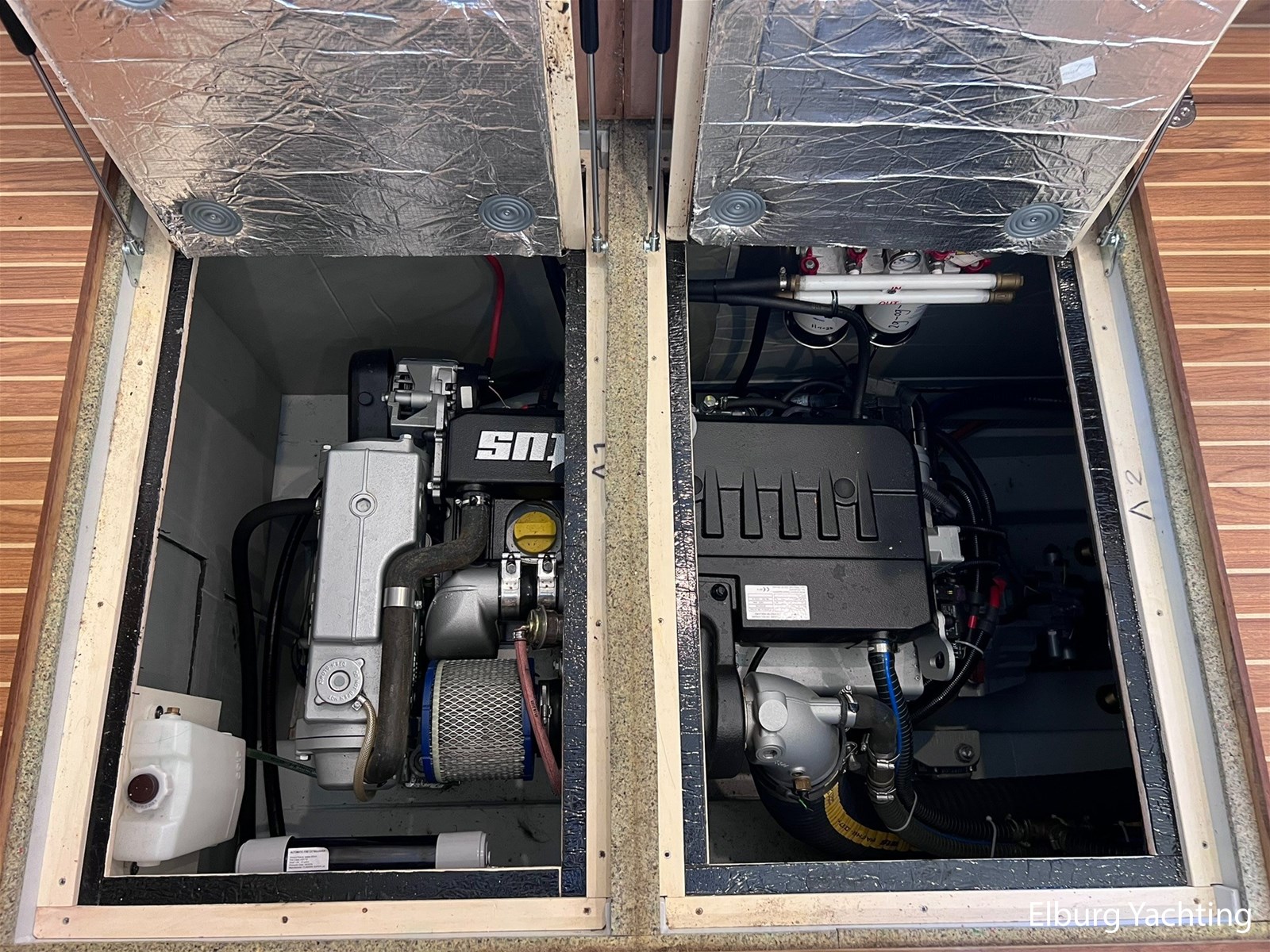

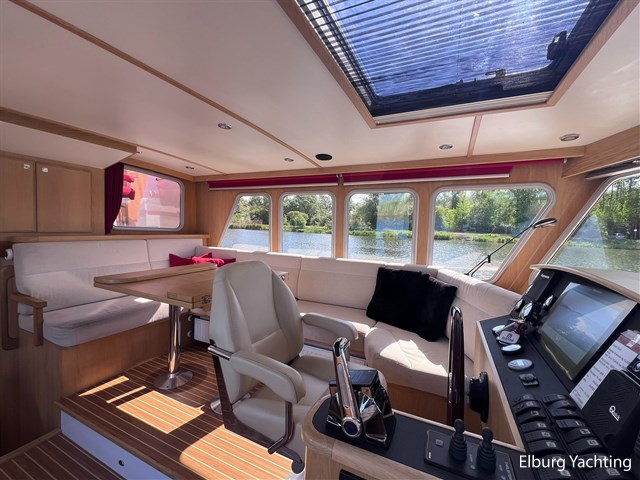

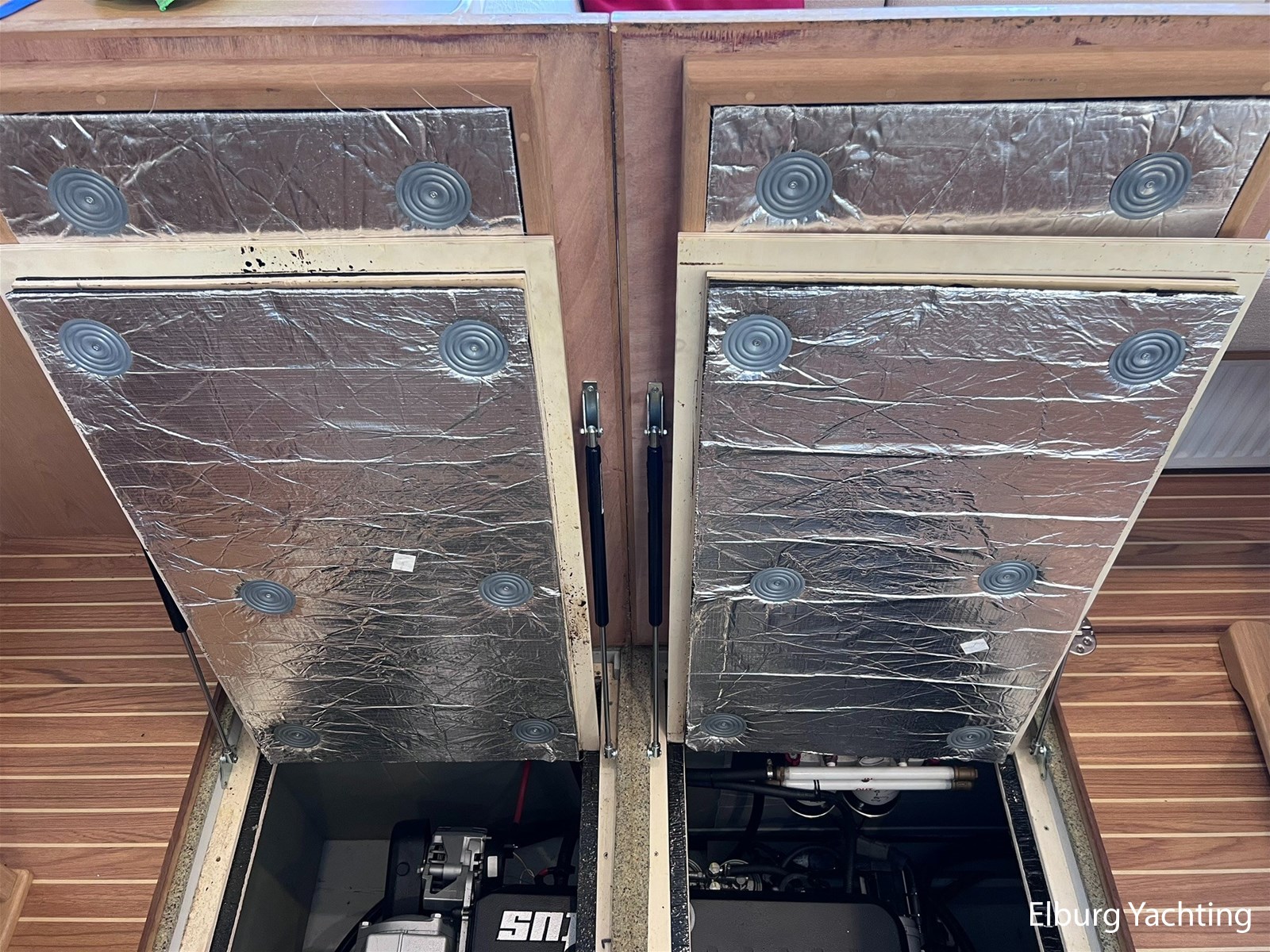

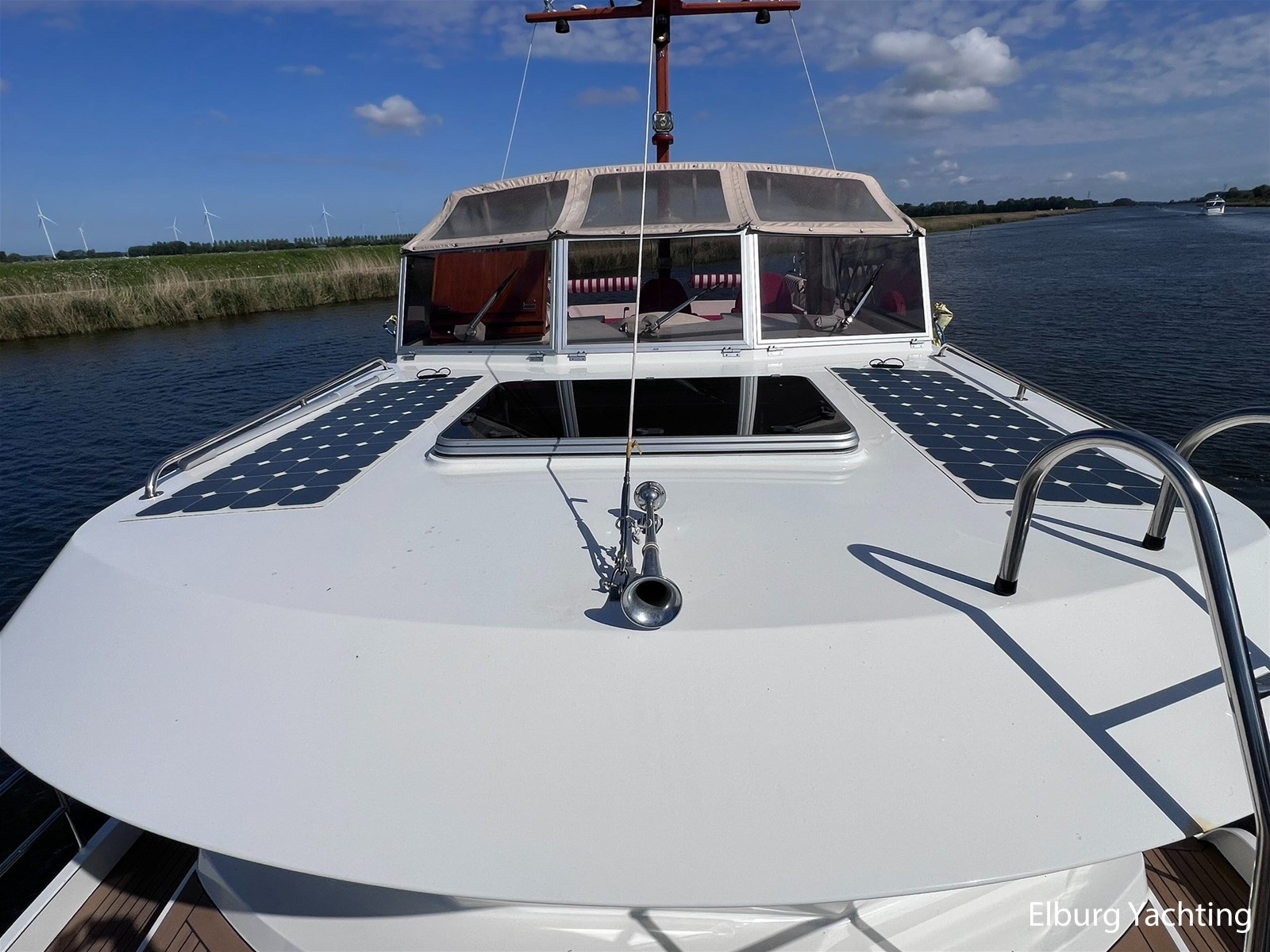

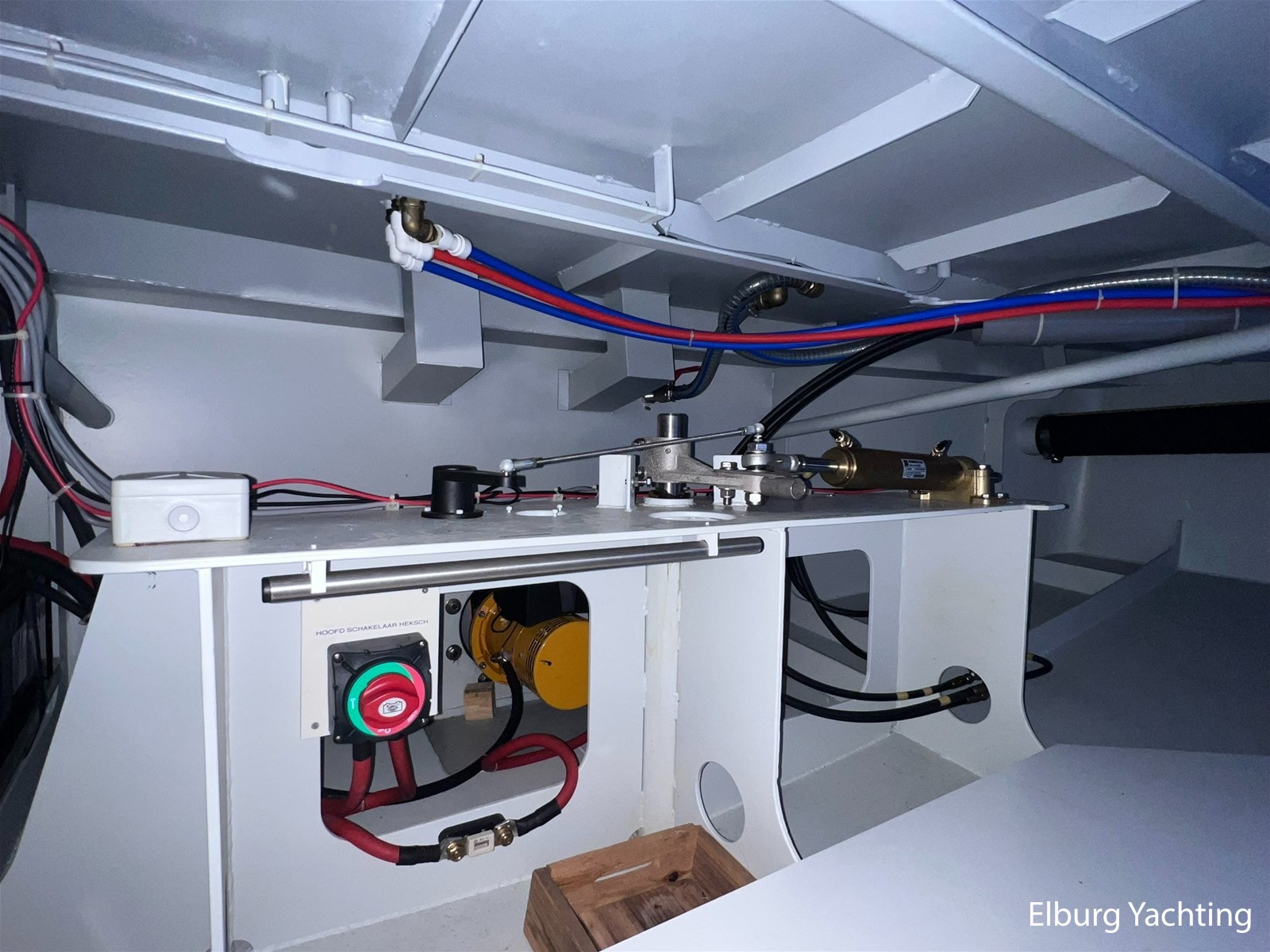

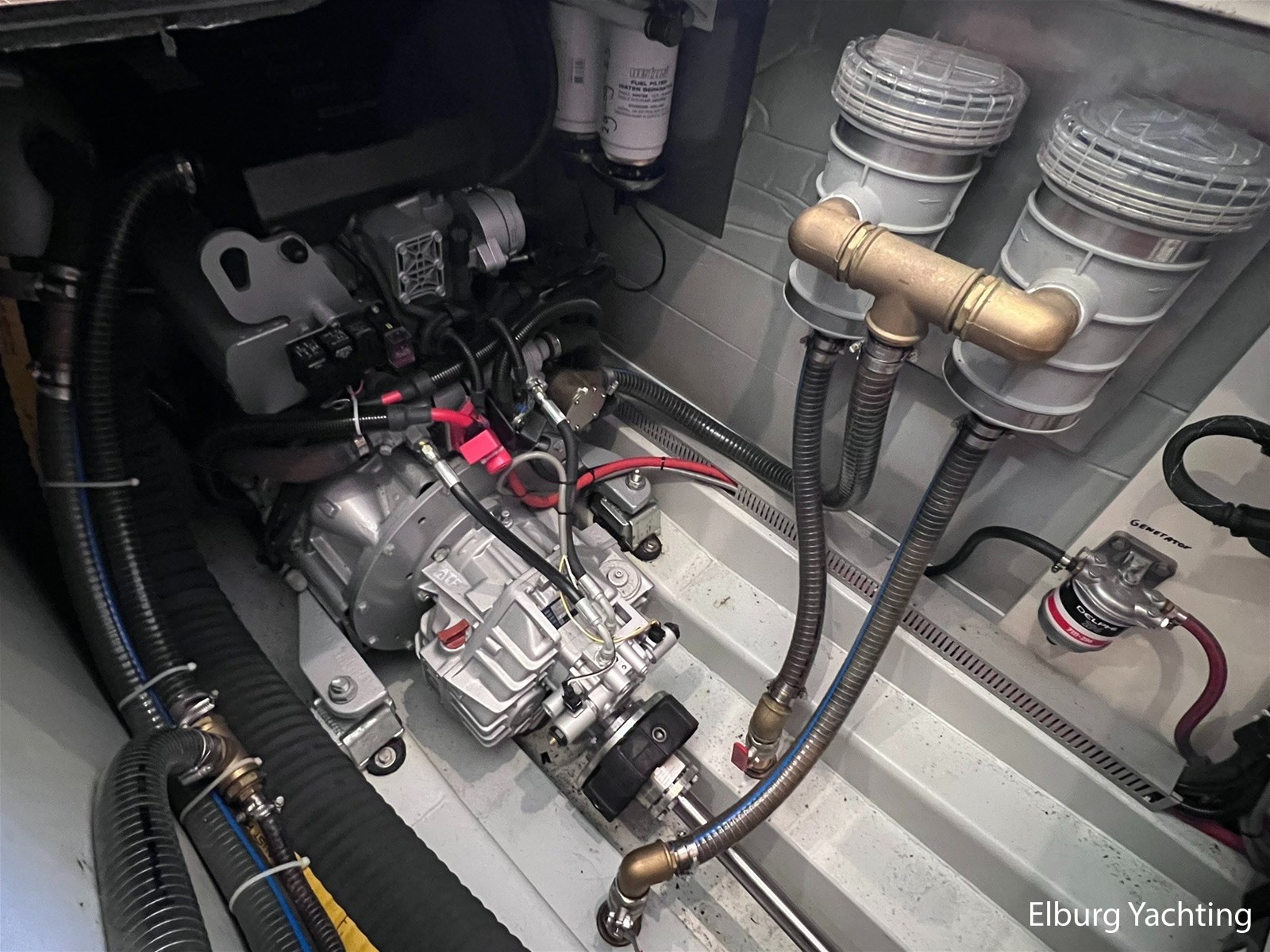

Additionally, this Brandsma Mondial 45 is equipped with a rear-view camera displayed on the chartplotter, tank level monitoring via the plotter, a Victron Cerbo display, a large sliding sunroof above the interior helm station, and a TV in the saloon. The engine room is double insulated, and two solar panels are installed.

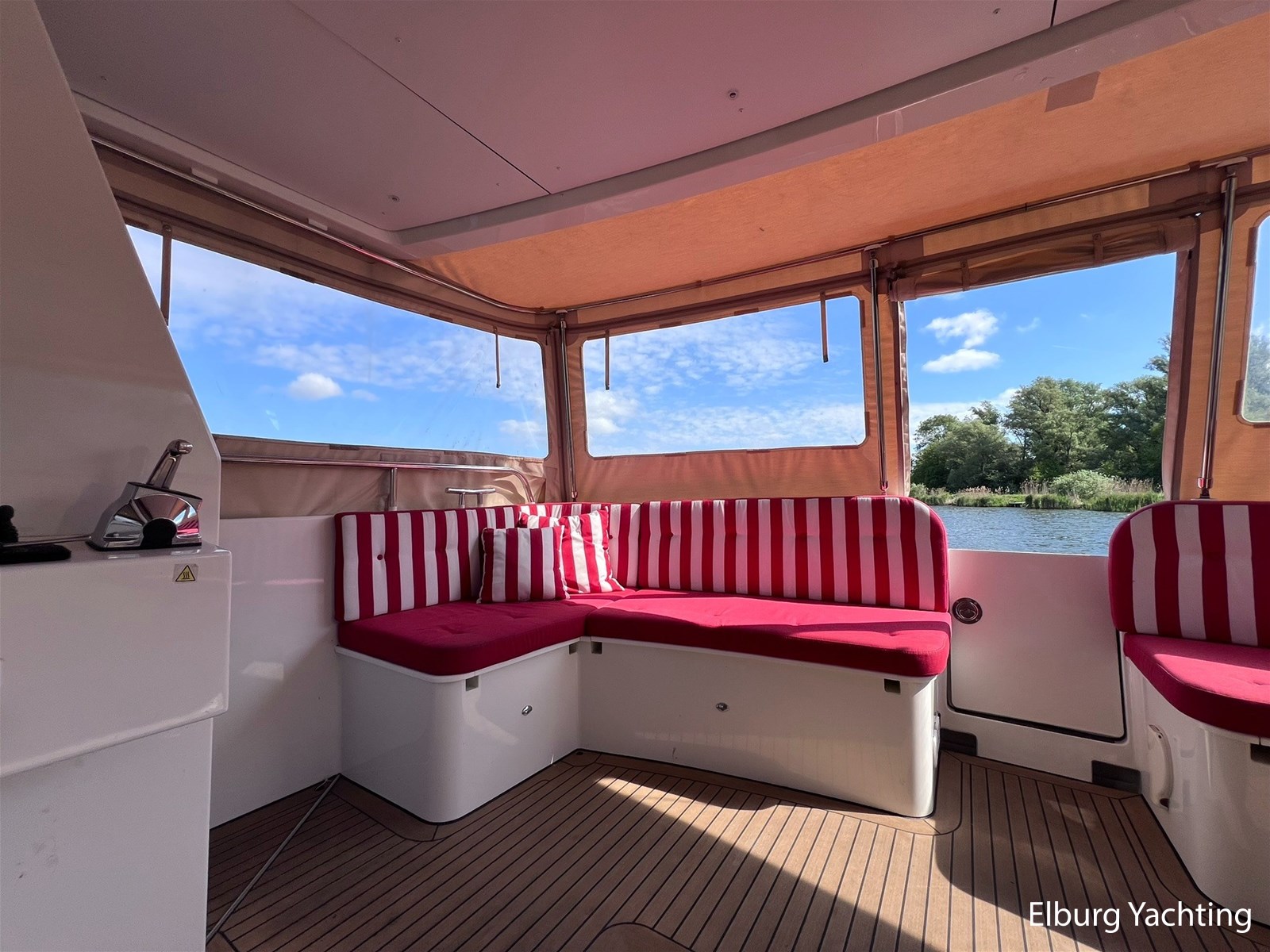

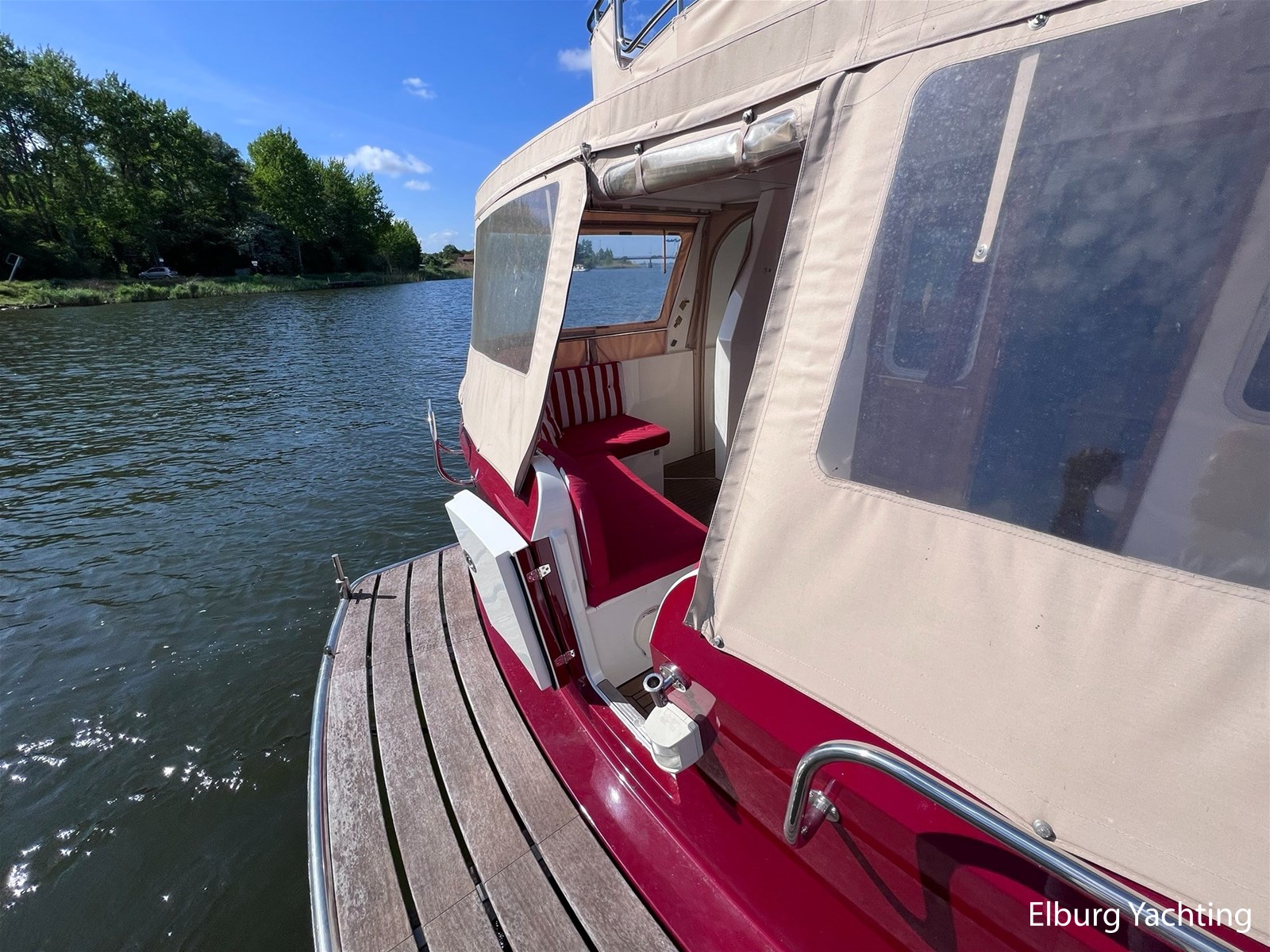

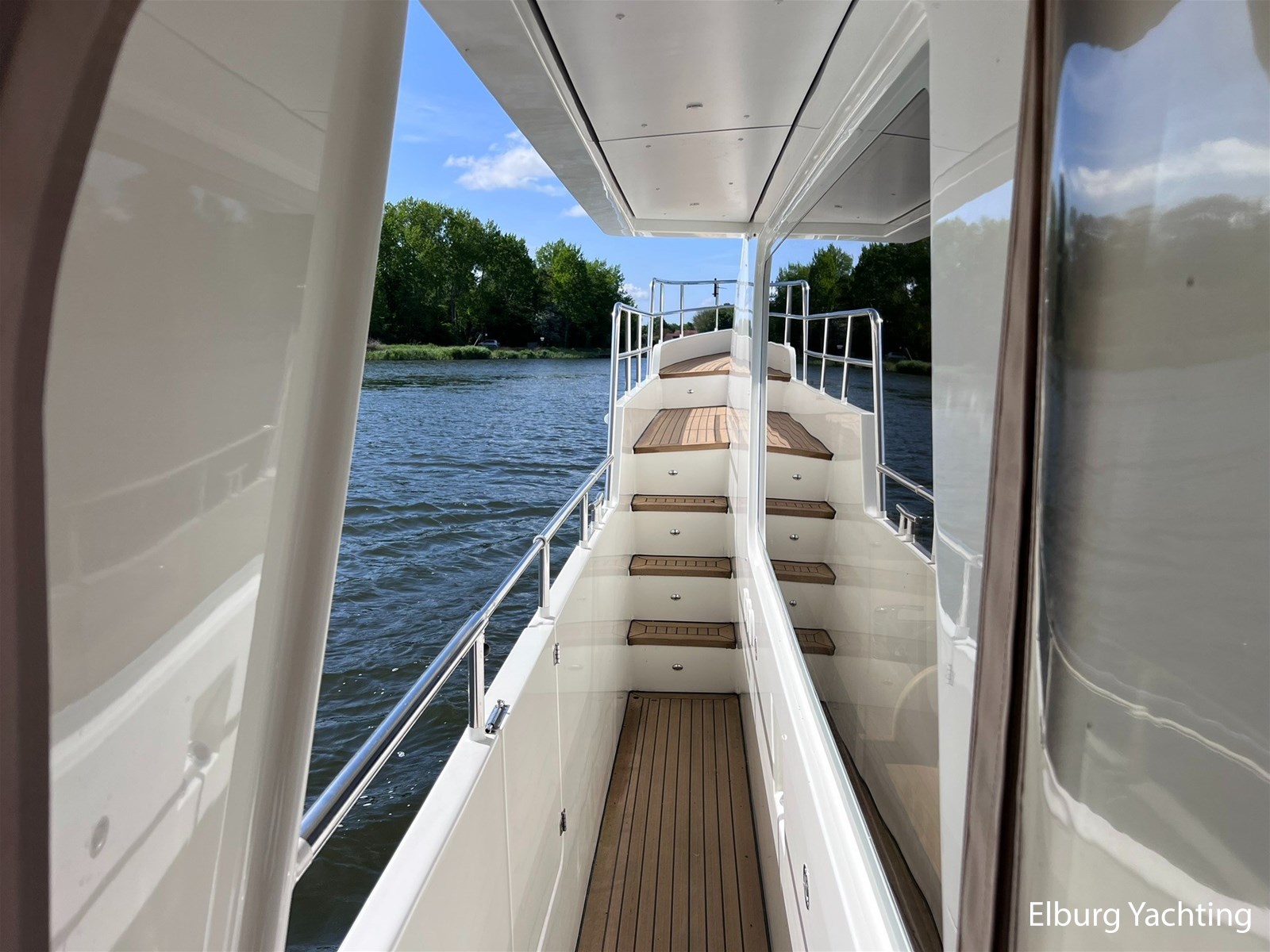

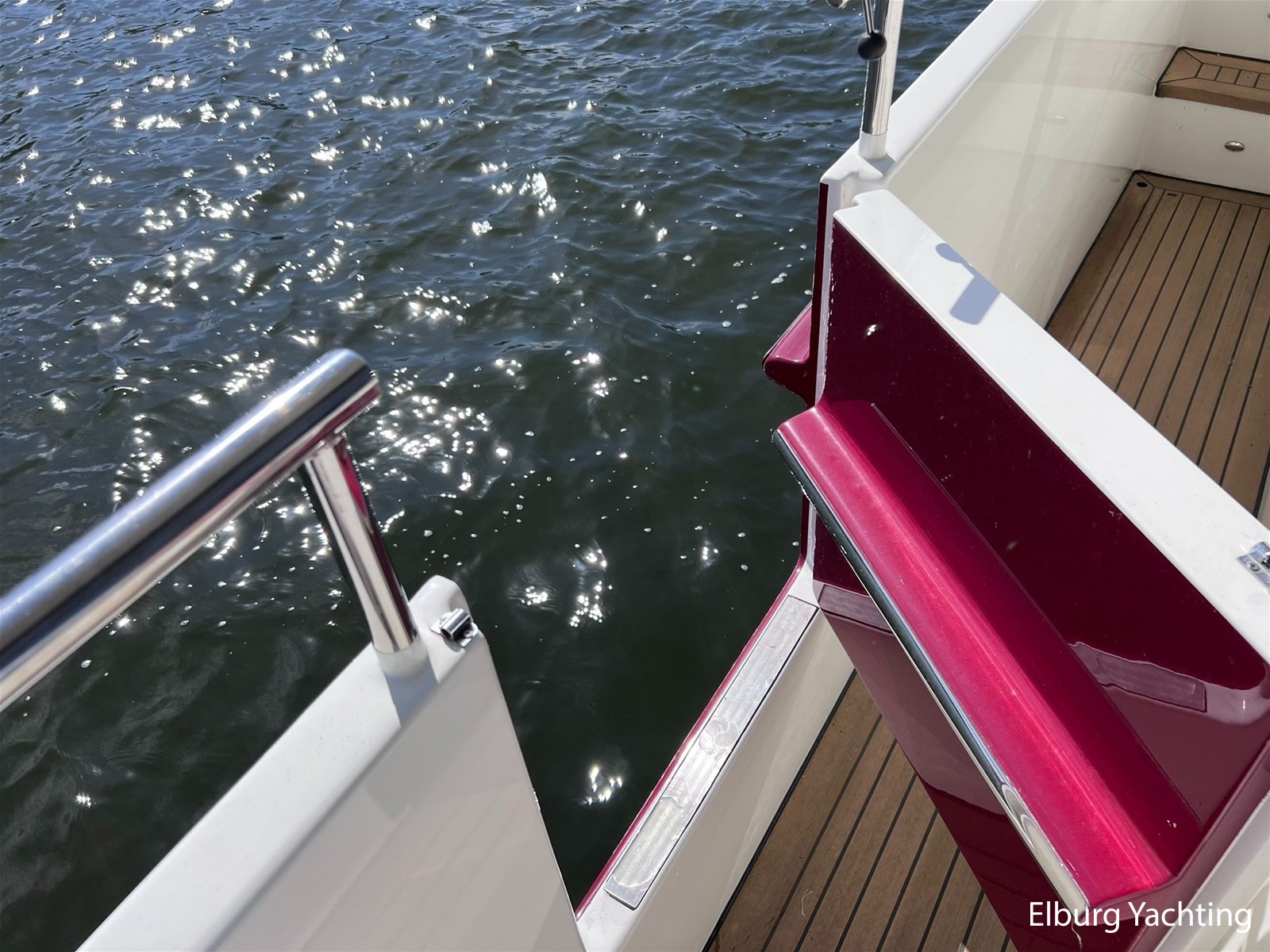

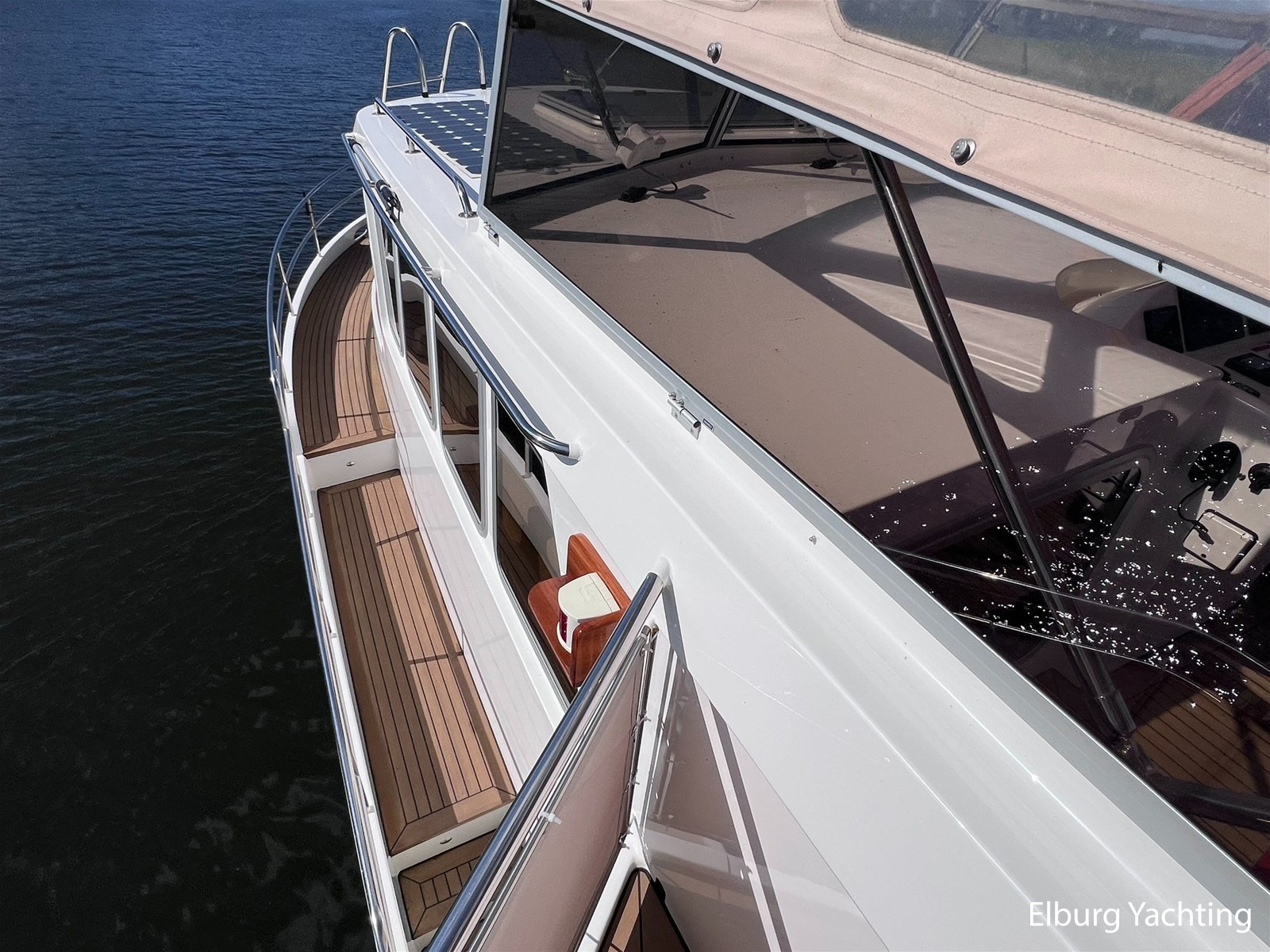

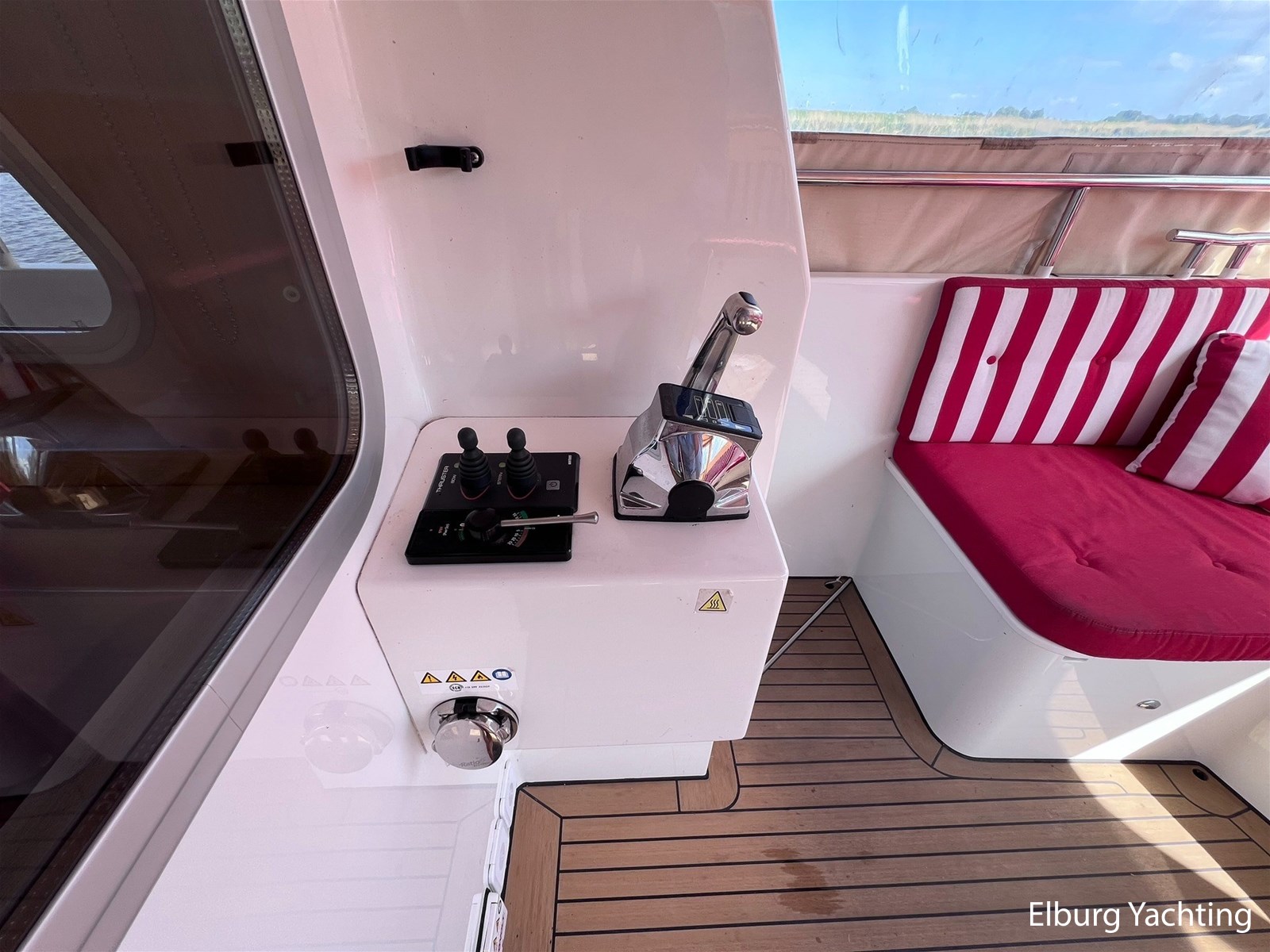

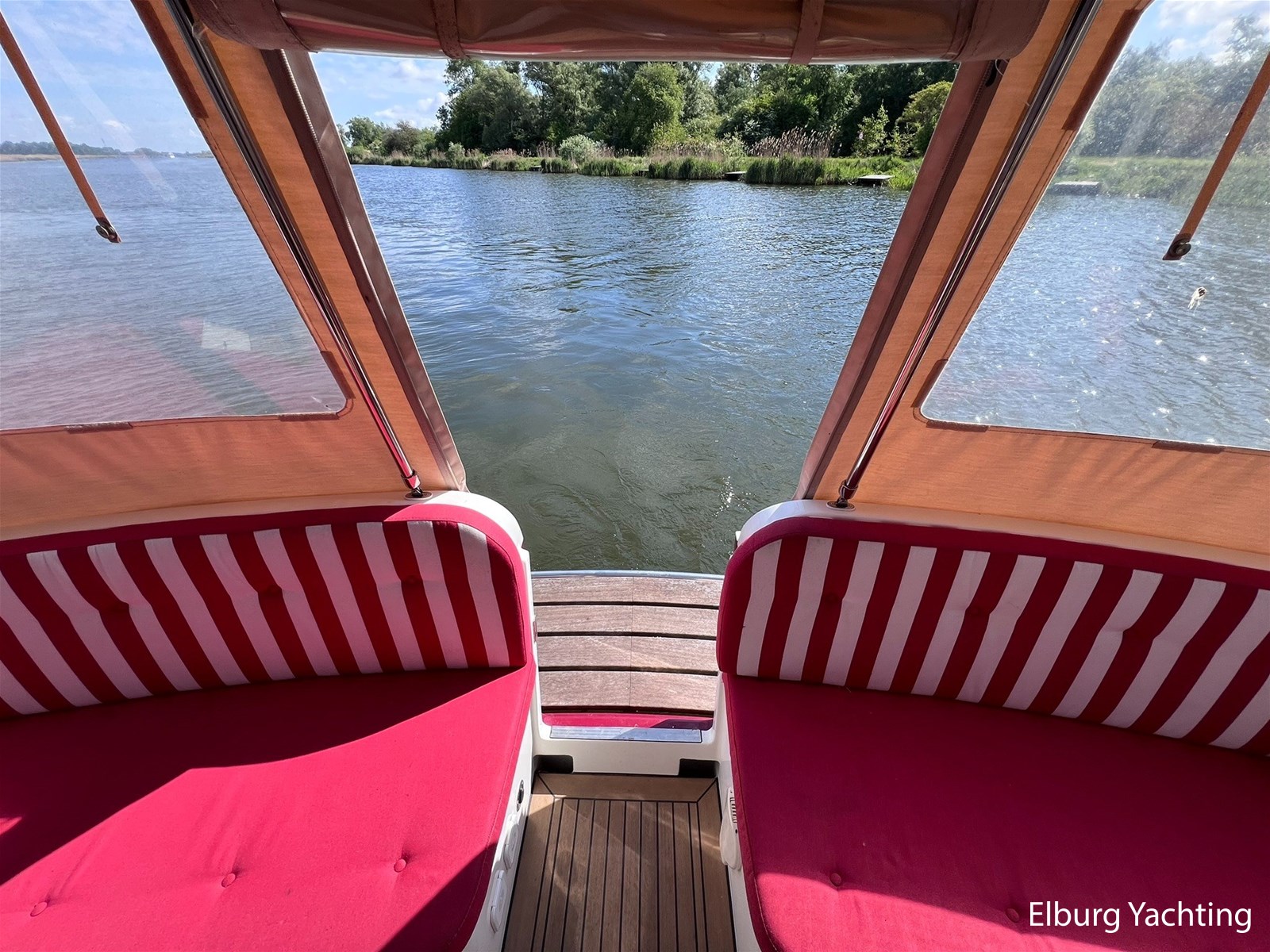

The boat also features a third outdoor helm station with throttle control, bow and stern thrusters, and rudder control, a mosquito screen door for the starboard side door, storage lockers in the open cockpit with matching cushion set, and two side doors in the side decks. The aft deck can be fully enclosed with a canopy, as can the upper helm station. The mast is electrically foldable. With the windows folded down, the air draft is approximately 3.5 meters.
For questions and/or to schedule an appointment, you are welcome seven days a week at Elburg Yachting.
- Material hull
- Steel - Wine Red
- Material superstructure
- Steel - White
- Material deck

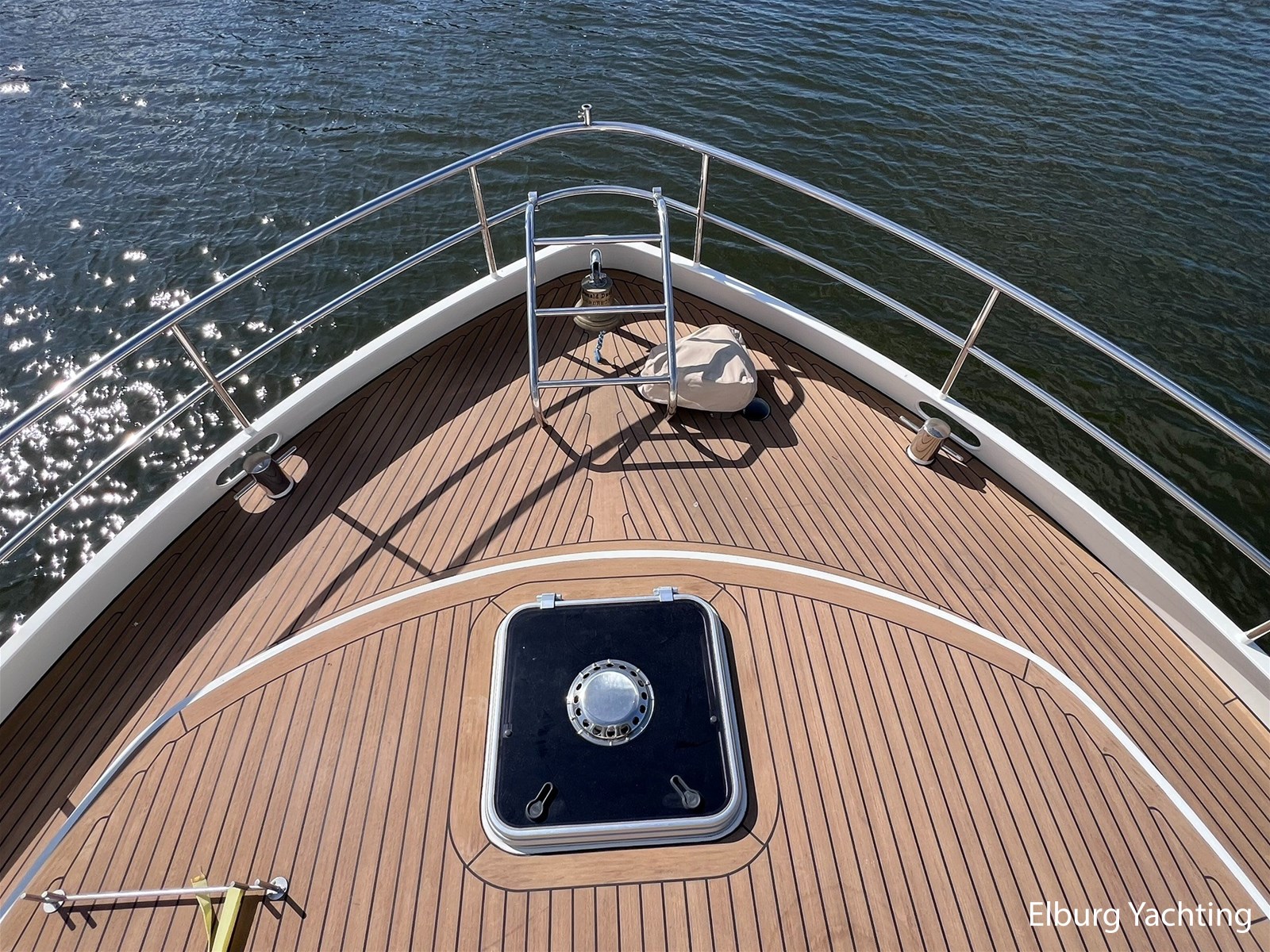

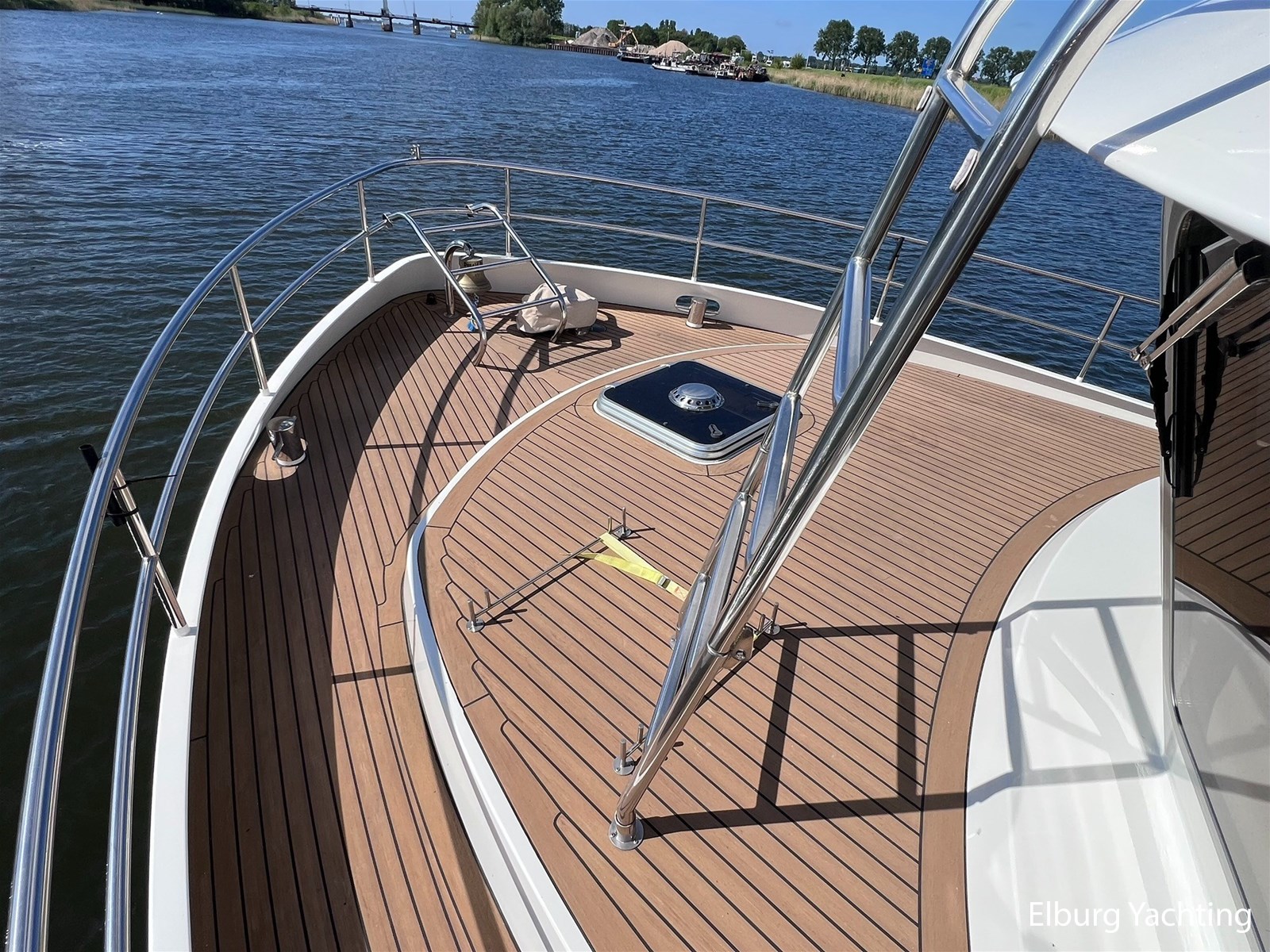

- Synthetik teakdeck all around and in open cockpit
- Hull shape
- Chine hull with protected rudder
- Displacement
- Appr. 26 Tons
- Steering position(s)
- 3 x (1 x inside + 1 x flybridge + 1 x aft deck)
- Davits
- Single stainless steel davit present on aft deck, loading capacity up to max. 200kg

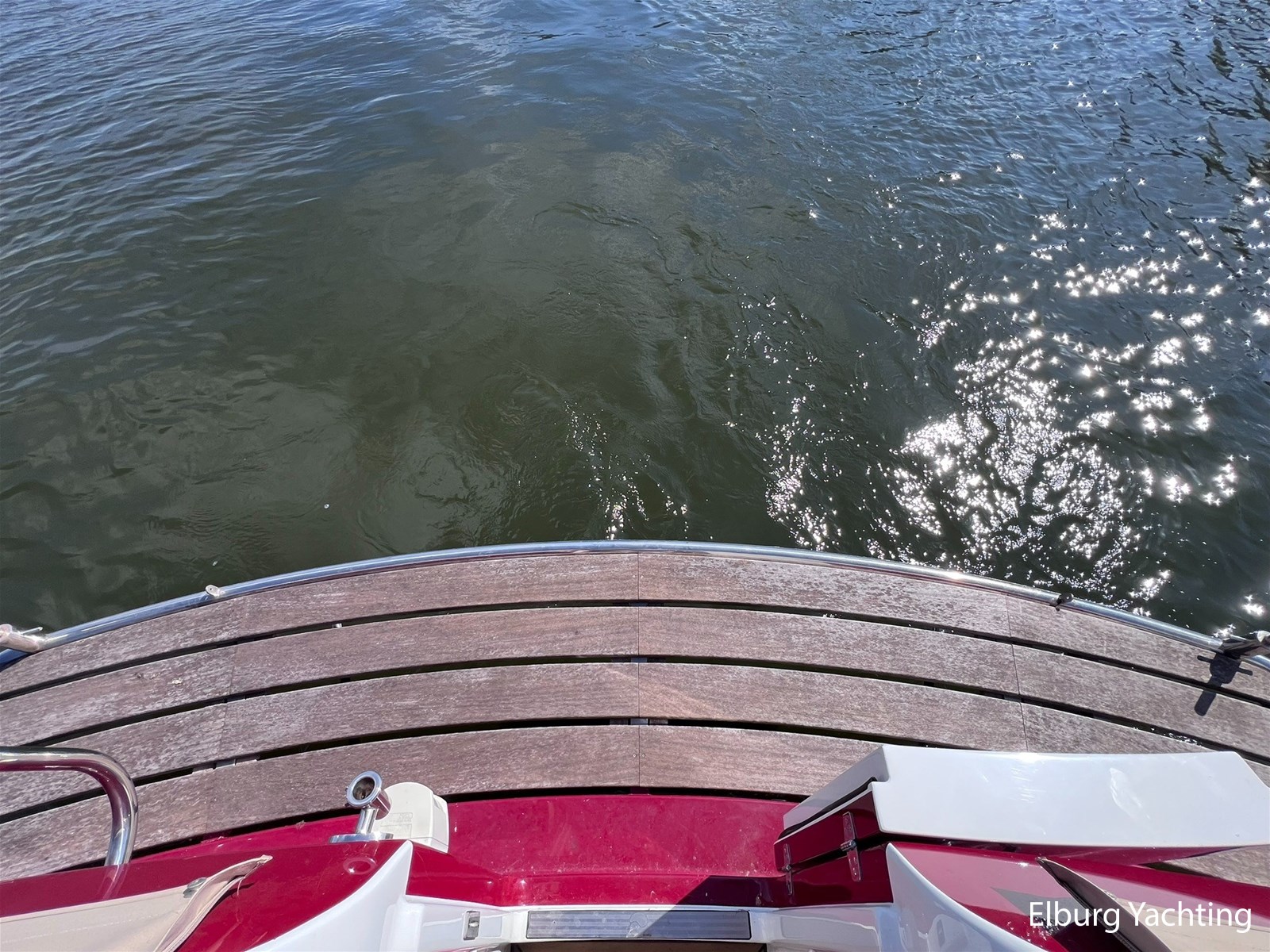

- Bathing platform
- Attached to hull + foldable bathing ladder
- Anchor winch
- Maxwell electric

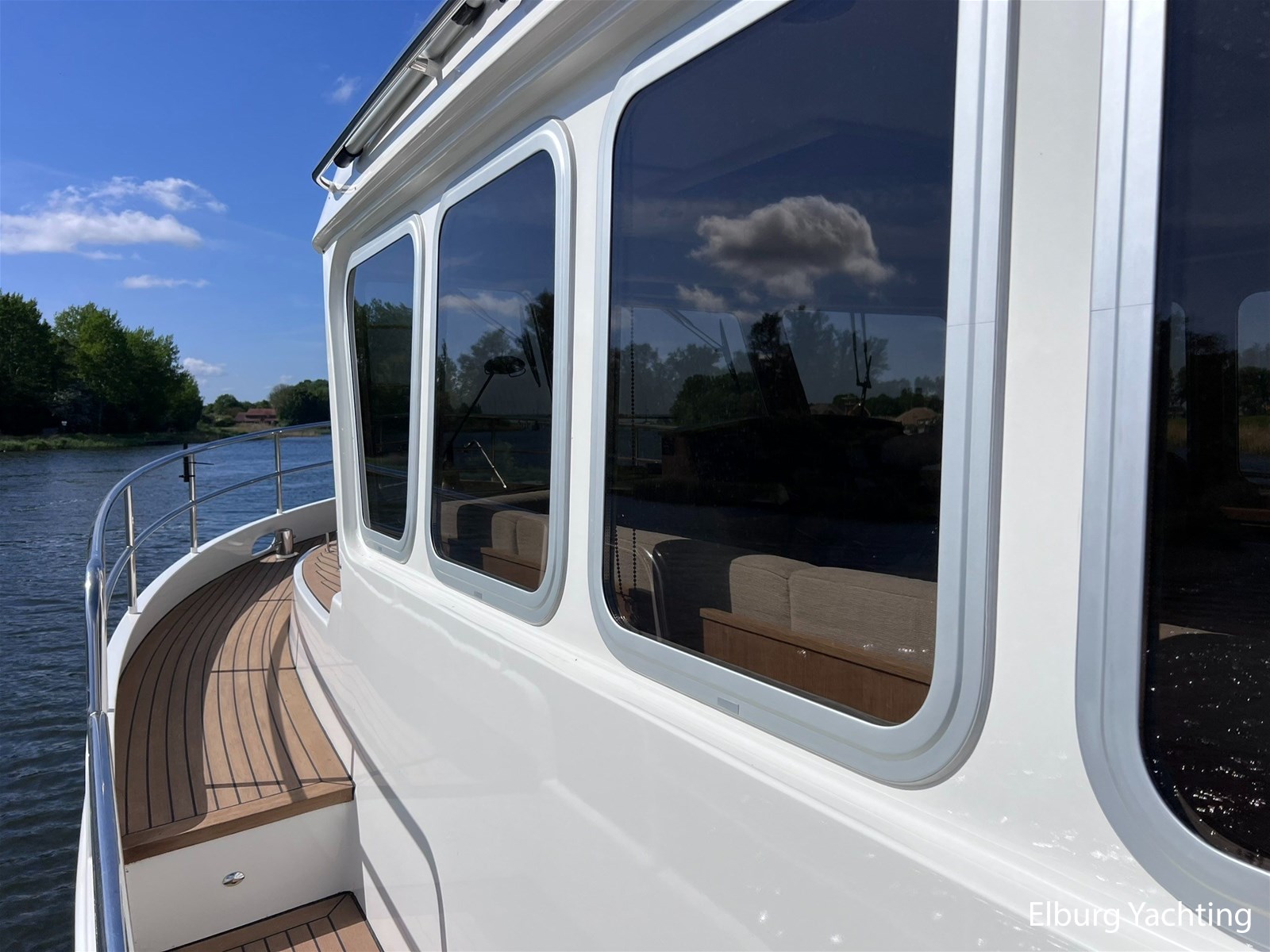

- Windowframes
- Double glassed windows
- Interior
- Ship interior with leather upholstery on the saloon en wheelhouse benches

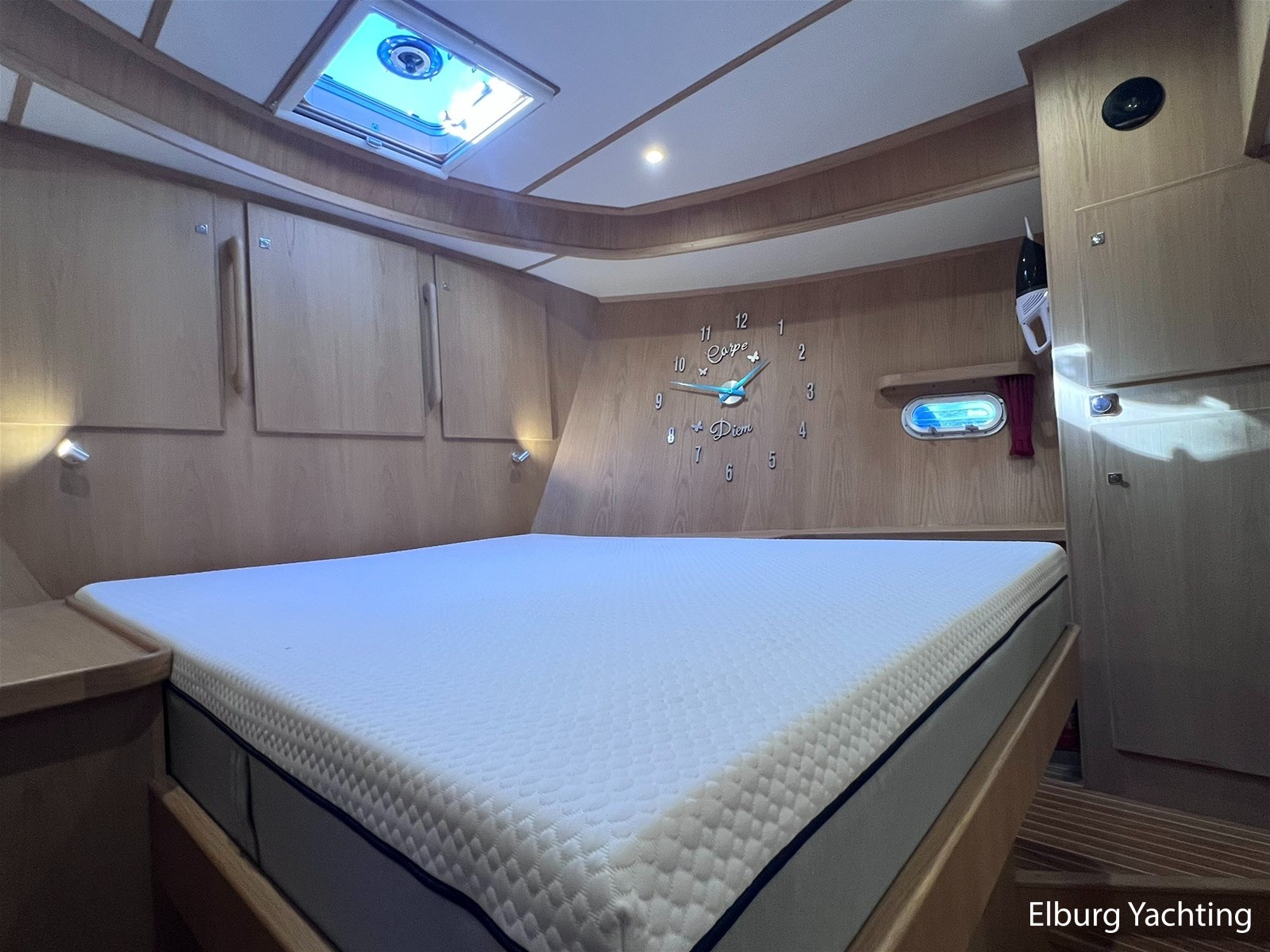

- Berth(s)

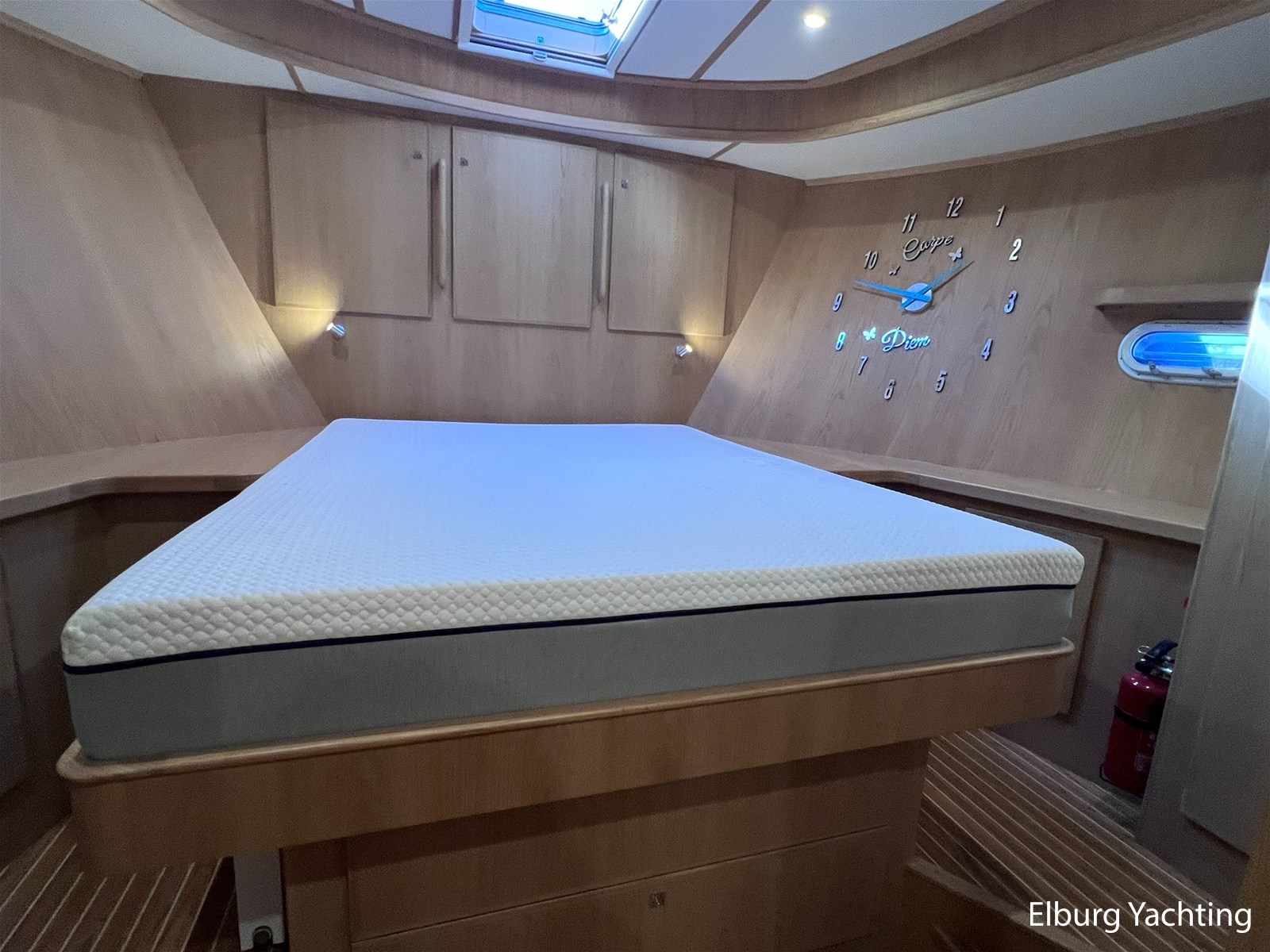

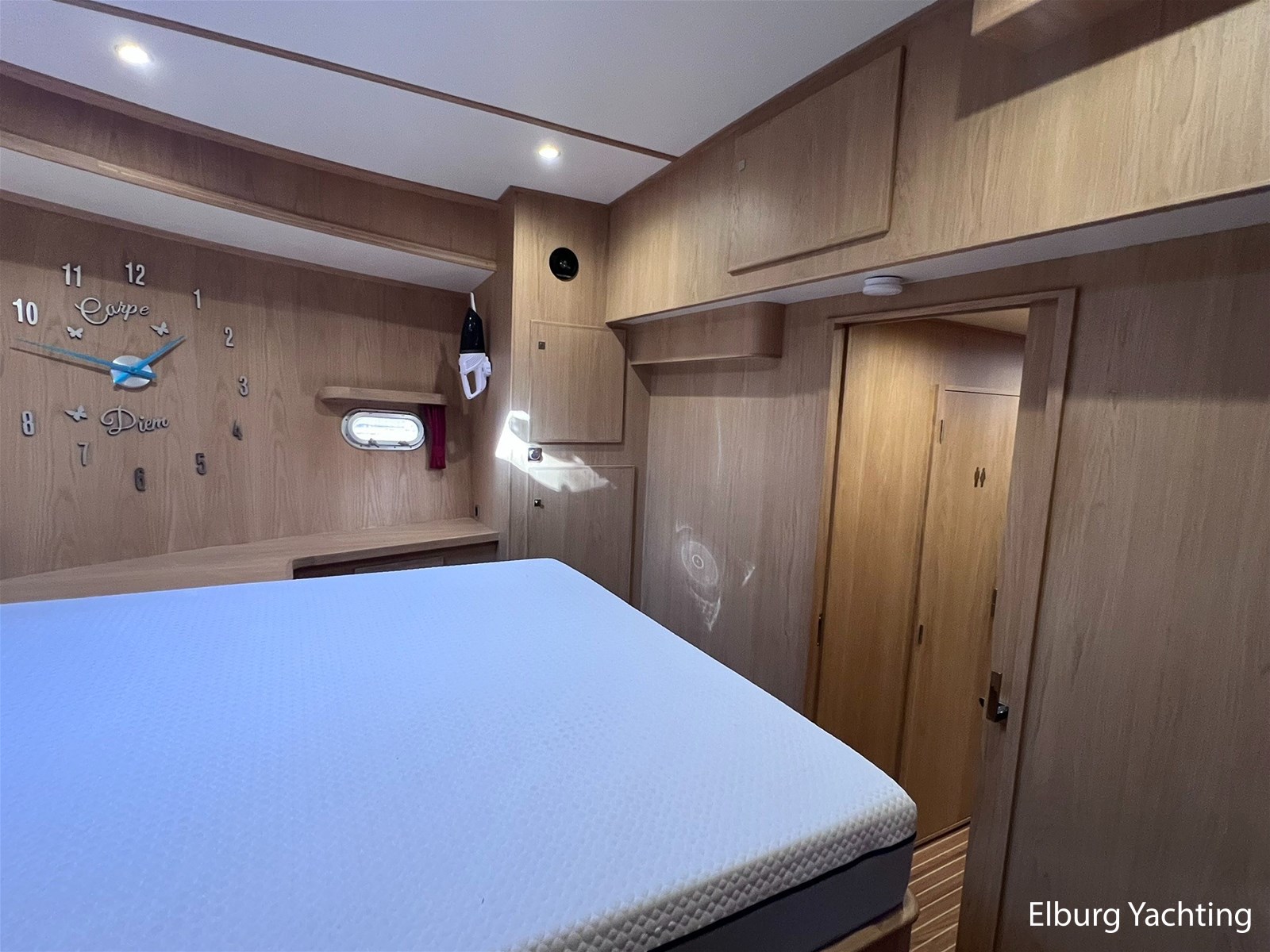

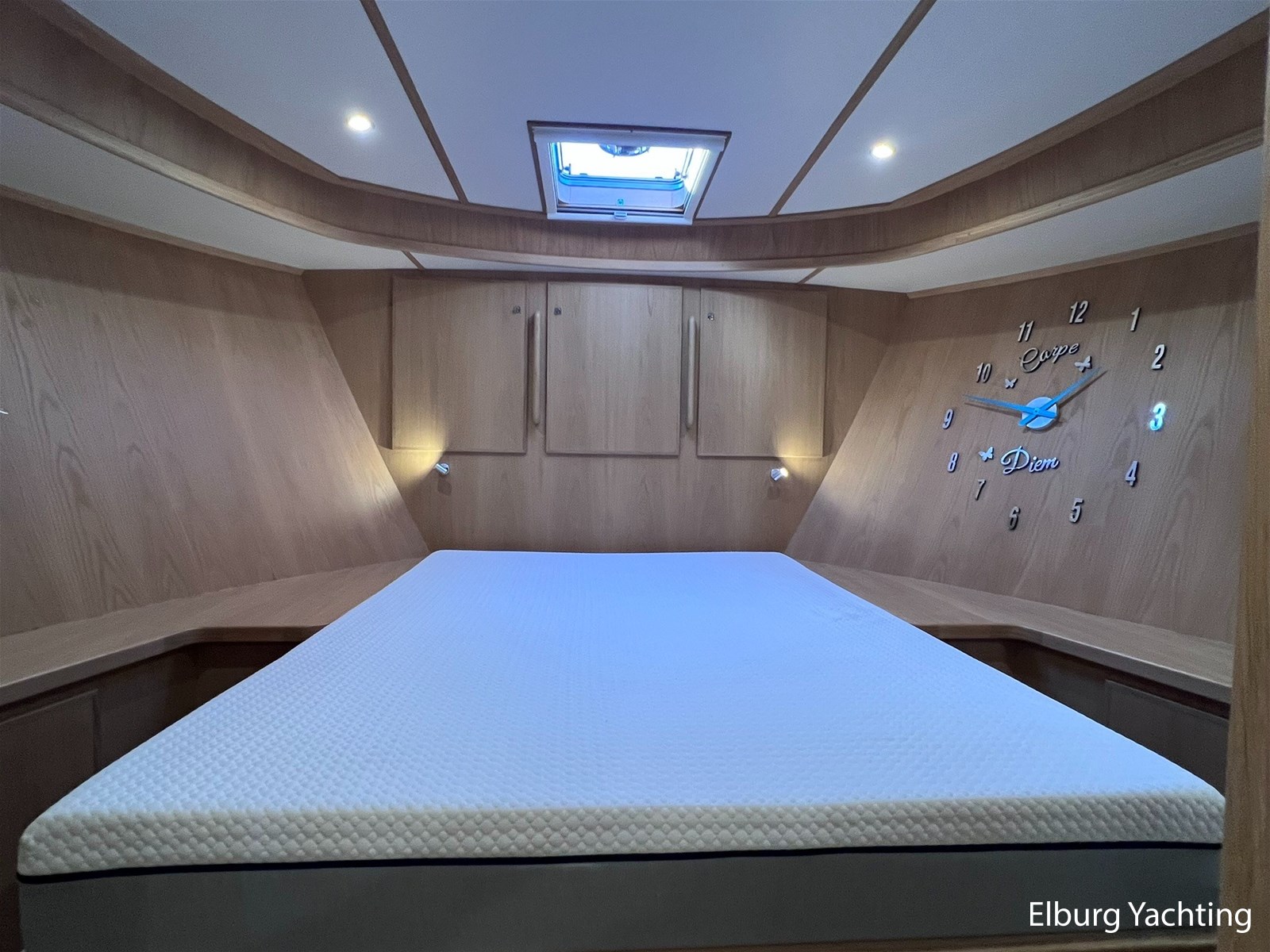

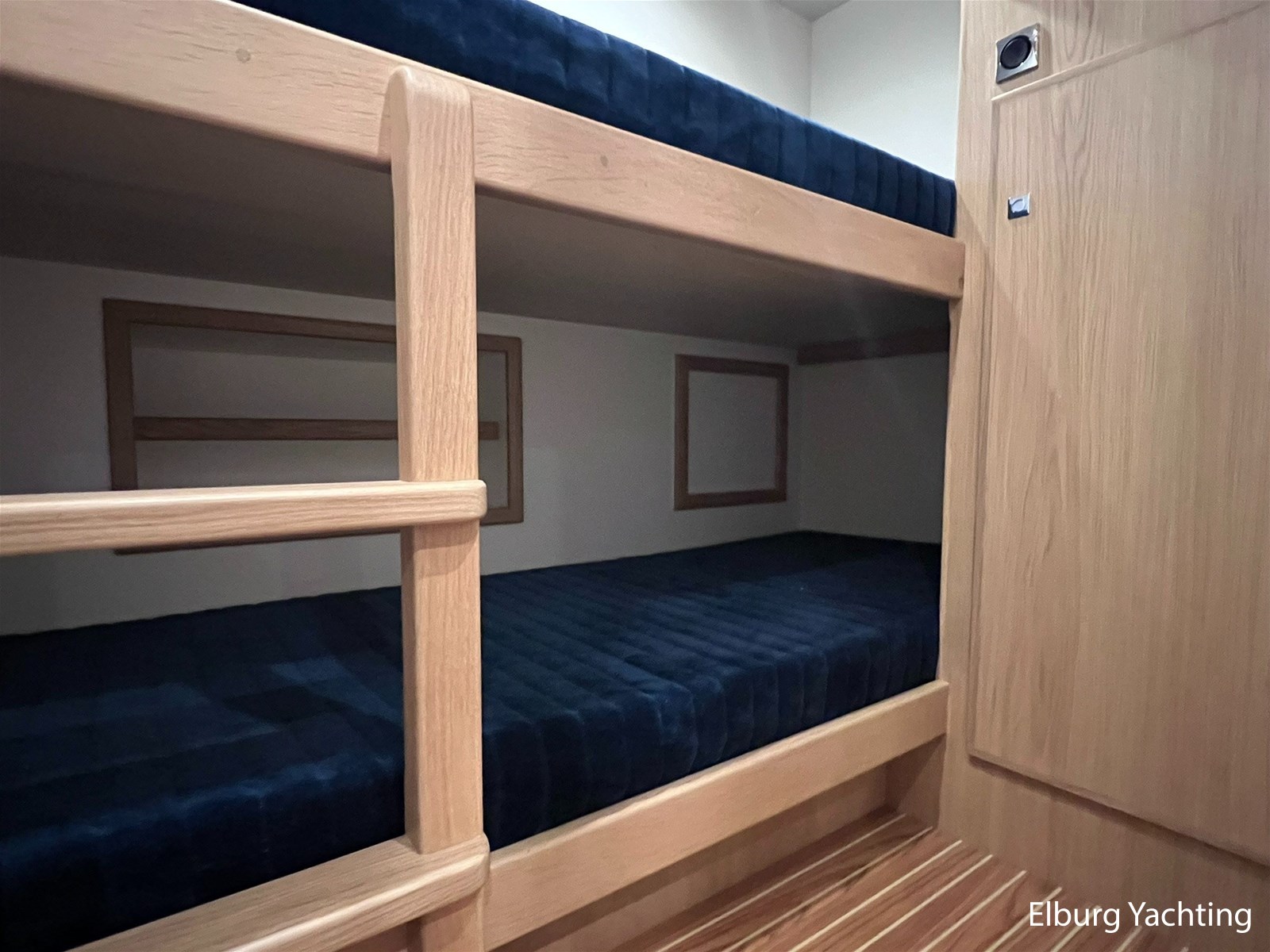

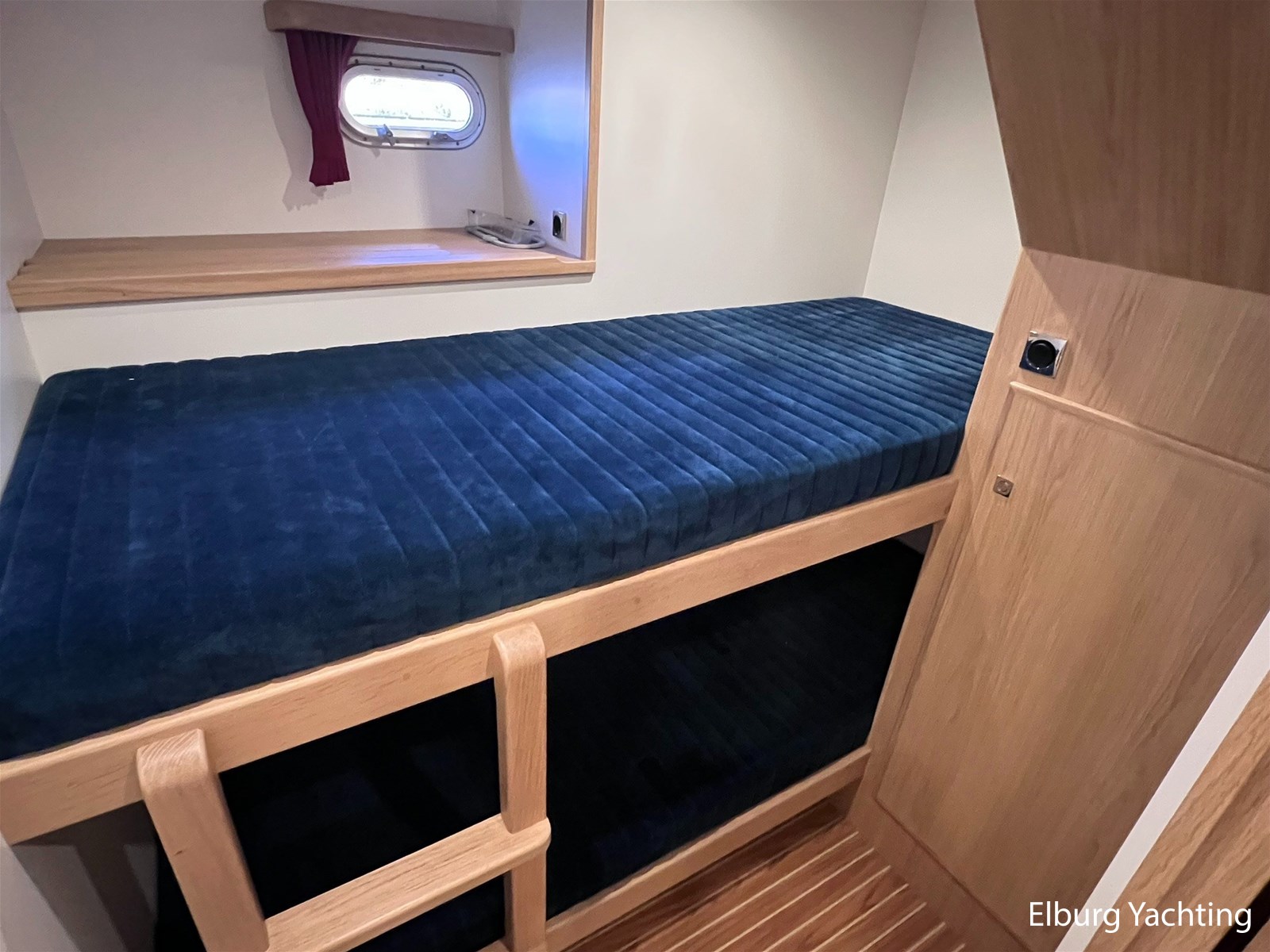

- 4 x fixed (1 x 2 pers. freestanding bed in front cabin + 2 x 1 pers. bunk bed) + 2 x 1 pers. fold-out bed in saloon
- Dinette
- 2 x (saloon +

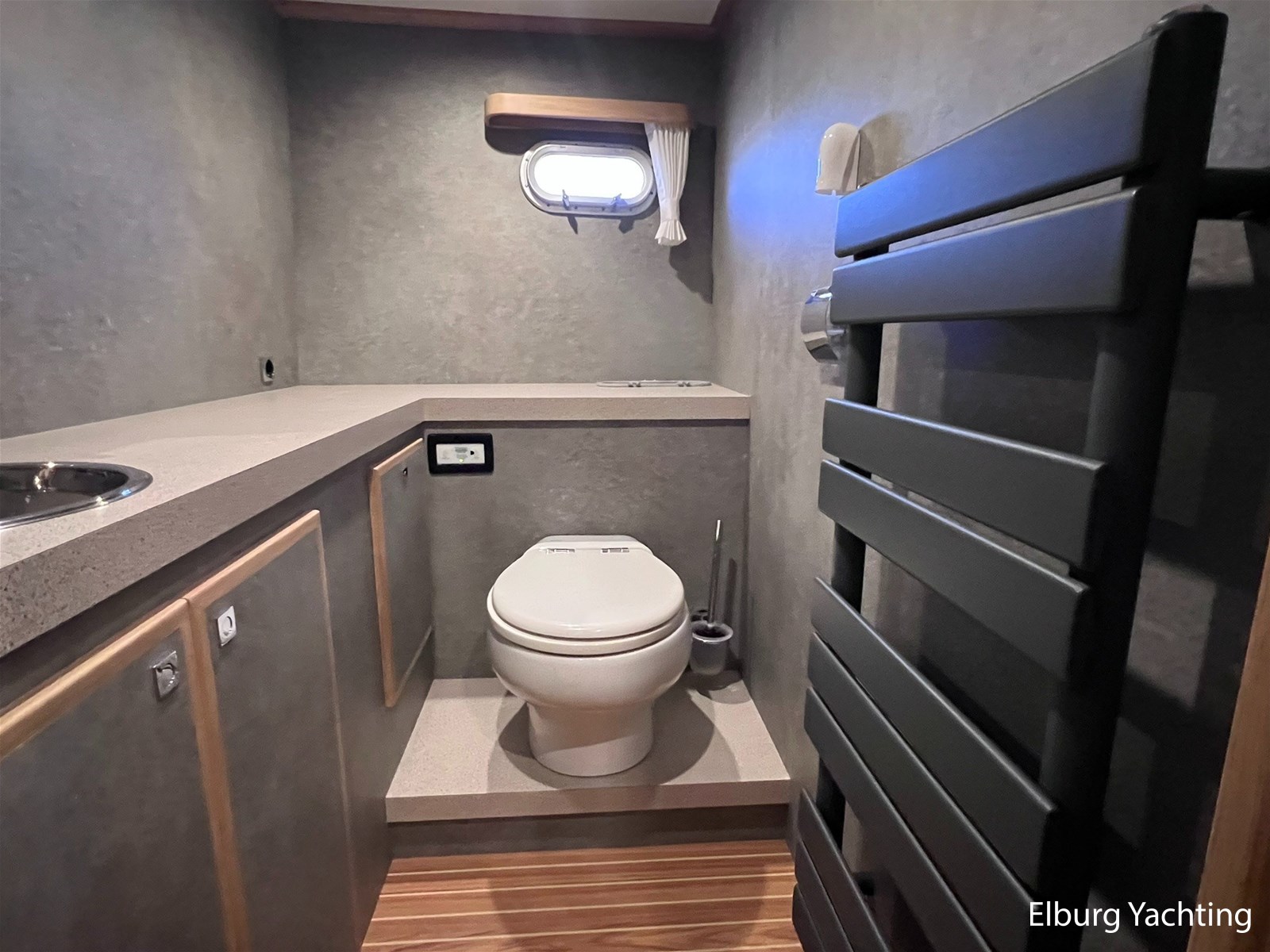

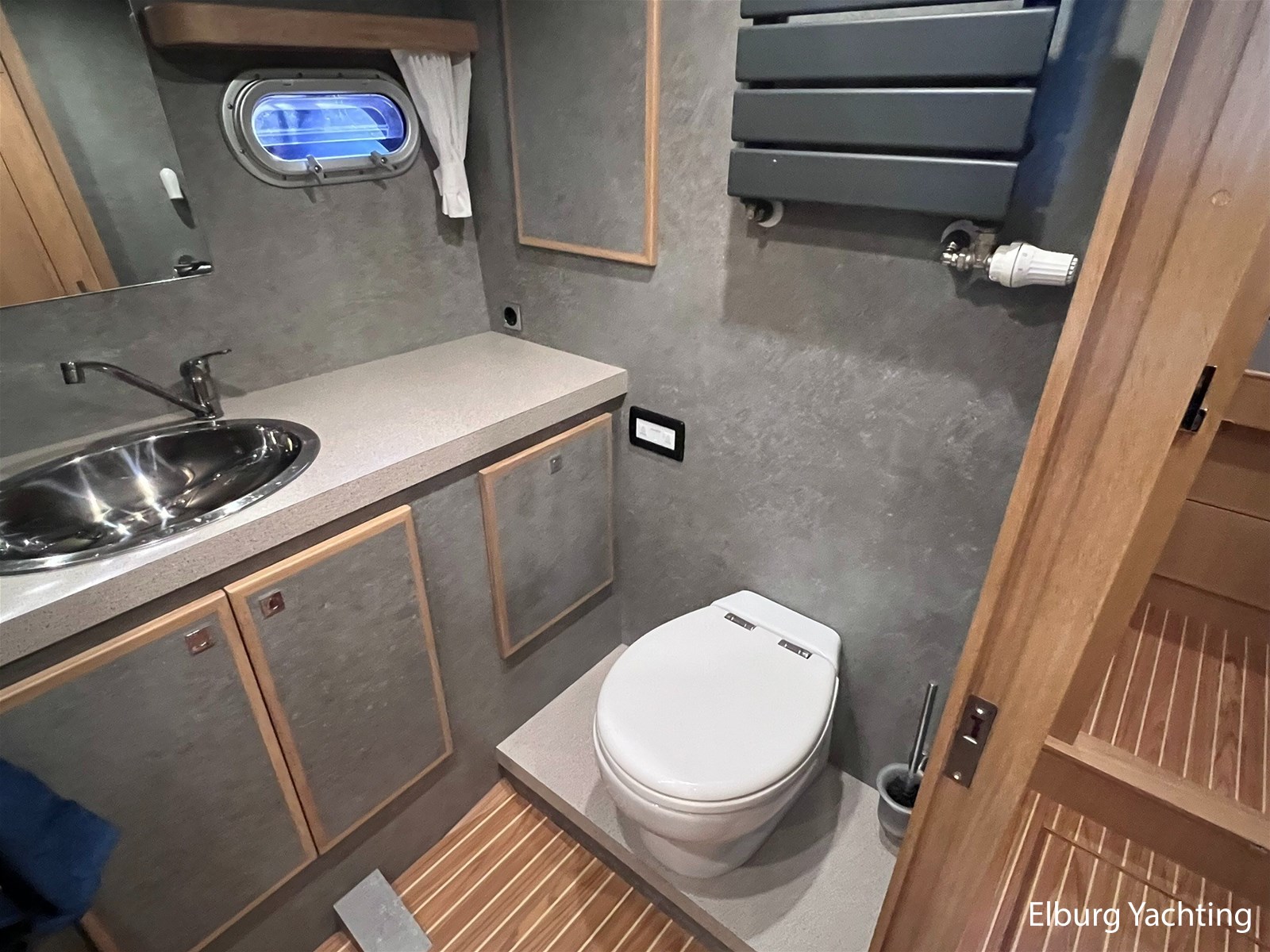

- Toilet
- 2 x Tecma electric

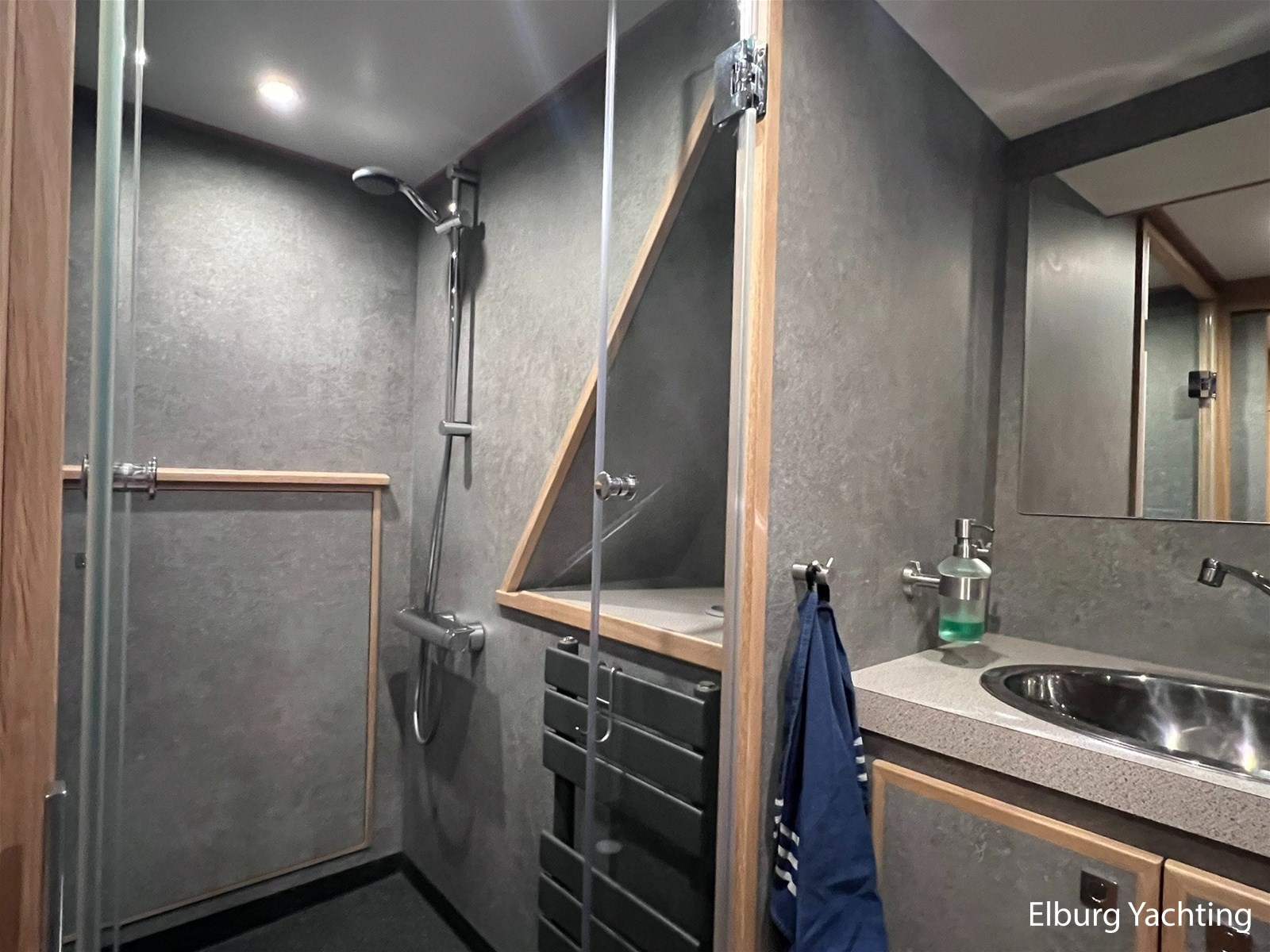

- Shower
- 1 x spacious shower cabin + 1 x outdoor at bathing platform
- Water capacity
- Appr. 800 litres
- Holding tank
- Appr. 300 litres

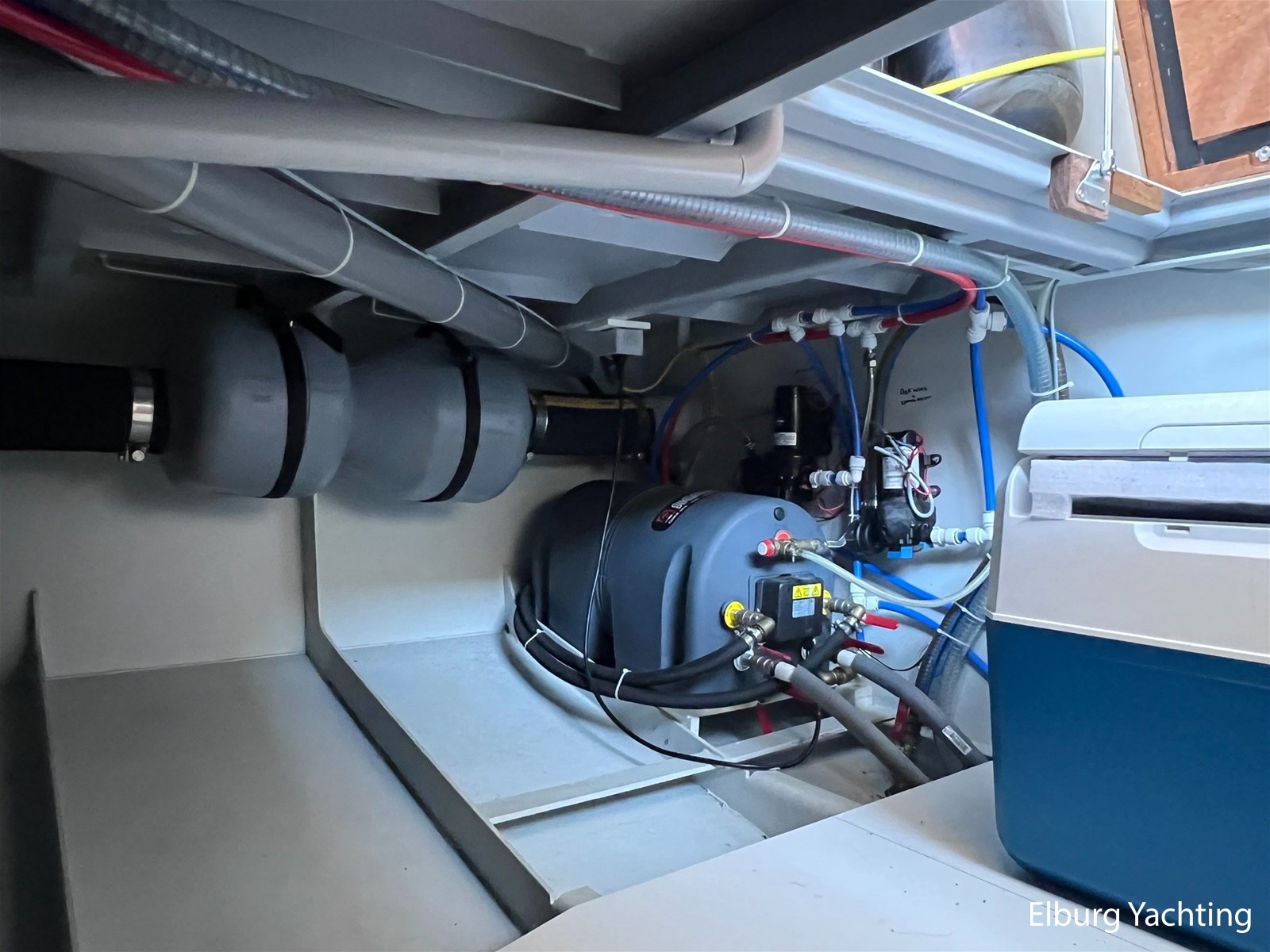

- Hot water system
- Via boiler (220V / Engine)
- Heating system

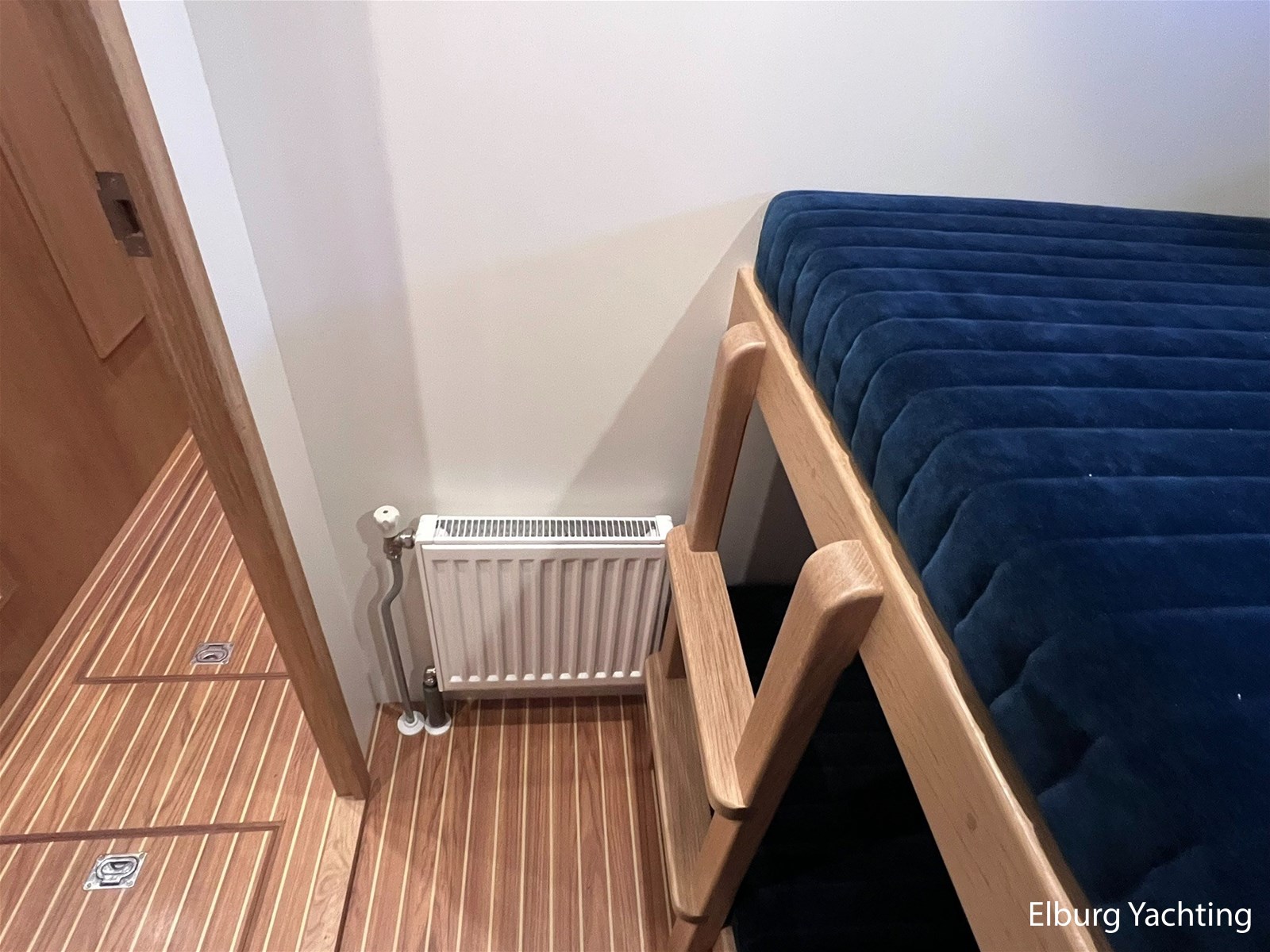

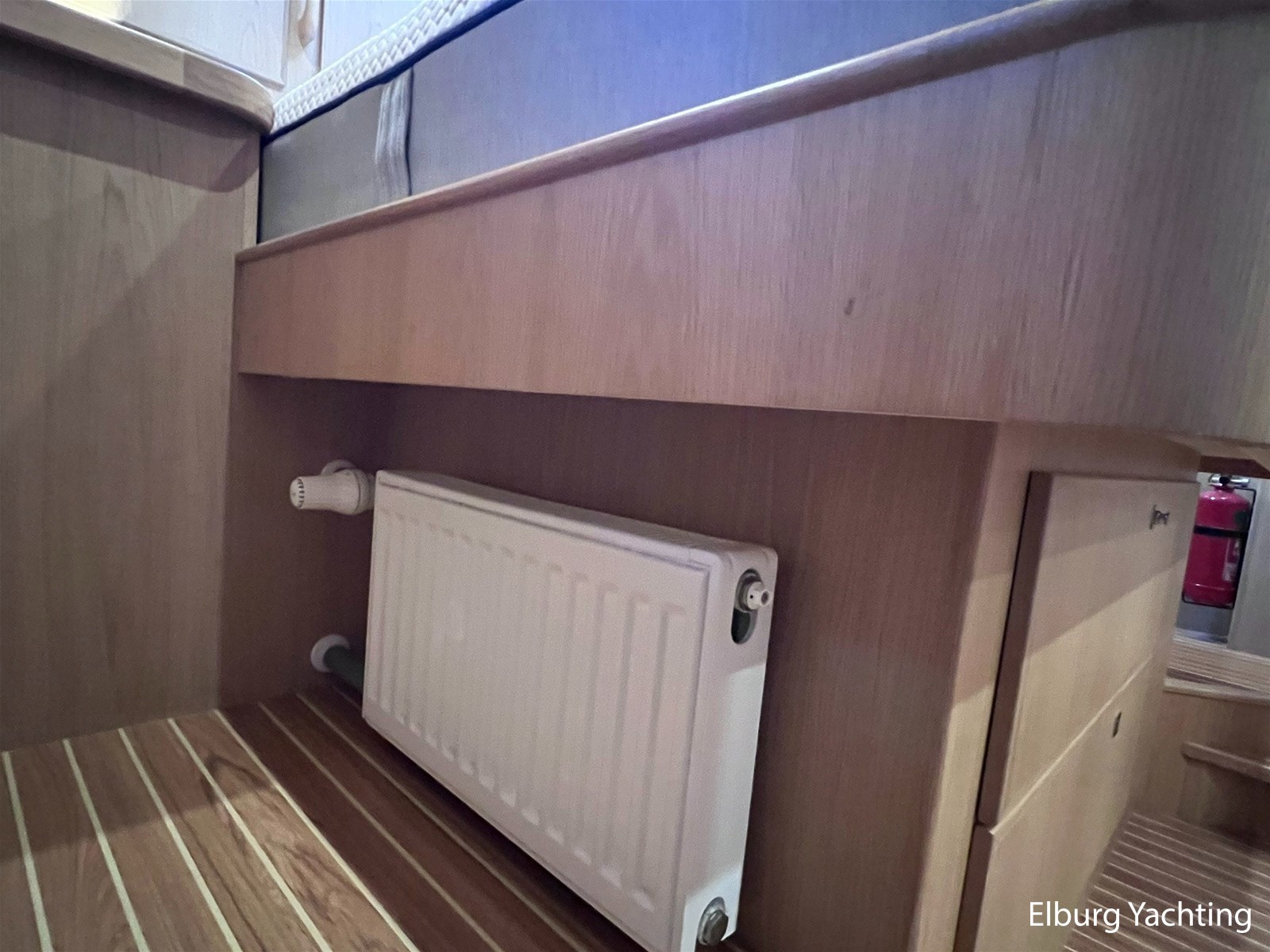

- Eberspächer Hydronic D10W heating by radiators throughout entire ship

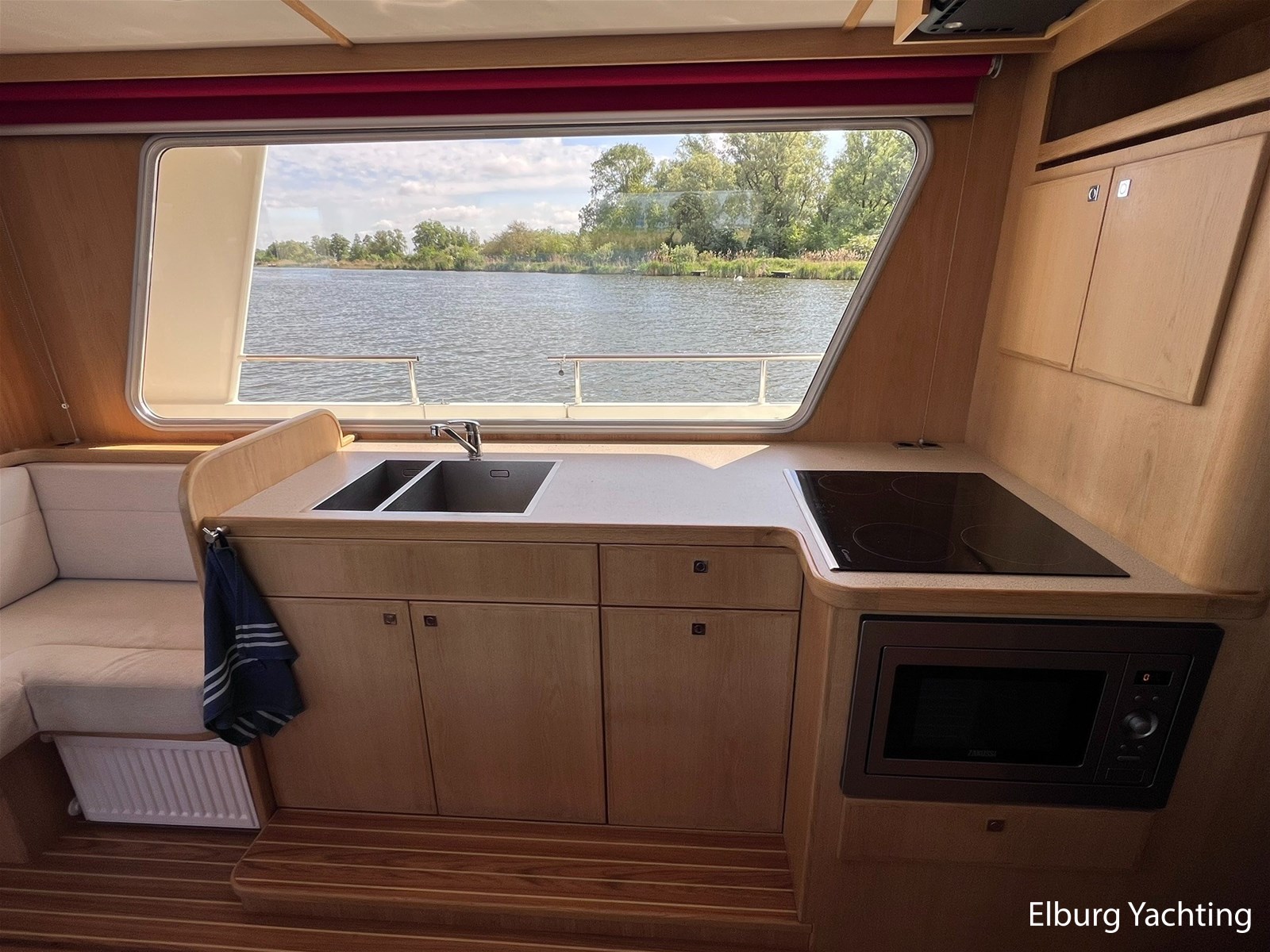

- Cooking system
- 4 zone electric + extractor hood
- Microwave/oven
- Grill / magnetron combi
- Fridge

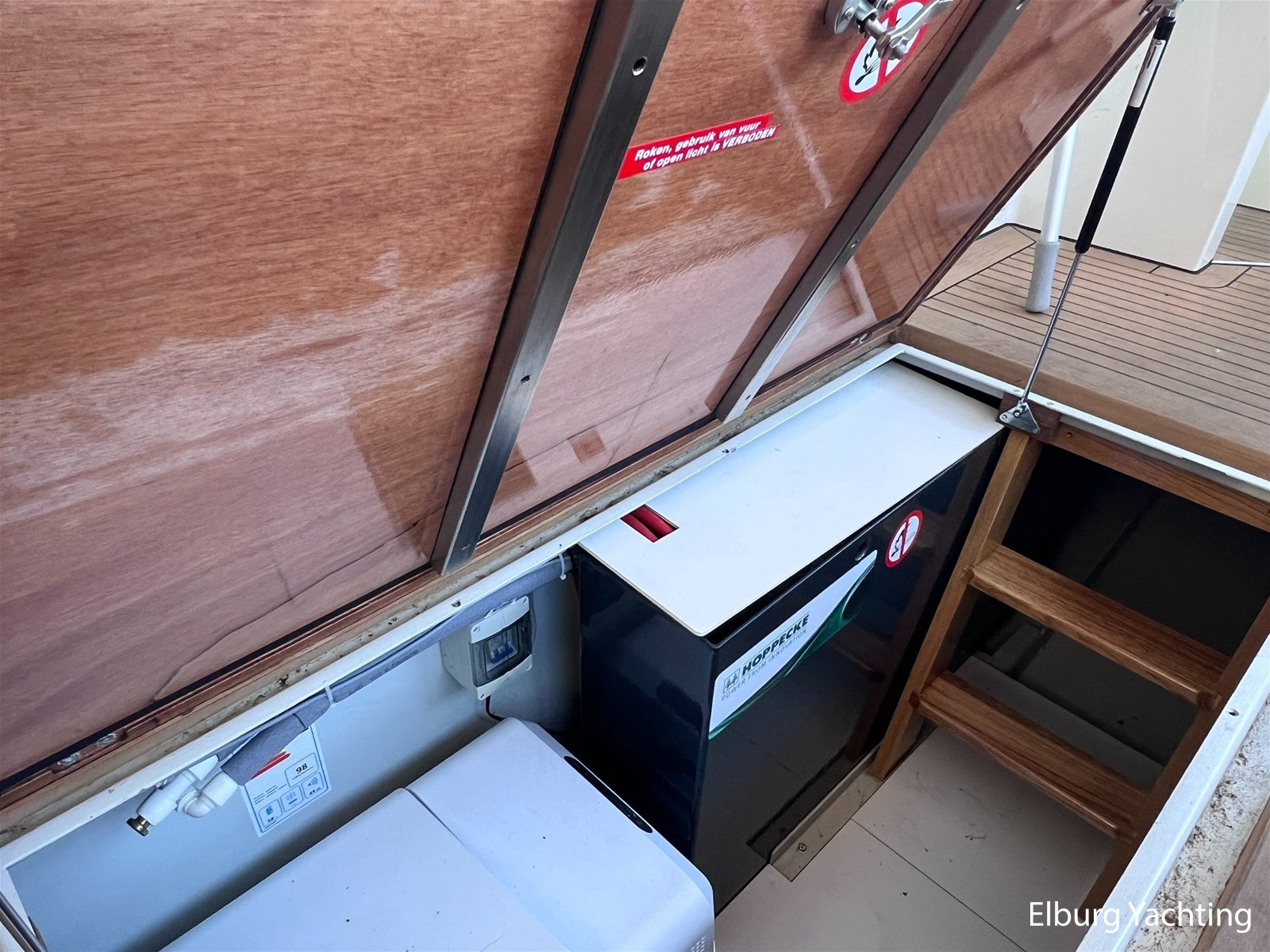

- Fridge/freezer box in storage open cockpit + space available for placing a fridge in galley/saloon
- Compass
- Via plotter
- Log
- Raymarine i70
- Echosounder
- Raymarine i70
- VHF
- Raymarine
- Autopilot
- Raymarine p70Rs + remote
- G.P.S.
- Raymarine
- Plotter
- Raymarine Axiom 12 + Axiom 9 on flybridge
- Engine hours
- Appr. 135 hours
- Fuel capacity
- Appr. 800 litres
- Gear box
- ZF hydraulic + thuster bearing + EMC
- Bow thruster
- Vetus electric + remote
- Stern thruster
- Vetus electric + remote
- Electricity
- 12 + 24 + 220V

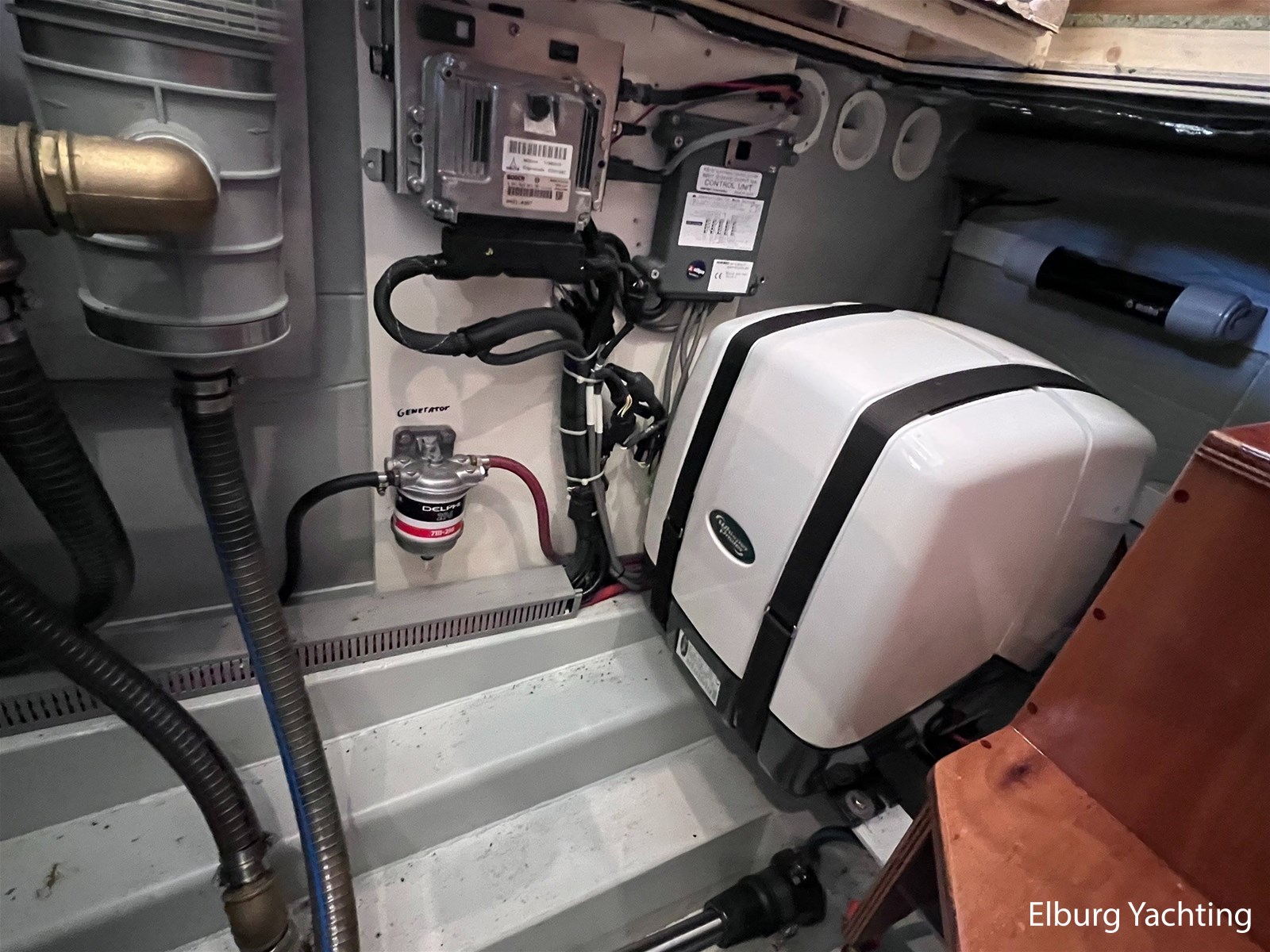

- Generator
- WhisperPower Piccolo 4kW
- Shorepower
- Present + shore cable
- Inverter
- Victron Quattro
- Battery charger
- Victron Quattro
- Batteries
- 12 x 2V 1000Ah board system + 2 x bow thruster + 2 x stern thruster + 1 x start
